Compression Check: Specifications

AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.

The indicated compression pressures are considered within specification if the lowest reading cylinder is within 75 percent of the highest reading.

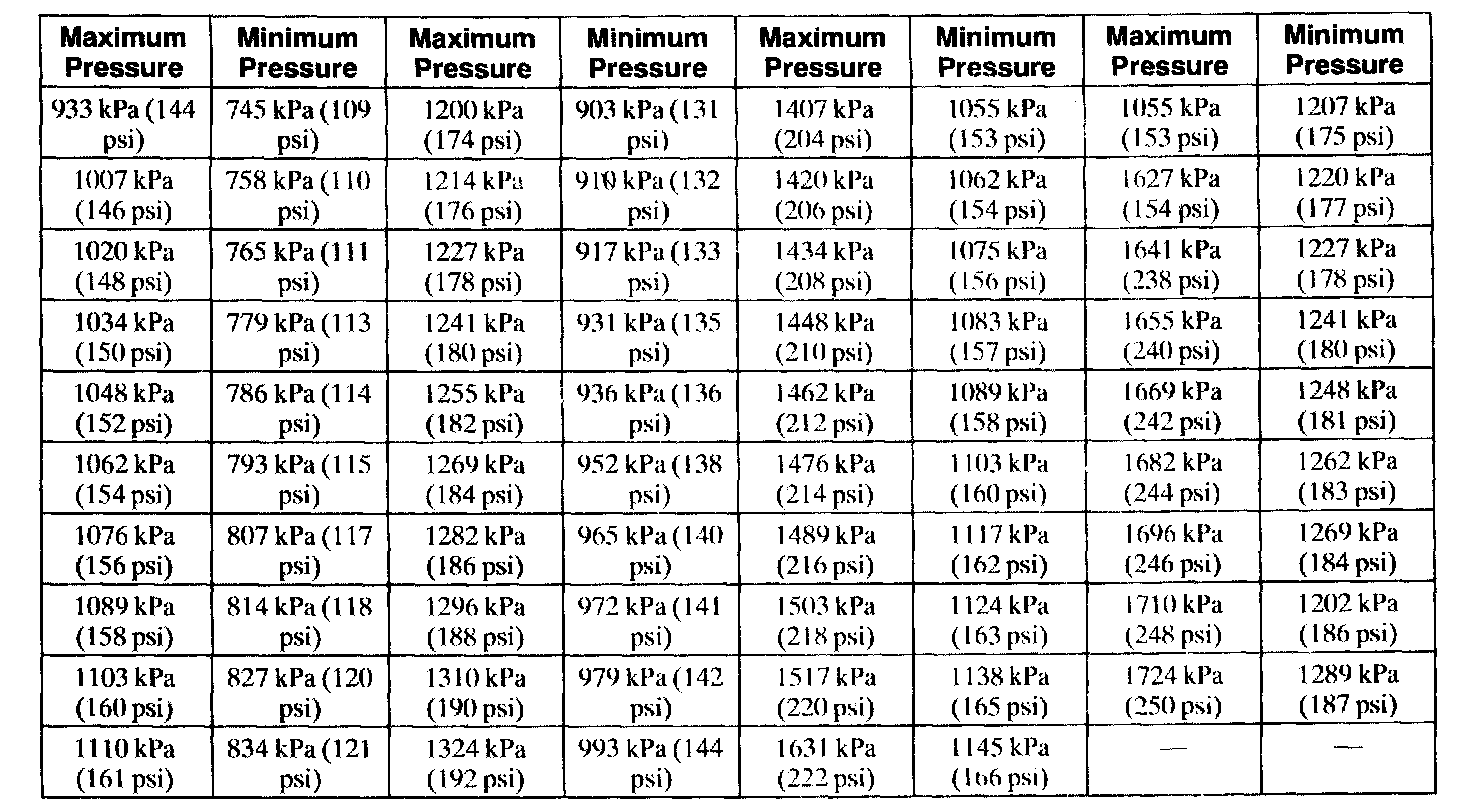

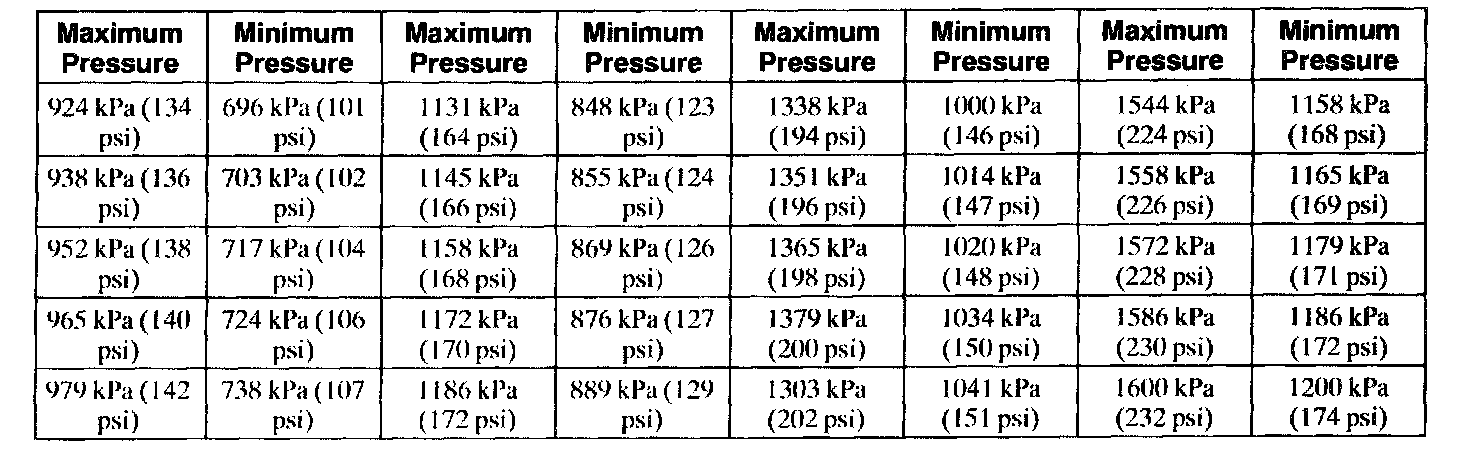

Compression Pressure Limit Chart
