Home >> Ford >> 2001 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box >> Fuse Panel/Circuit Protection

Fuse Panel/Circuit Protection

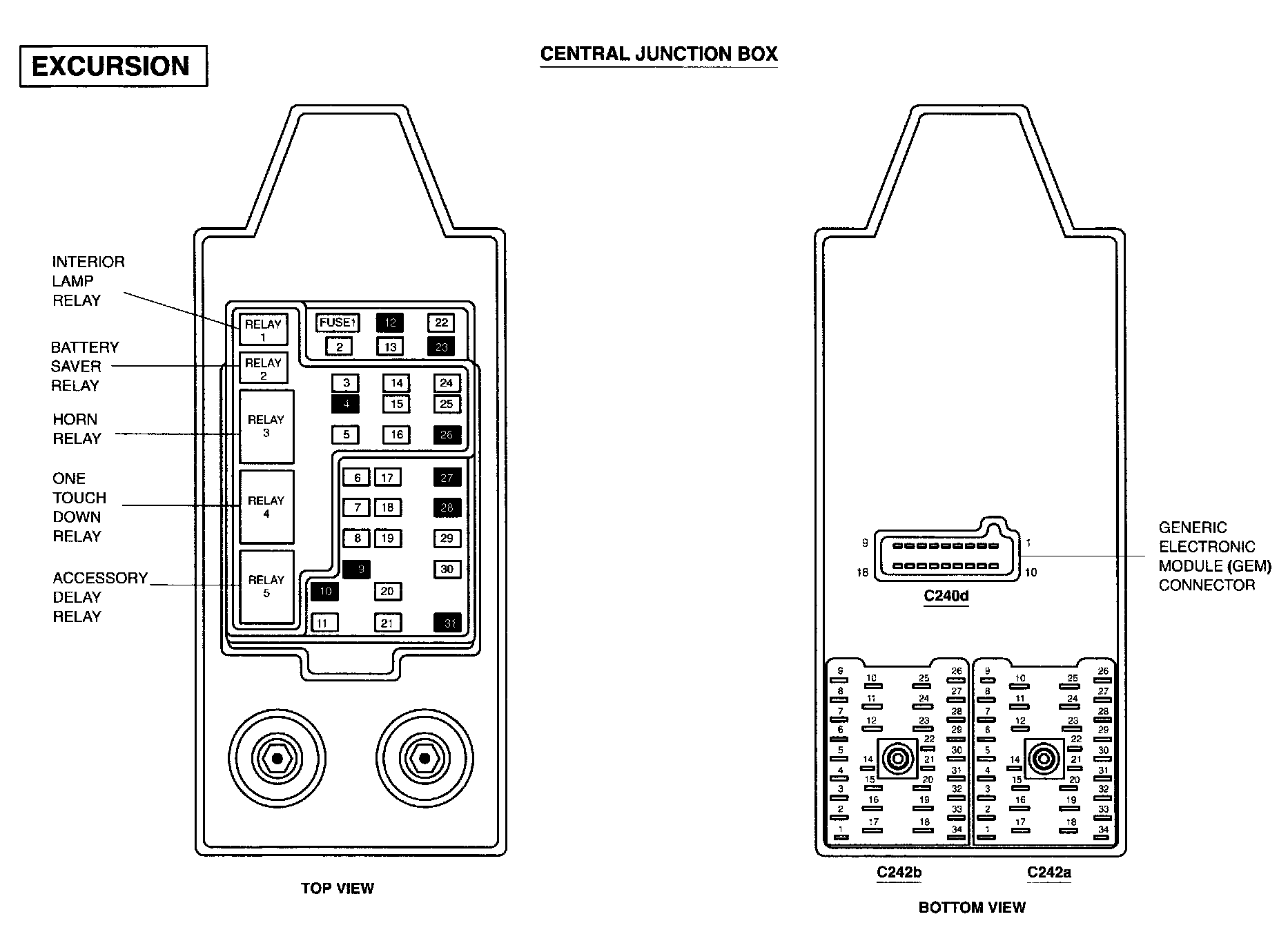

Part 1:

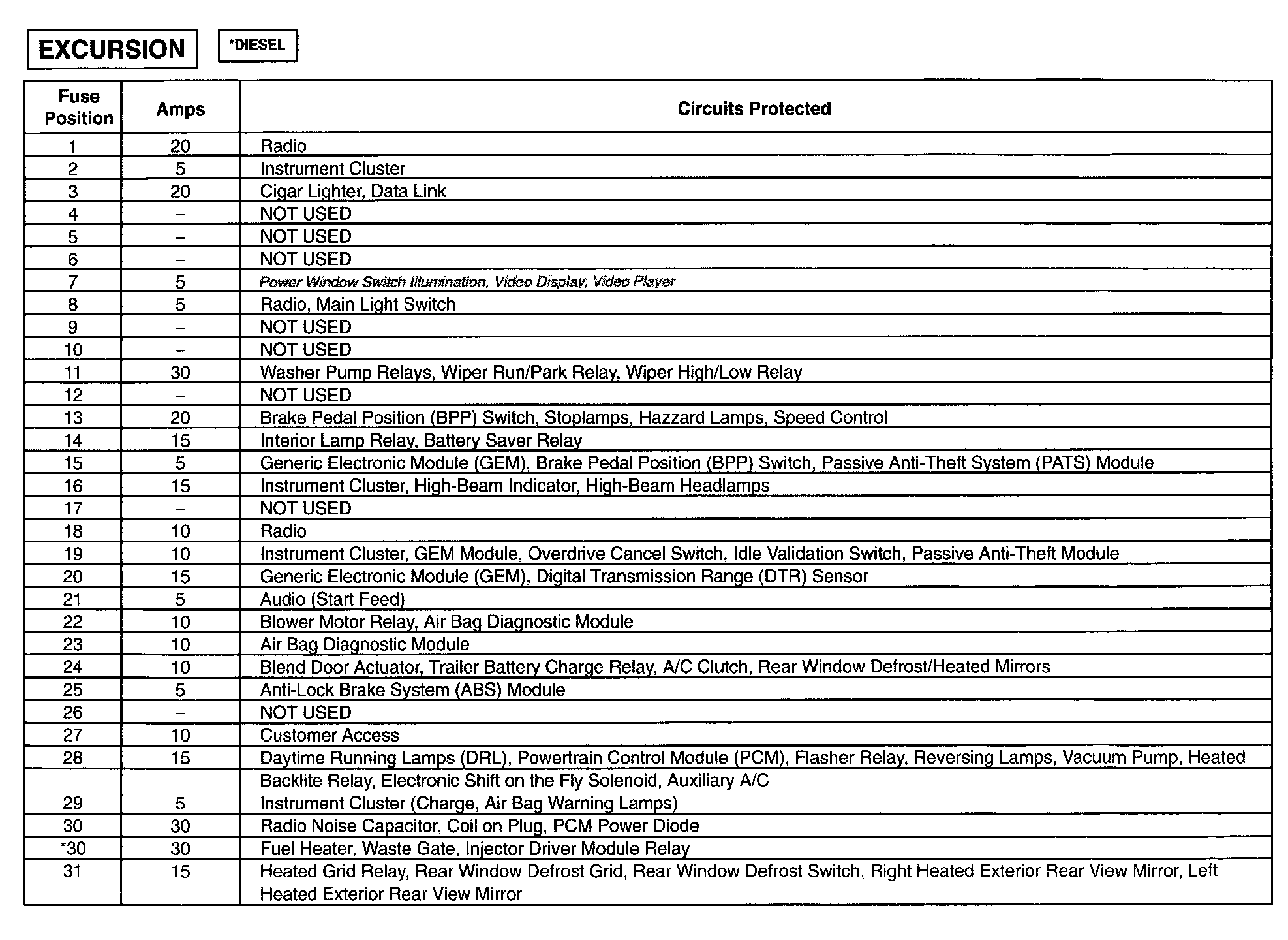

Part 2:
