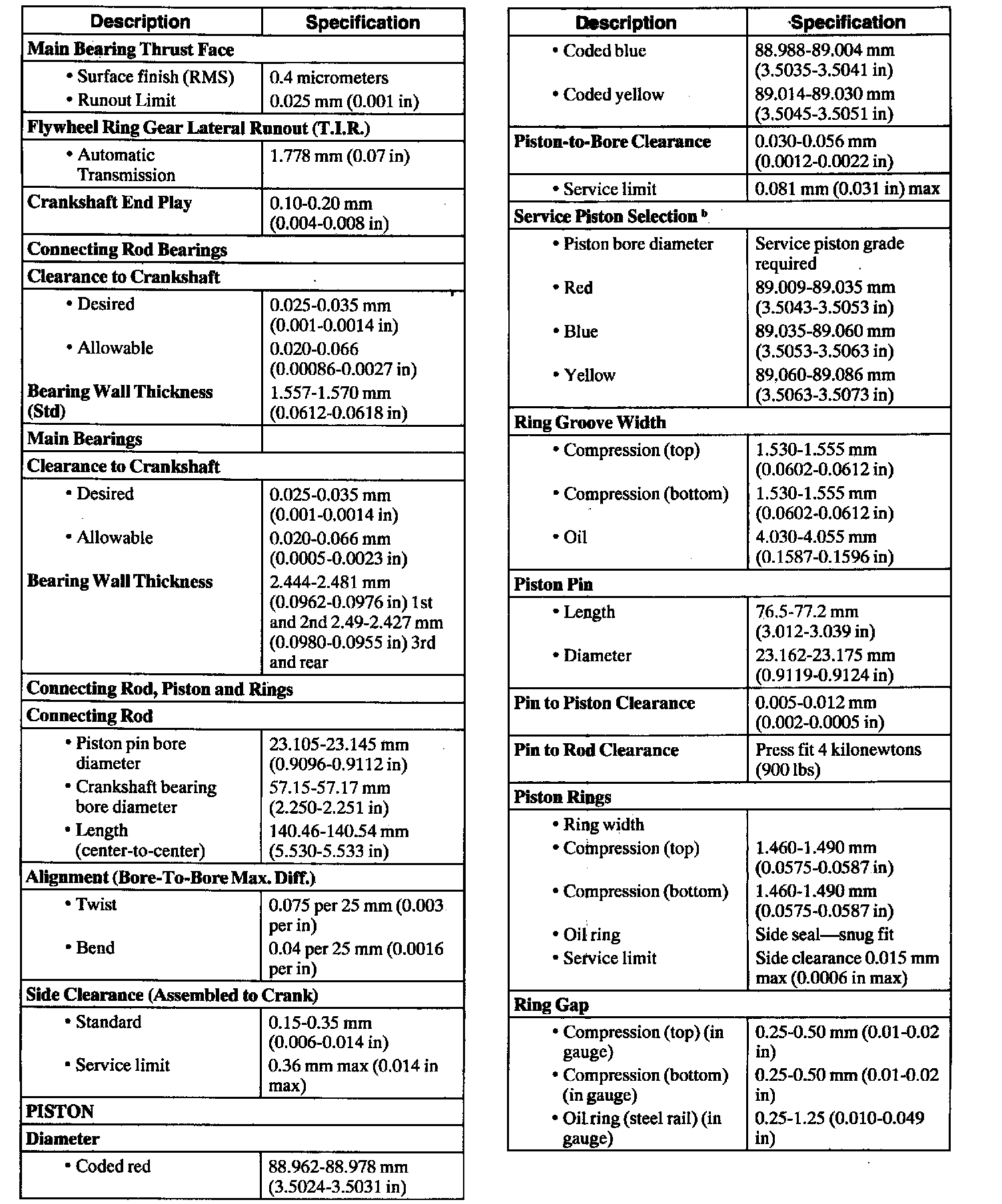

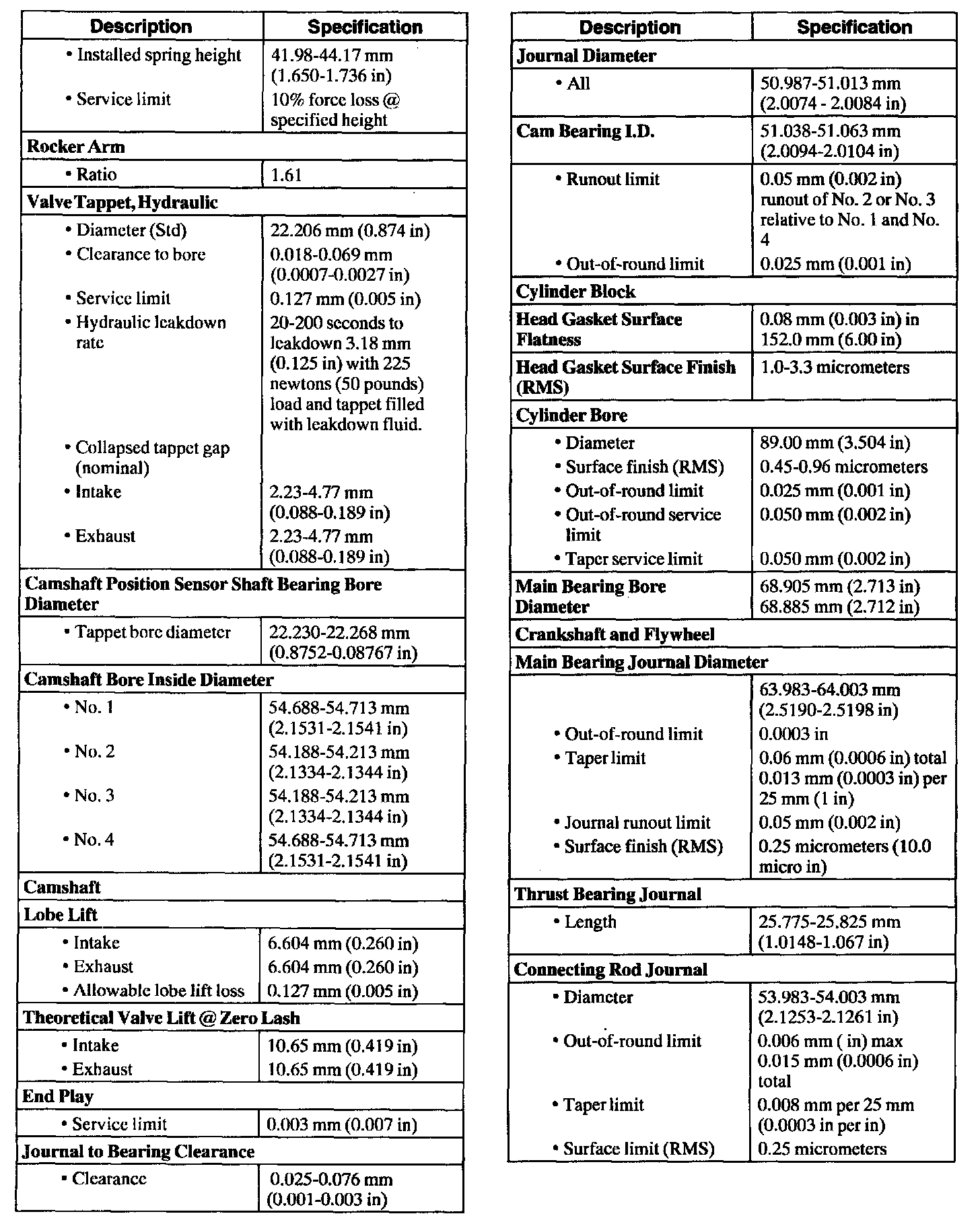

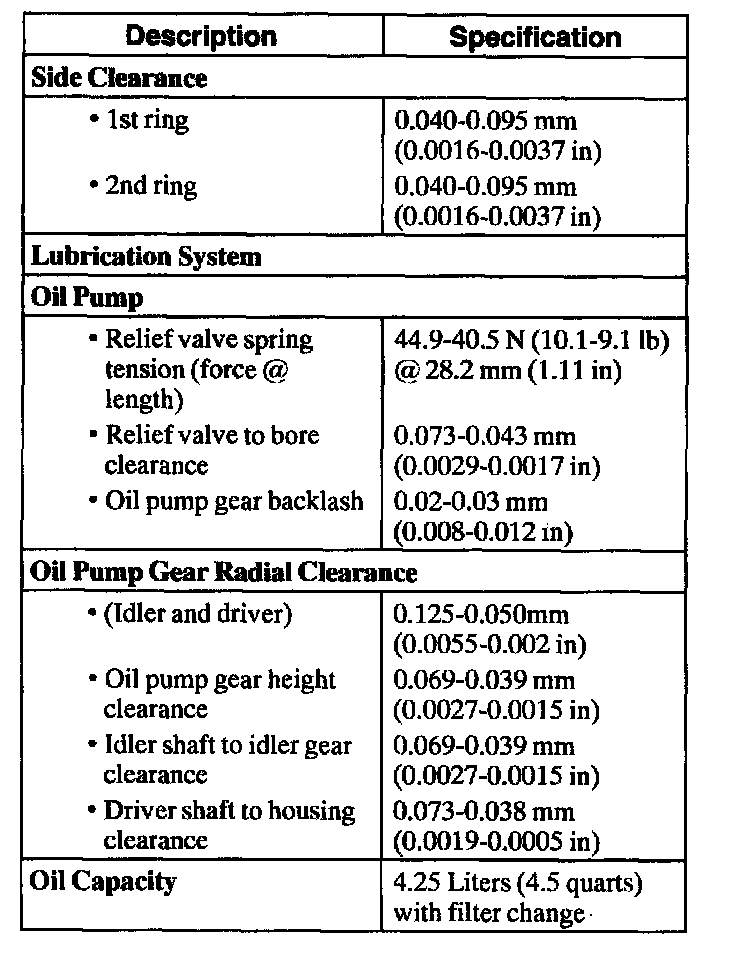

Engine General Specifications
1 of 4
2 of 4
3 of 4
4 of 4
Footnote:
b When replacing pistons, measure the cylinder bore as described in the applicable procedures at Engine; Service and Repair. Install the indicated service piston.
1 of 4
2 of 4
3 of 4
4 of 4
Footnote:
b When replacing pistons, measure the cylinder bore as described in the applicable procedures at Engine; Service and Repair. Install the indicated service piston.
