Home >> Ford >> 2000 >> Explorer 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

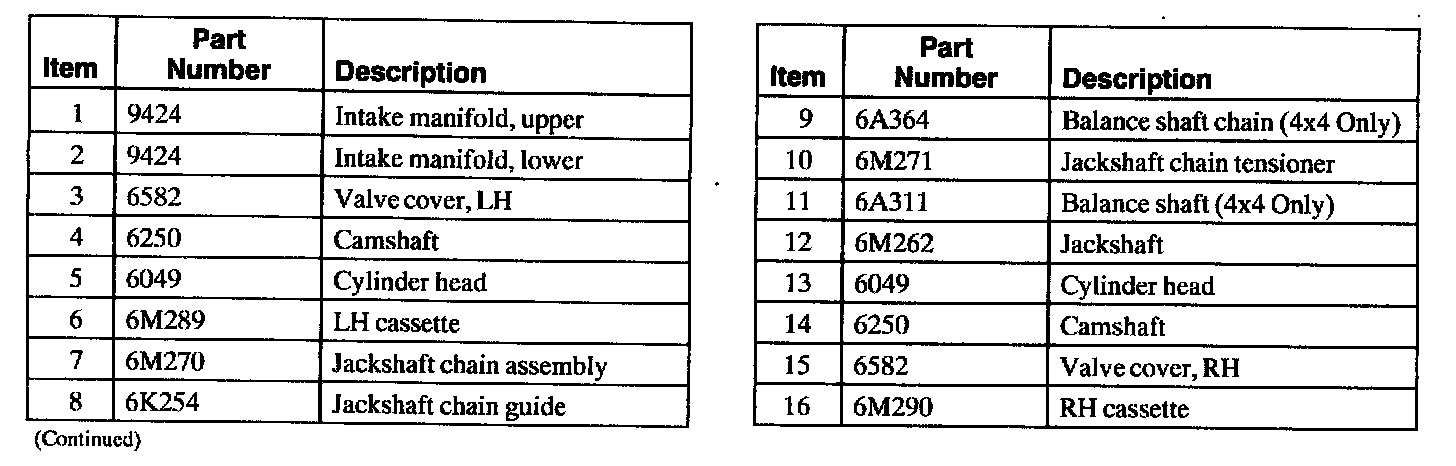

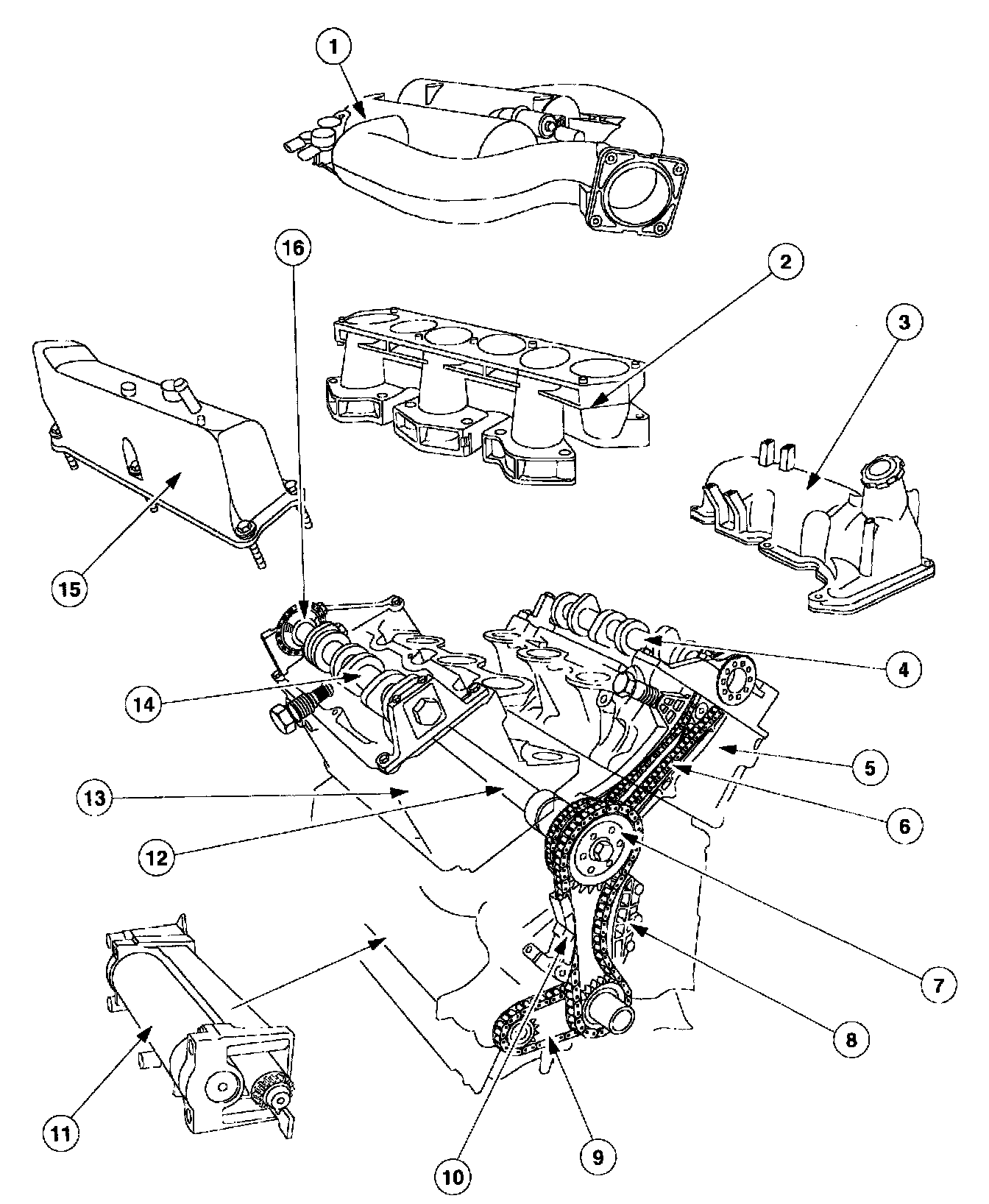

Upper End - 40L SOHC Engine

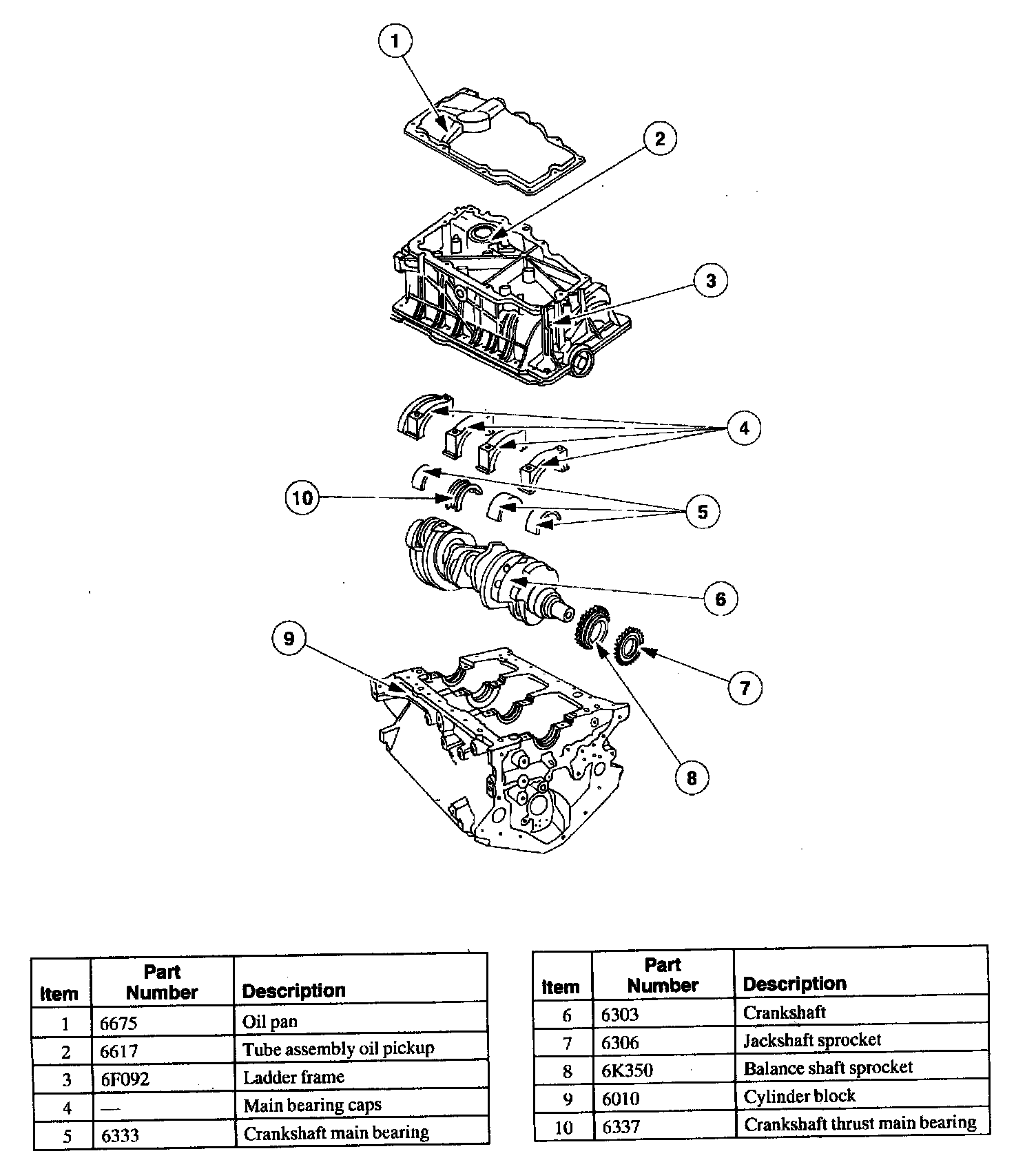

Lower End - 4.0L SOHC Engine
