Home
>>
Ford
>>
2000
>>
Excursion 4WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Window Control Switch
>>
Right
>>
Front
Front

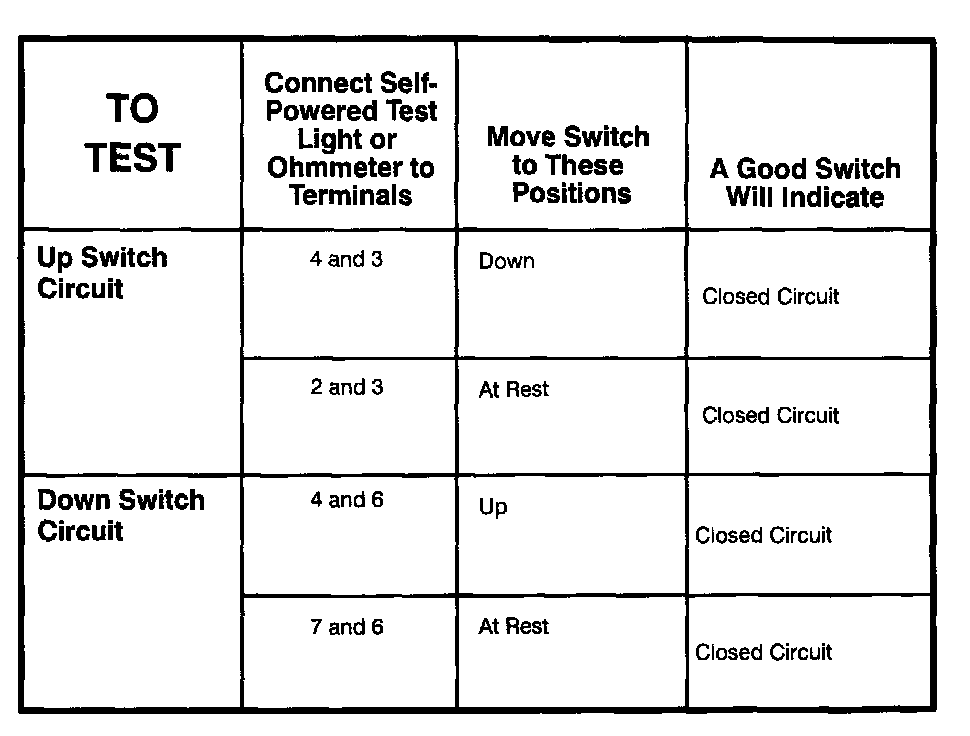

Component Testing Procedure:
Terminals:

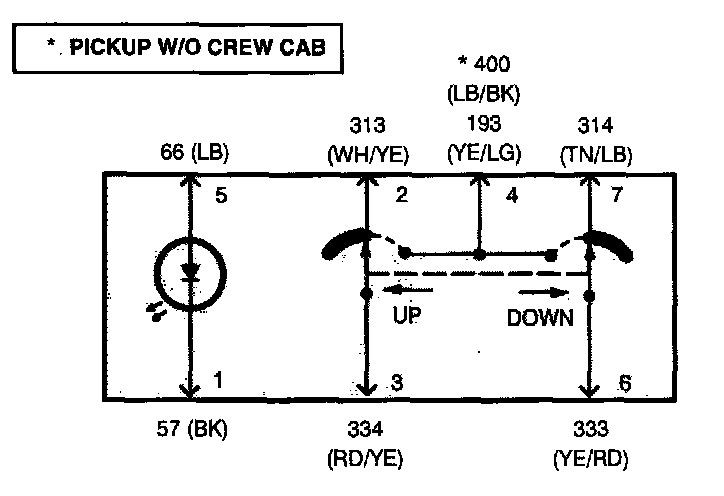

Schematic:
