Home >> Ford >> 2000 >> Excursion 2WD V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

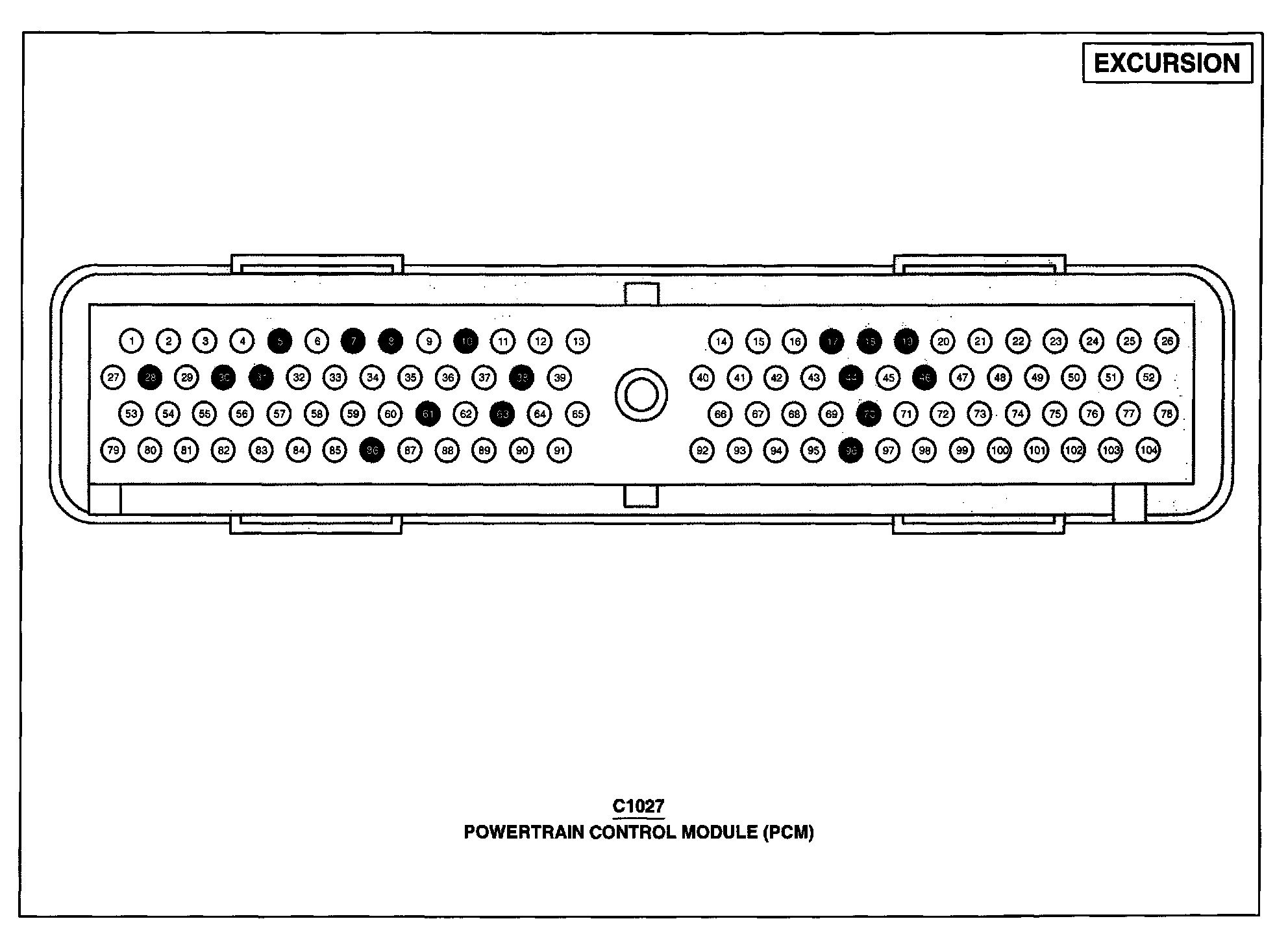

Engine Control Module

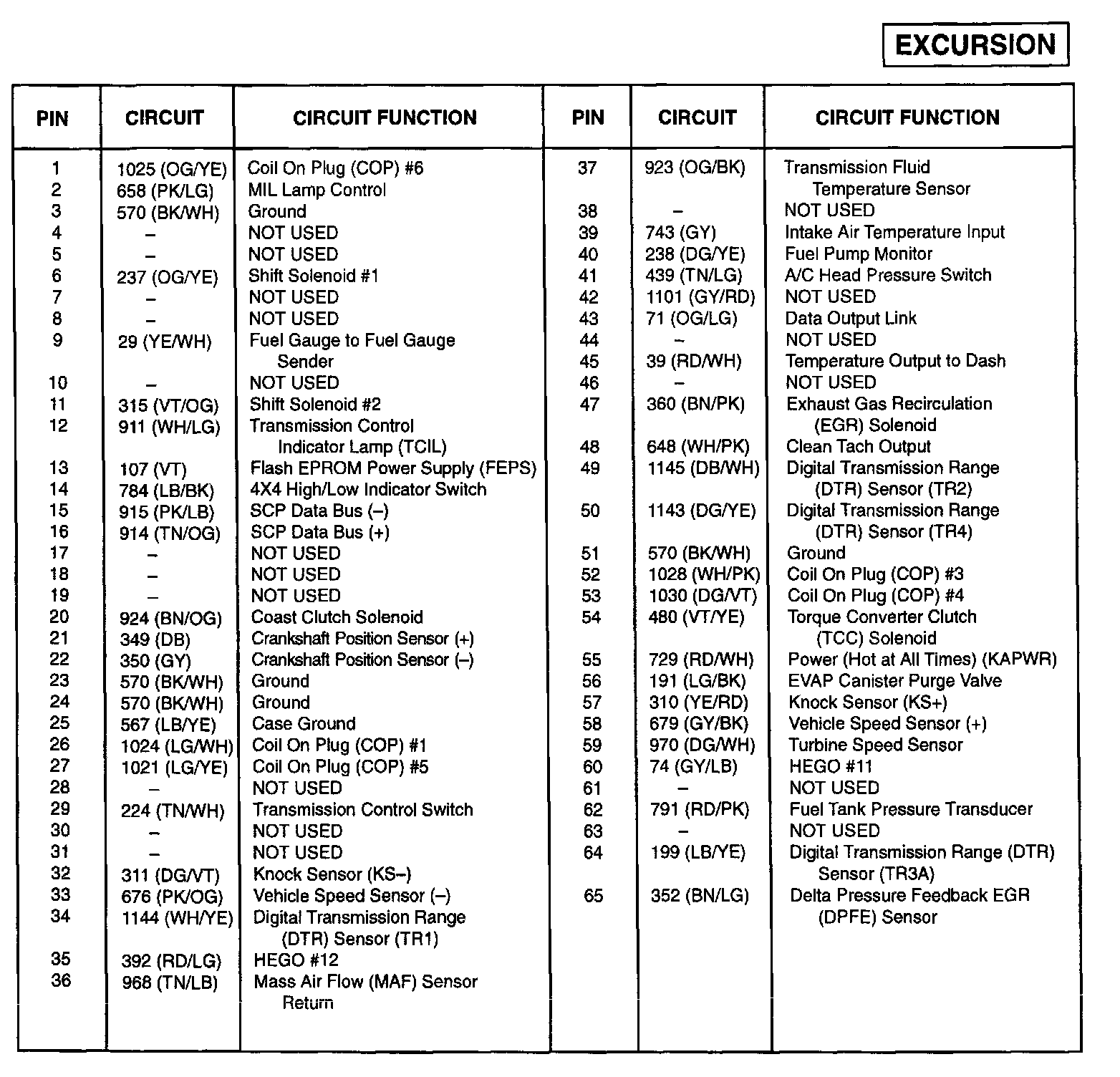

Part (1 Of 3):

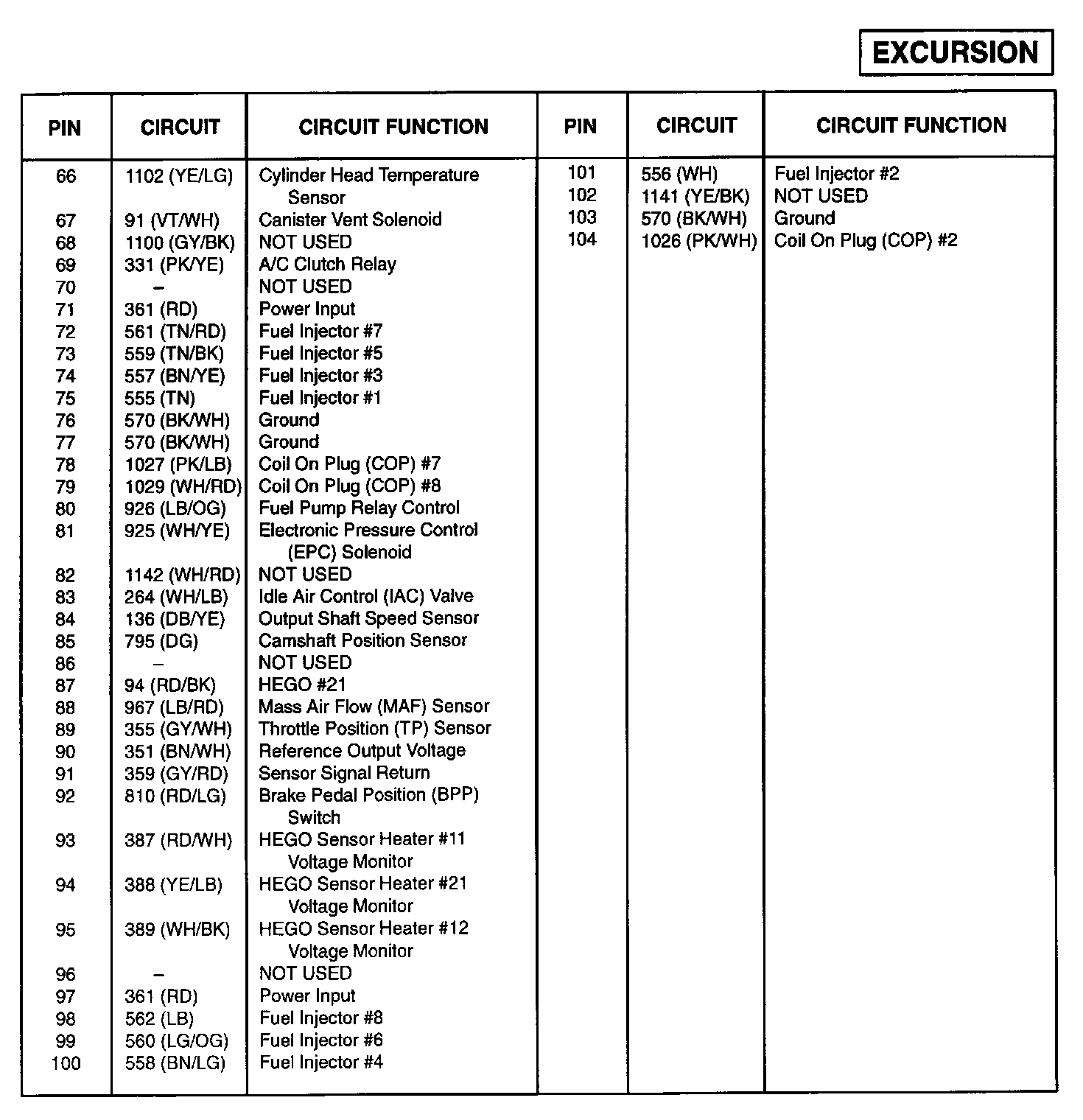

Part (2 Of 3):

Part (3 Of 3):
