Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

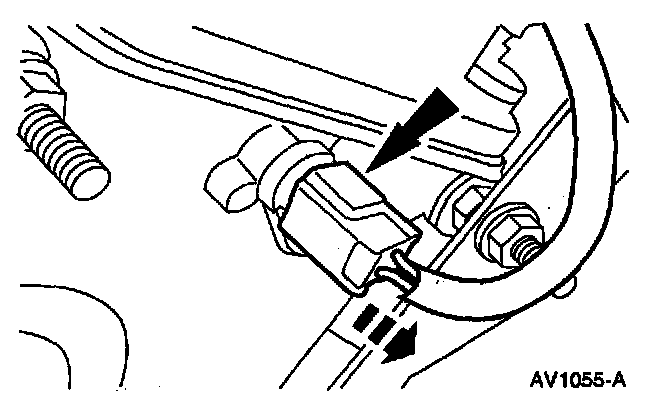

2. Disconnect the Camshaft Position (CMP) sensor electrical connector.

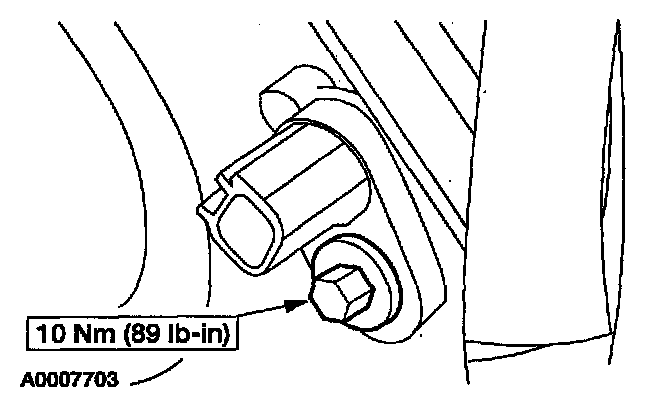

3. Remove the bolt and remove the CMP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
