Ford
>>
1999
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

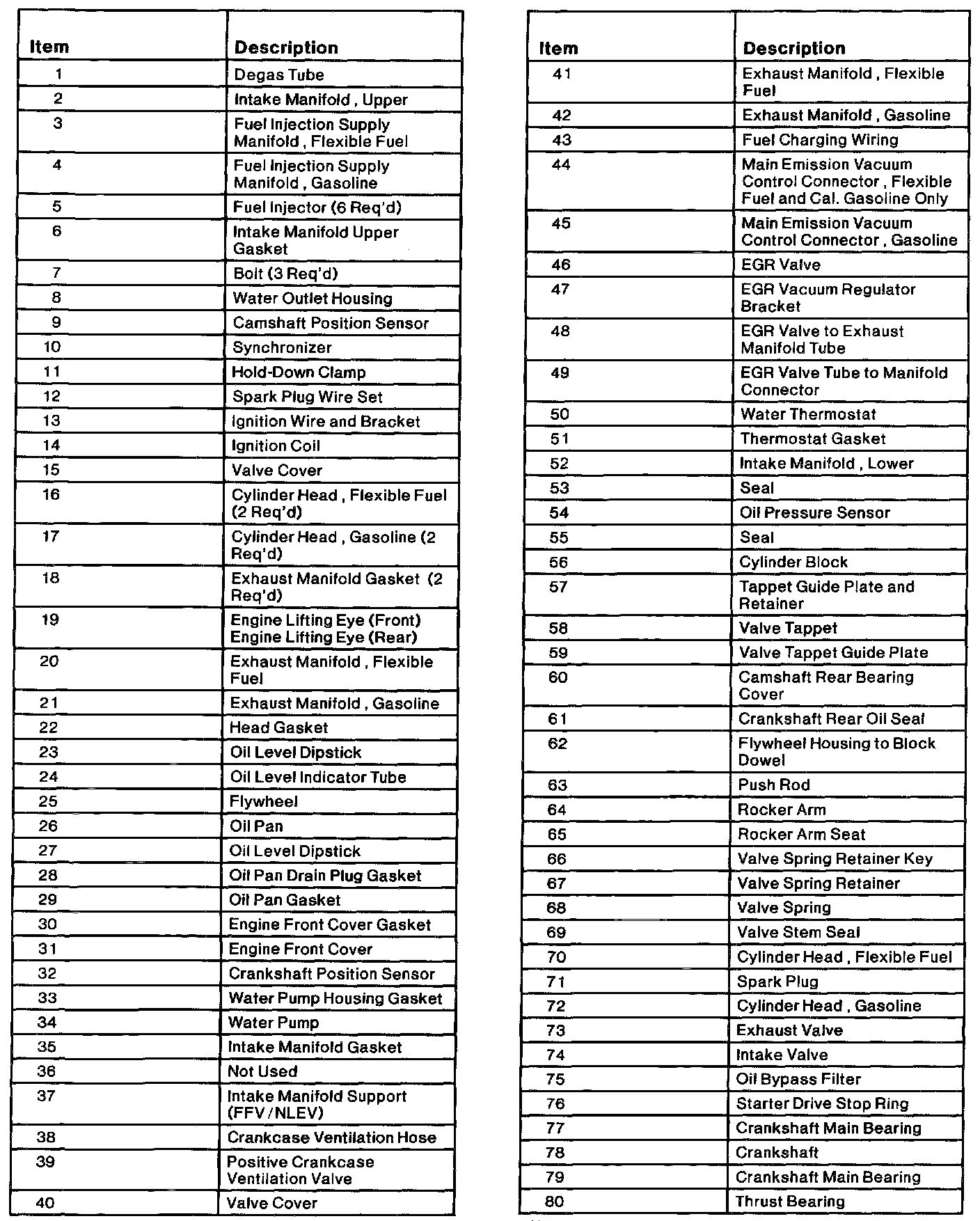

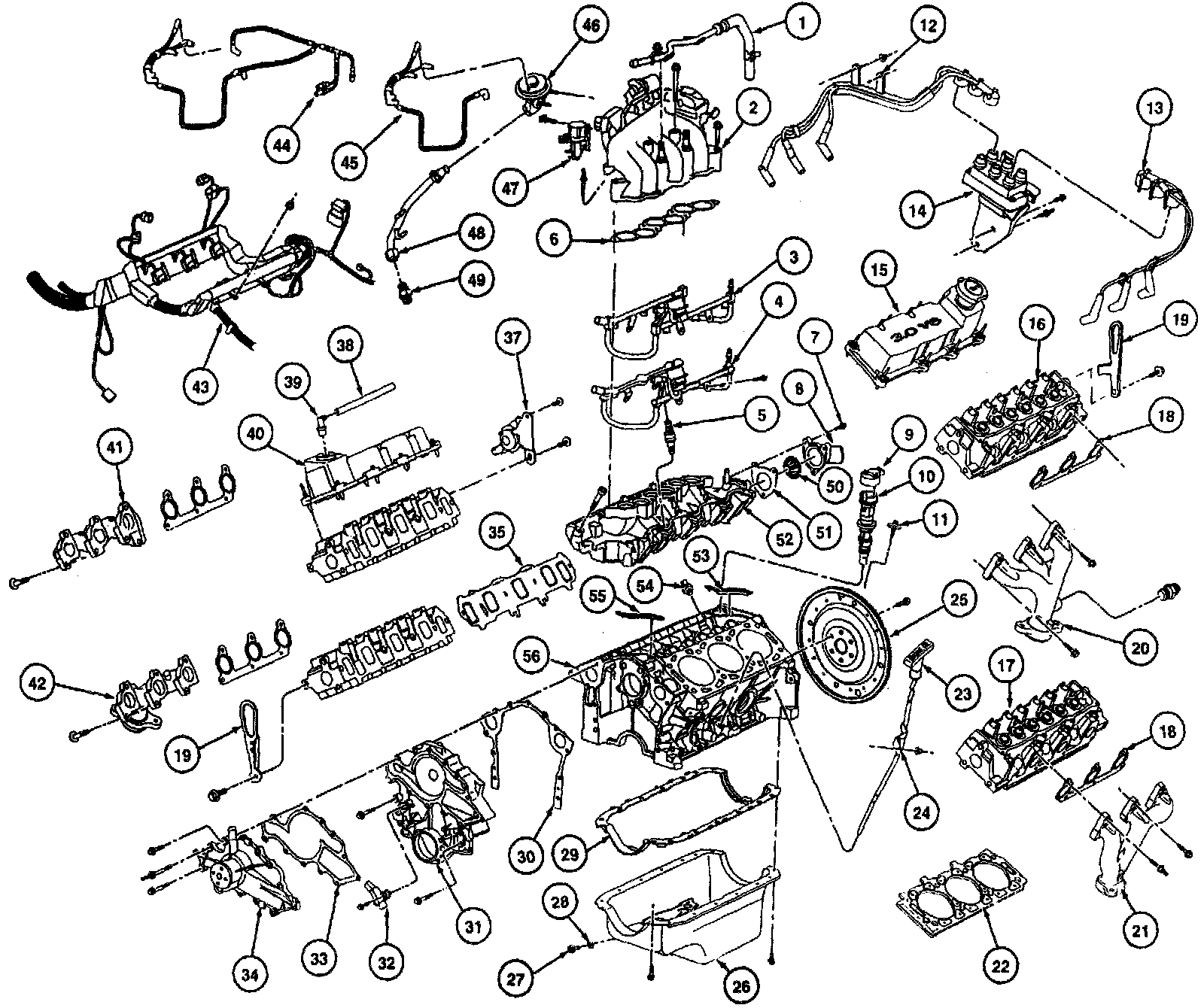

3.0L (2V) Engine - Disassembled View (1 Of 4):
3.0L (2V) Engine - Disassembled View (2 Of 4):

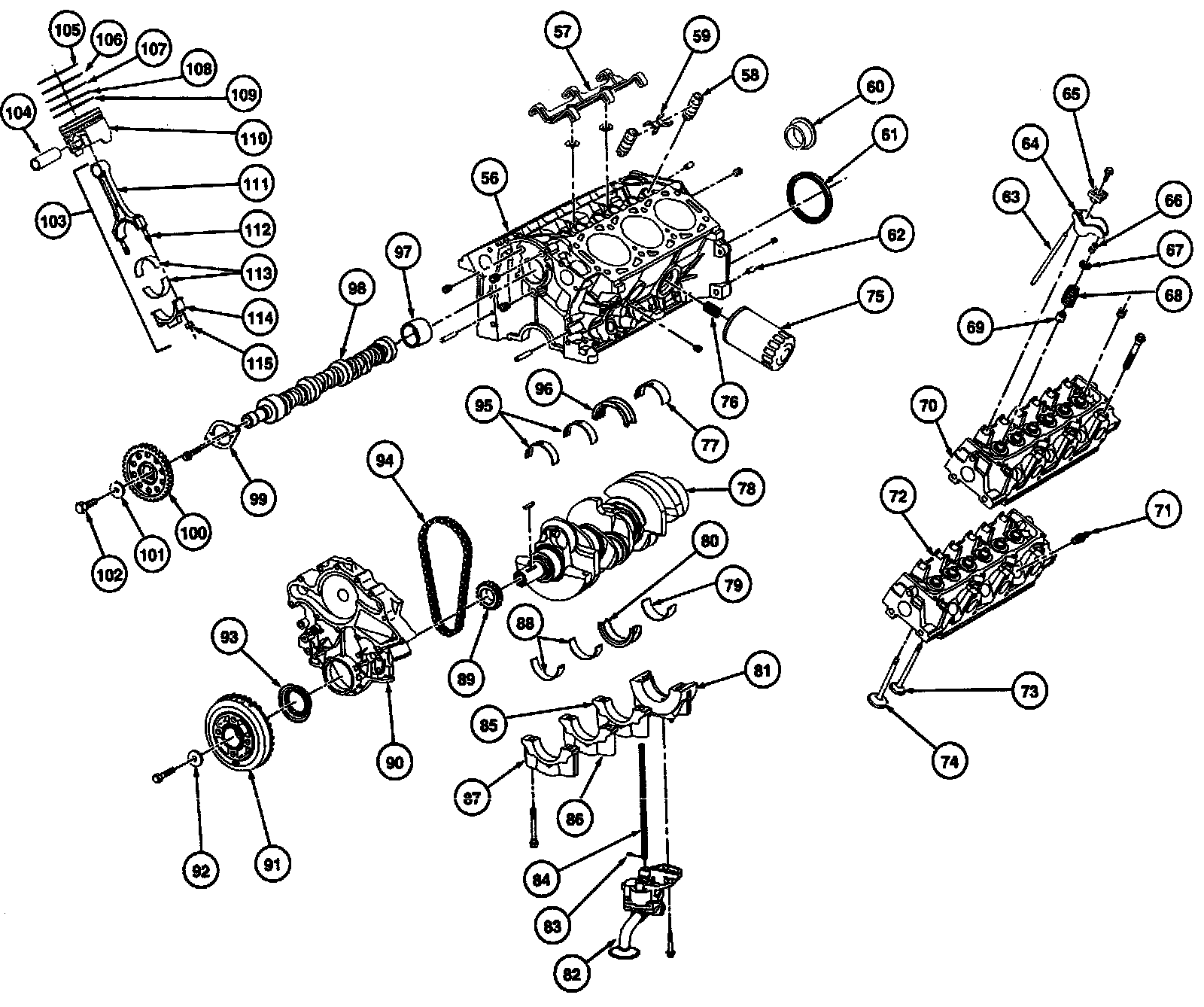

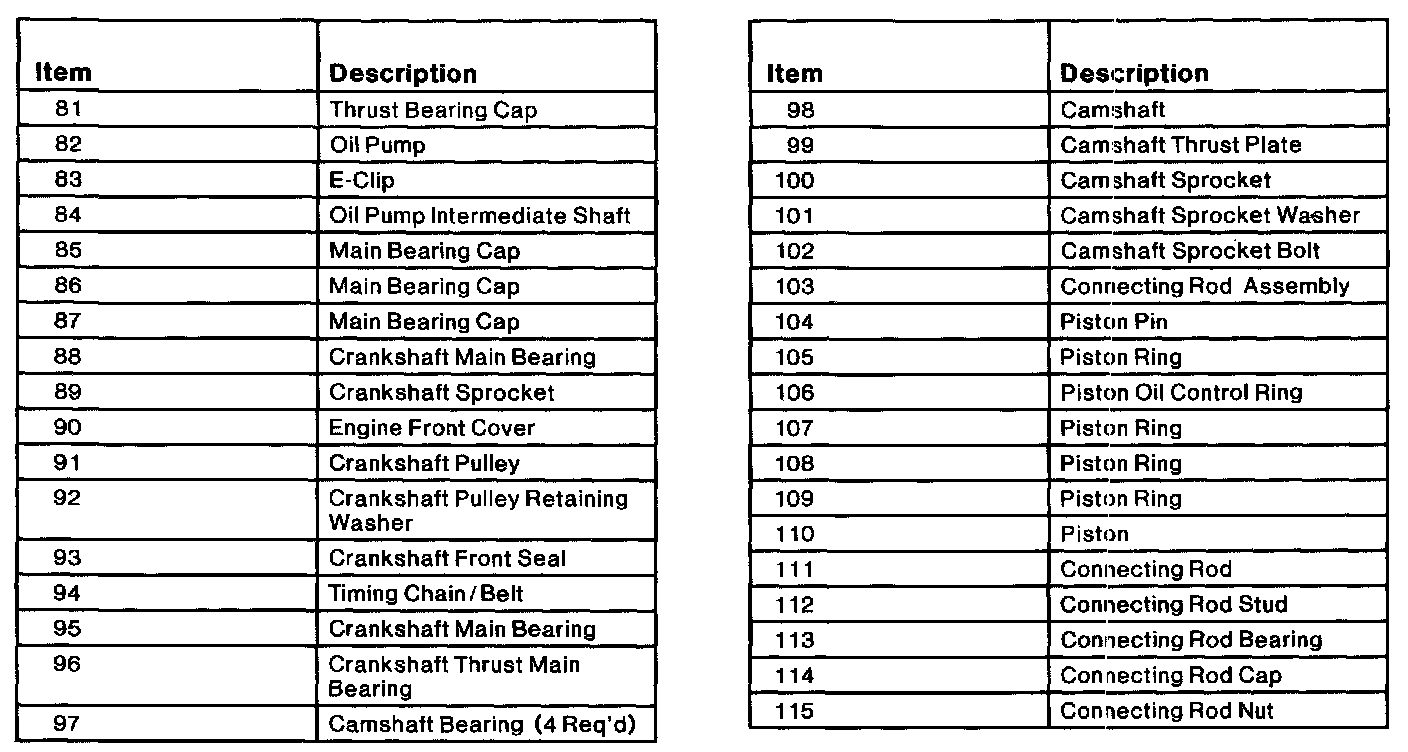

3.0L (2V) Engine - Disassembled View (3 Of 4):
3.0L (2V) Engine - Disassembled View (4 Of 4):
