Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection

Ignition System: Testing and Inspection

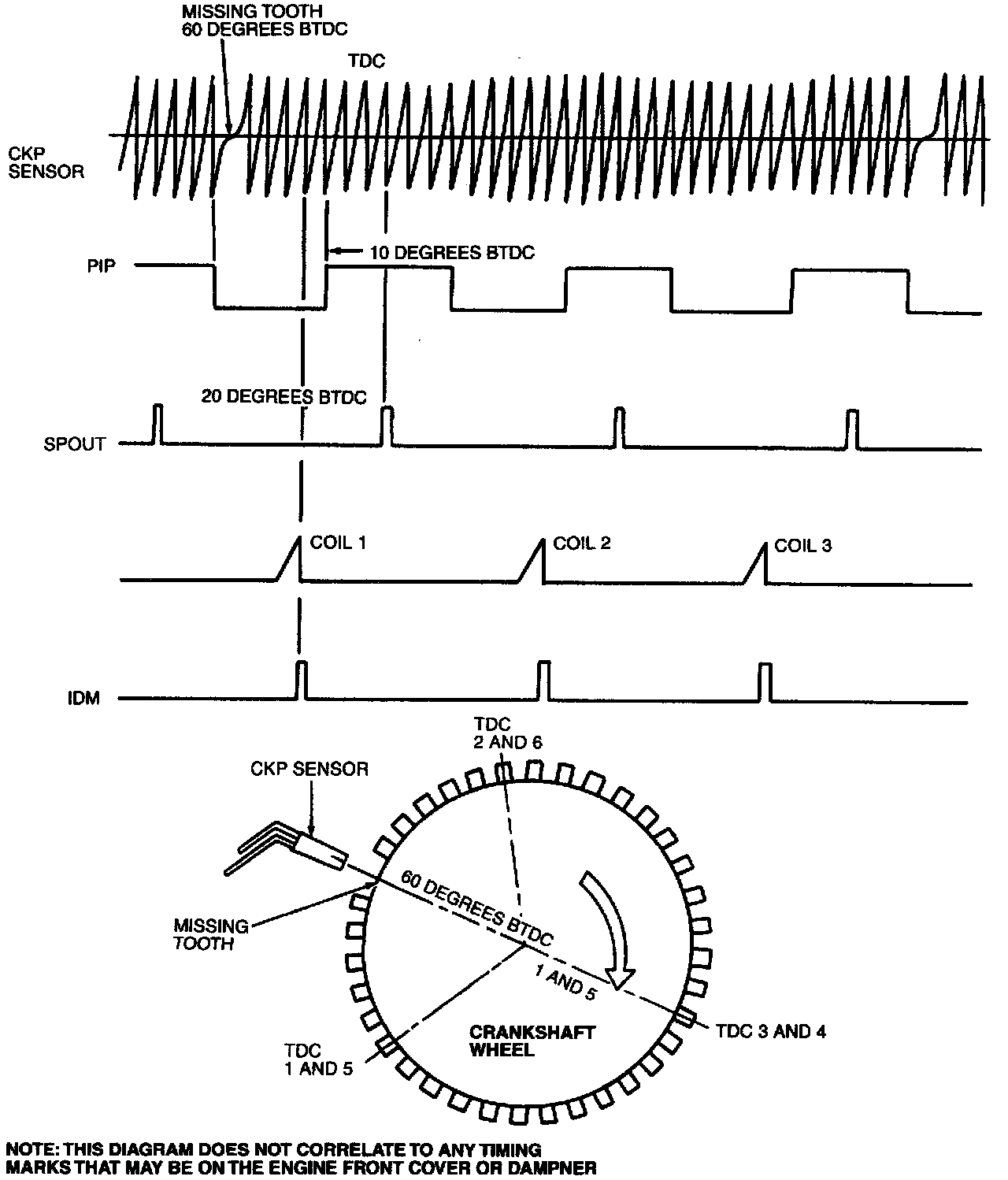

Six Cylinder Integrated Electronic (EI) Ignition Waveforms. Four, eight, and ten cylinder are similar.:
