Home >> Ford >> 1997 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

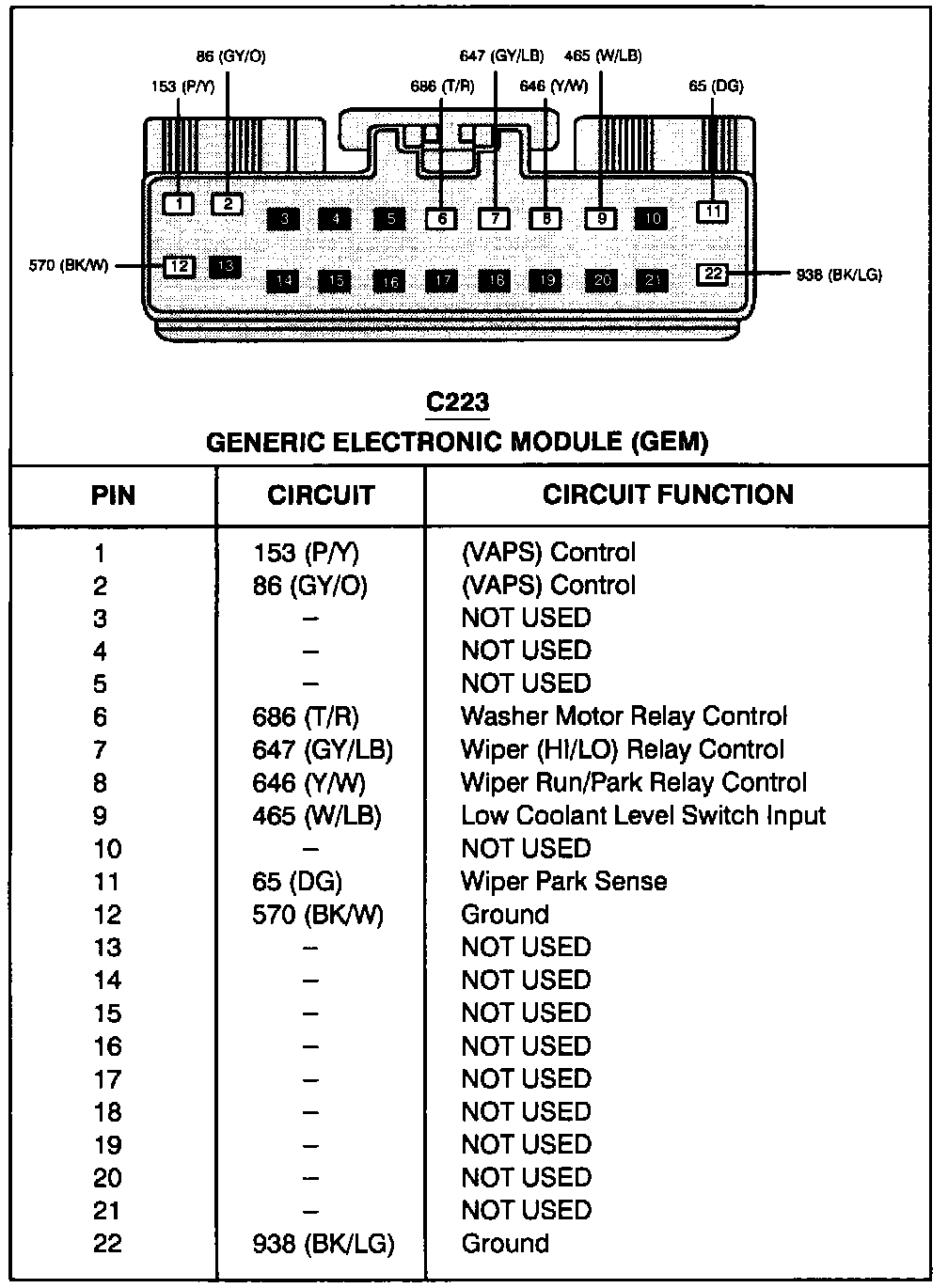

Generic Electronic Module (C223):

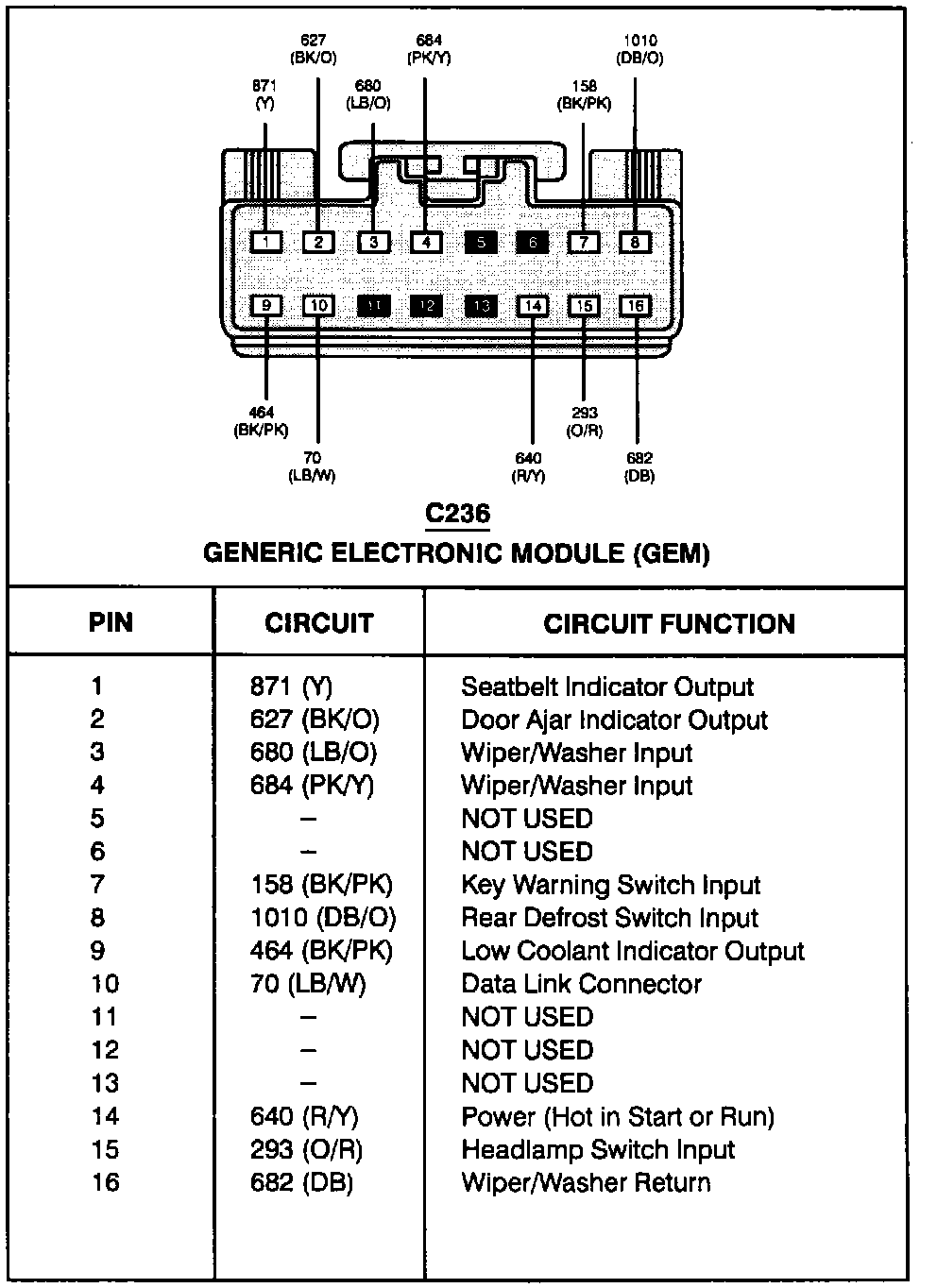

Generic Electronic Module (C236):

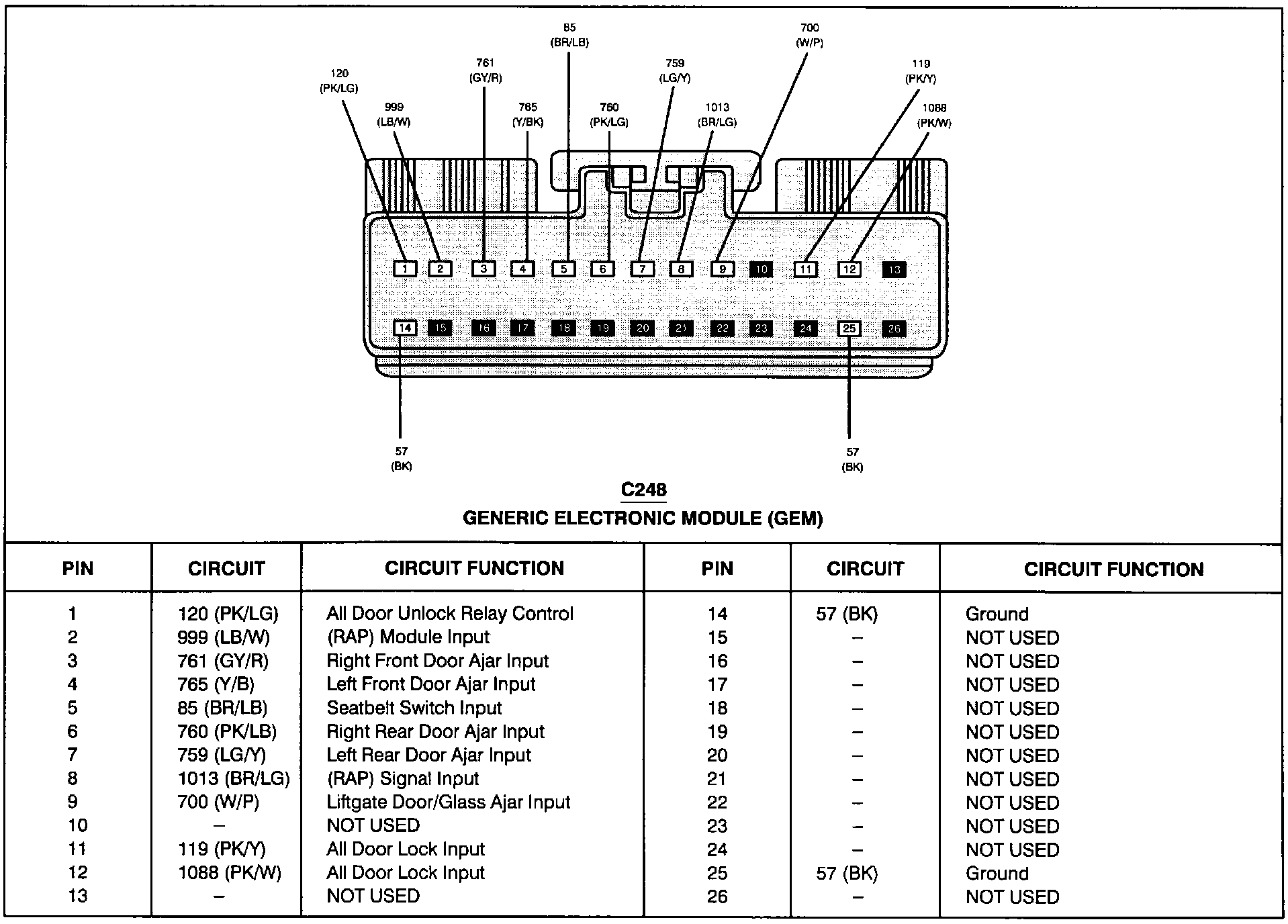

Generic Electronic Module (C248):
