Ford
>>
1996
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Temperature Control Switch

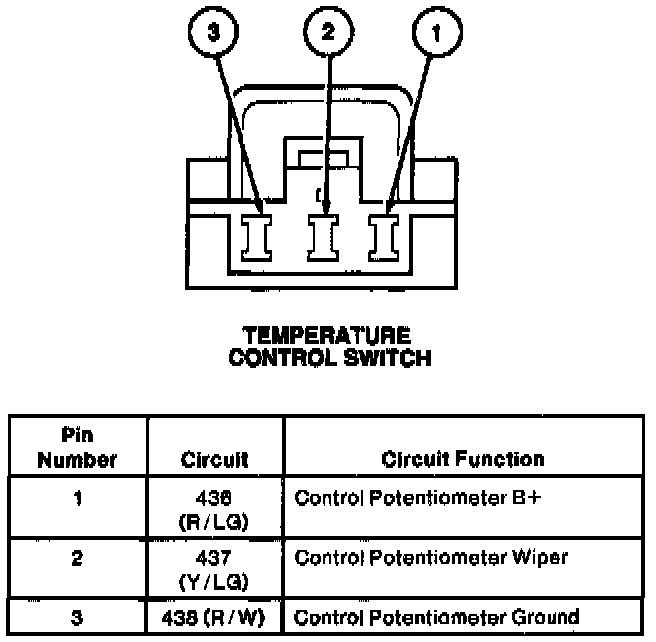

Temperature Control Switch
Temperature Control Switch:
