lemon-mirror
:
Home
>>
Ford
>>
1996
>>
Windstar V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

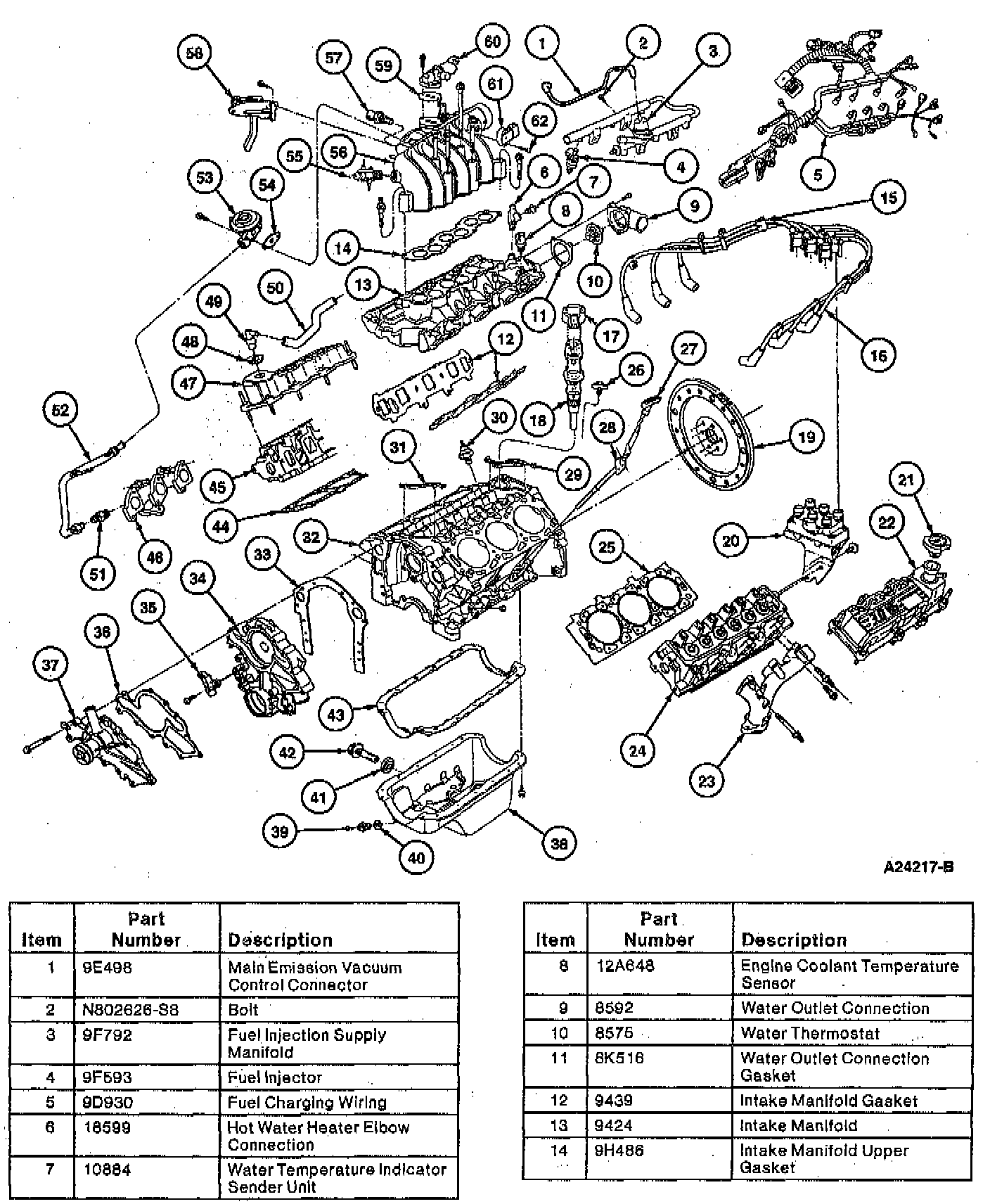

Engine Components, Disassembled View (Part 1 Of 2):

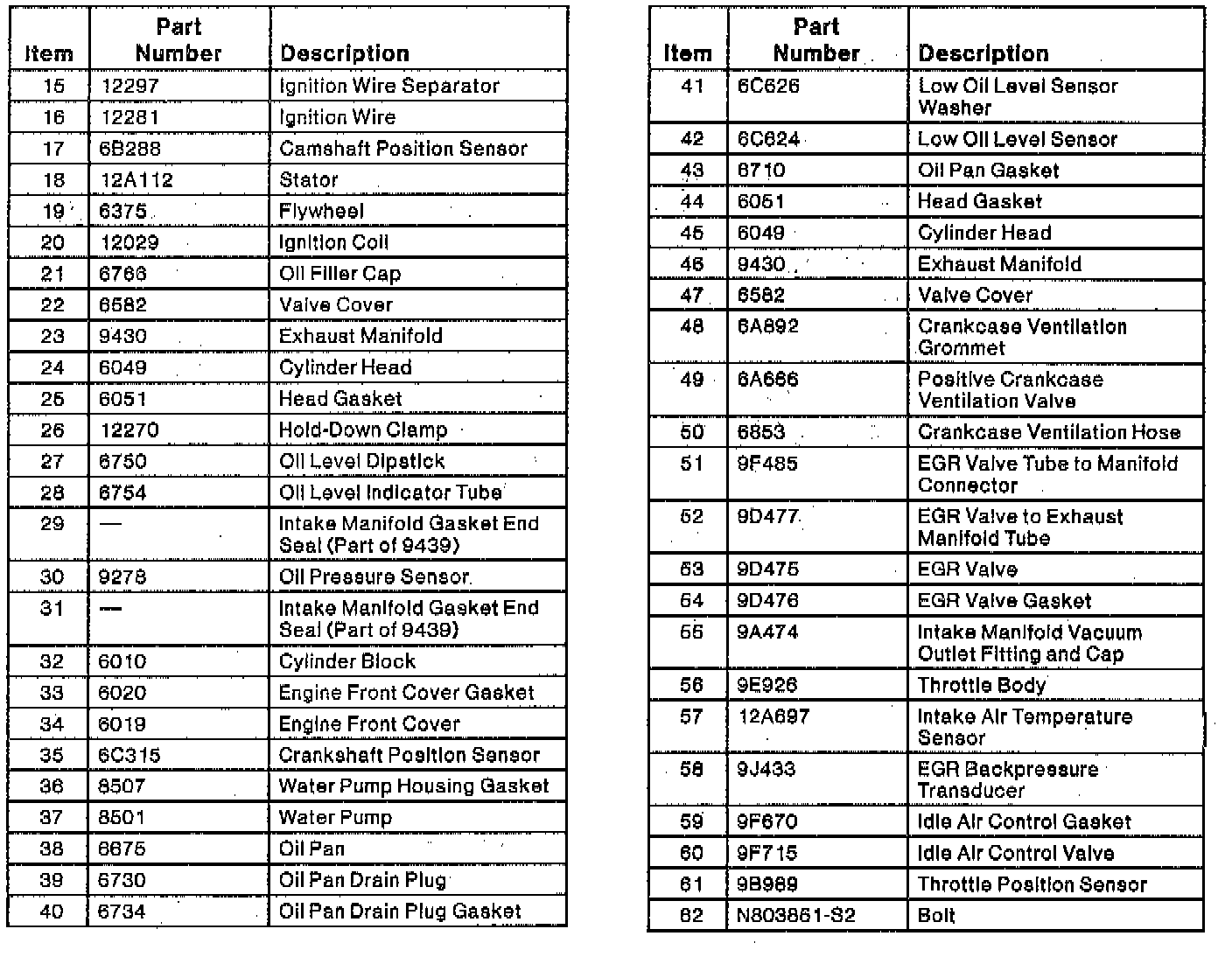

Engine Components, Disassembled View (Part 2 Of 2):

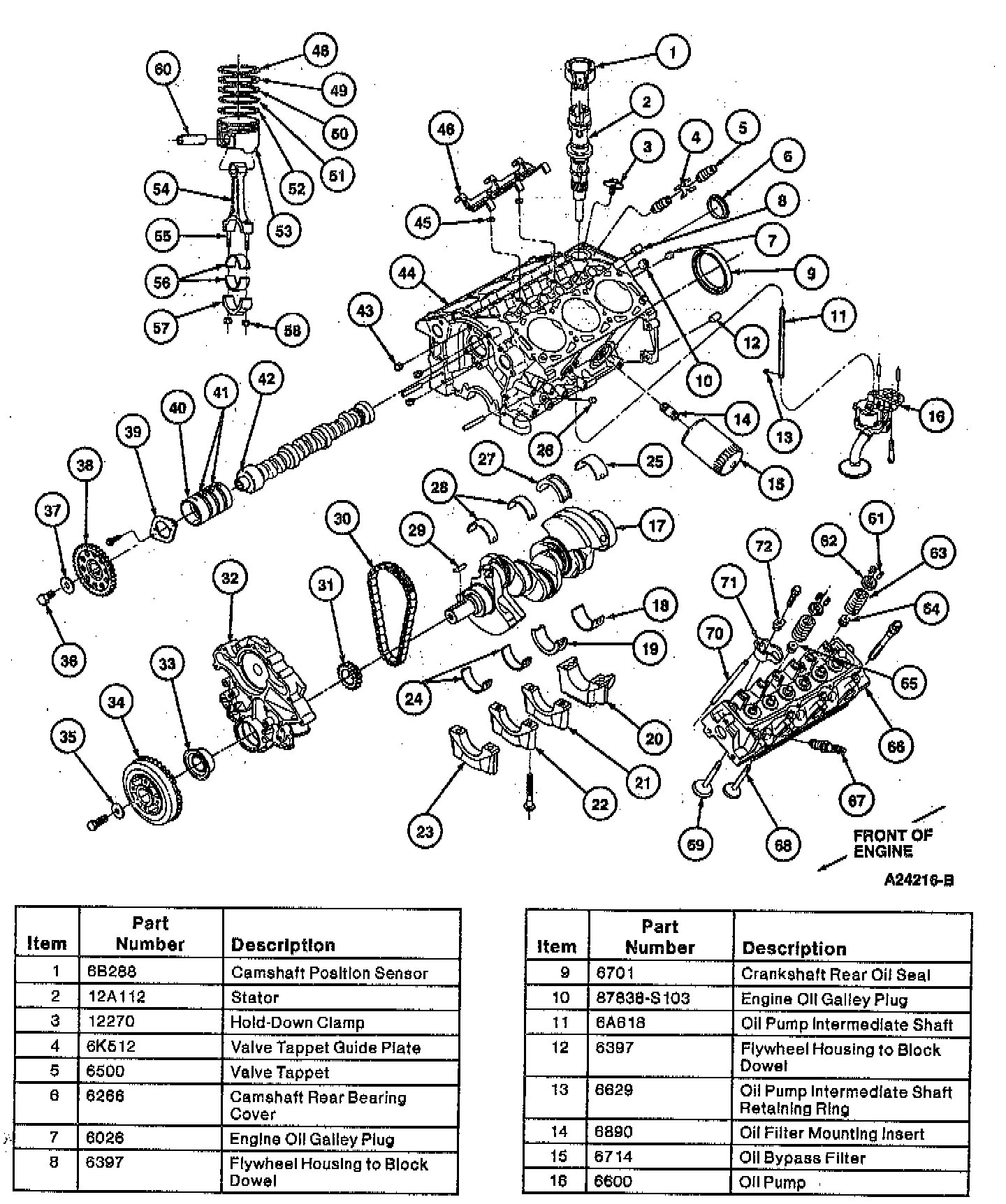

Engine, Disassembled View (Part 1 Of 2):

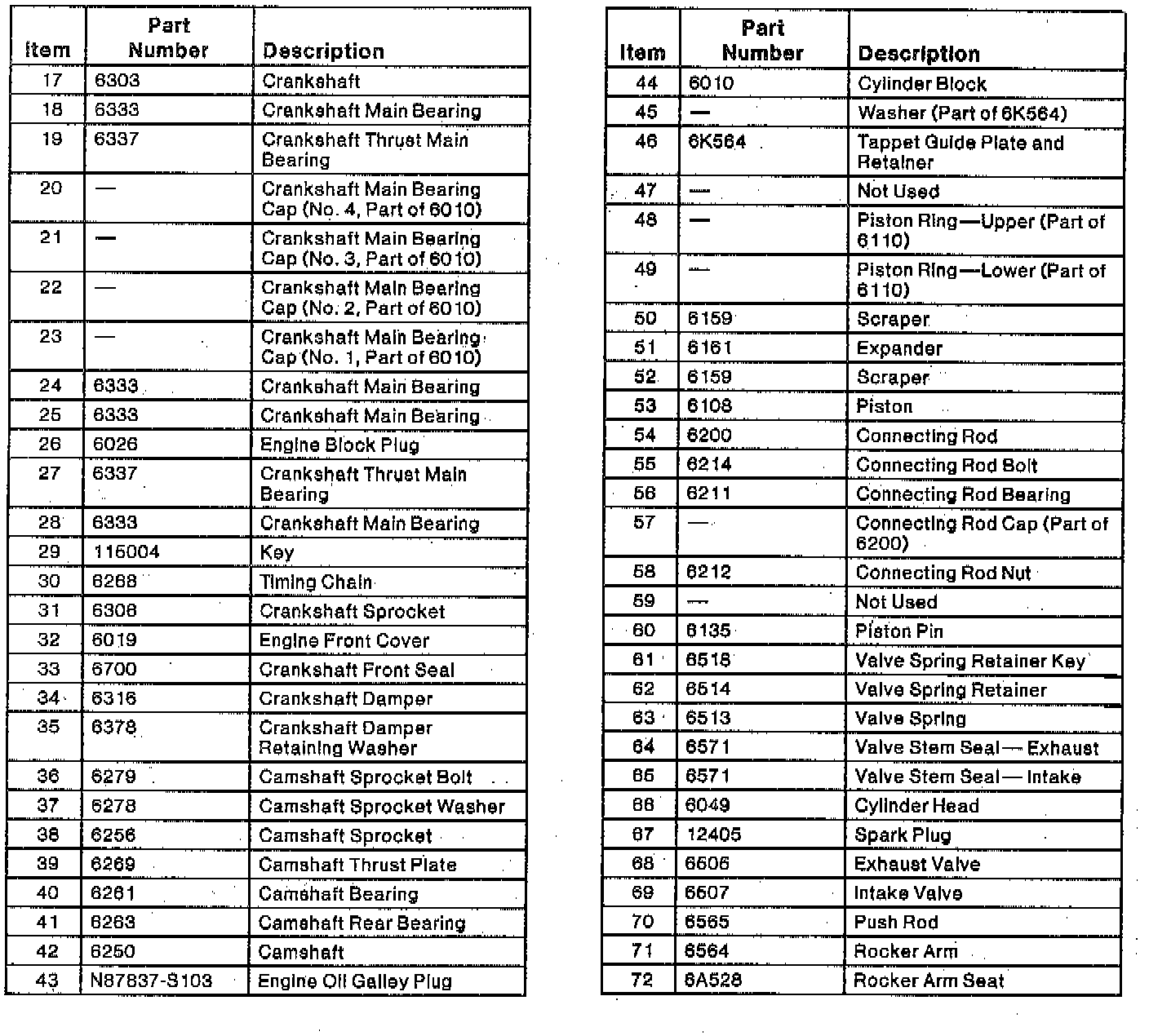

Engine, Disassembled View (Part 2 Of 2):
