Oscilloscope Patterns and Waveforms
Oscilloscope Patterns and Waveforms

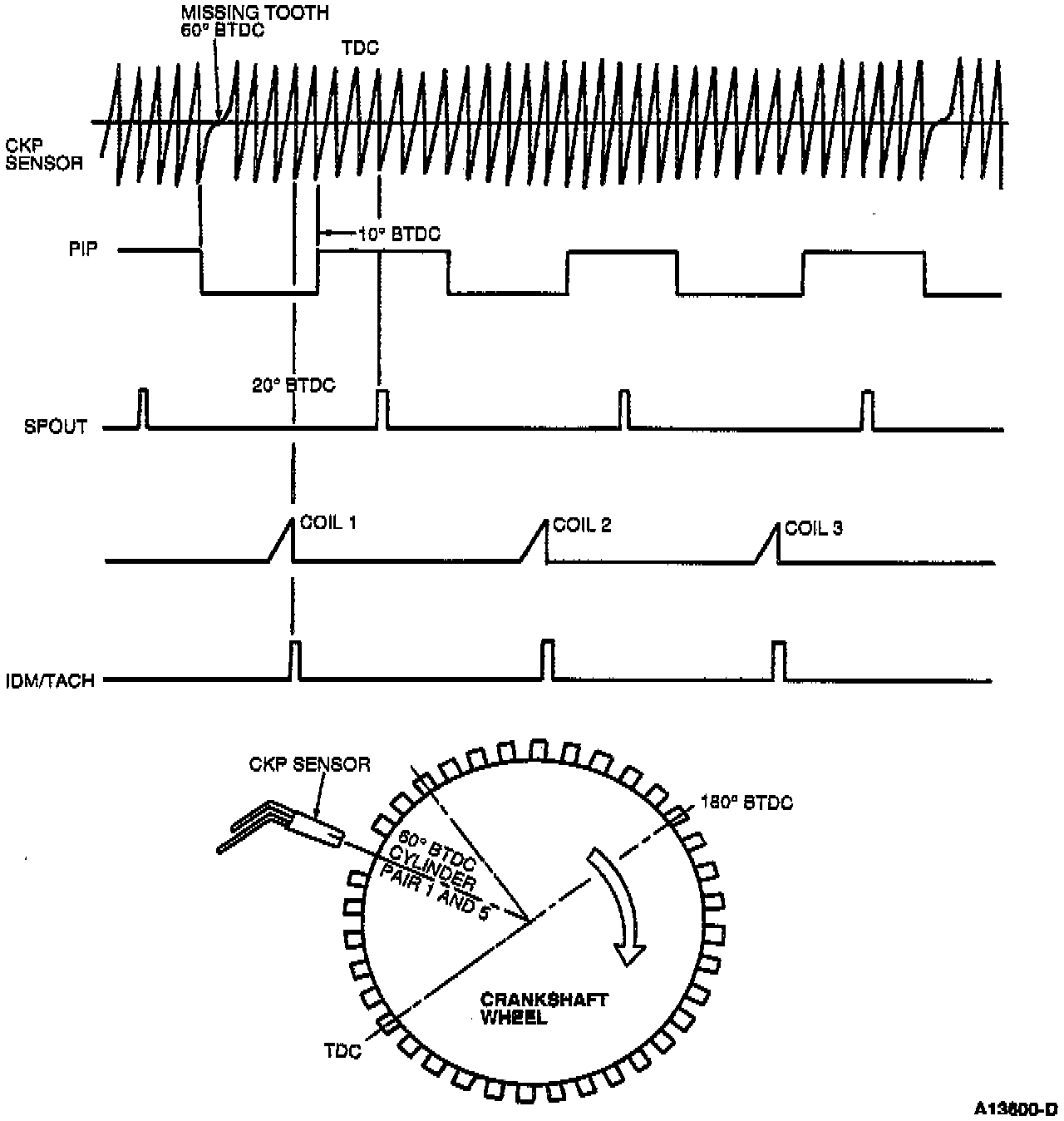

EI Ignition System Oscilloscope Waveform:
