Integrated Control Relay Module: Service and Repair

REMOVAL
1. Disconnect engine control sensor wiring from the (CCRM) electrical connector.

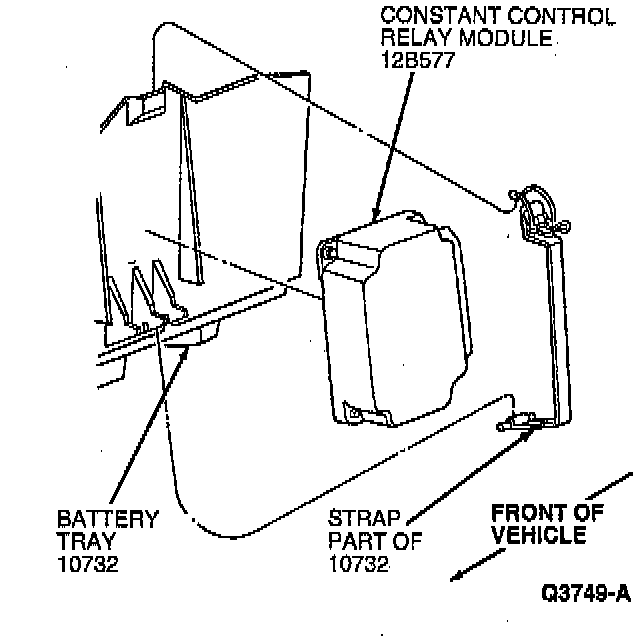

2. Release clips and CCRM from battery tray.

INSTALLATION
1. Follow removal procedures in reverse order.
2. Tighten engine control sensor wiring connector to 1.3-1.9 Nm (12-16 inch lbs.).
