Power Window Switch
>>
Master Window Control Switch
Master Window Control Switch

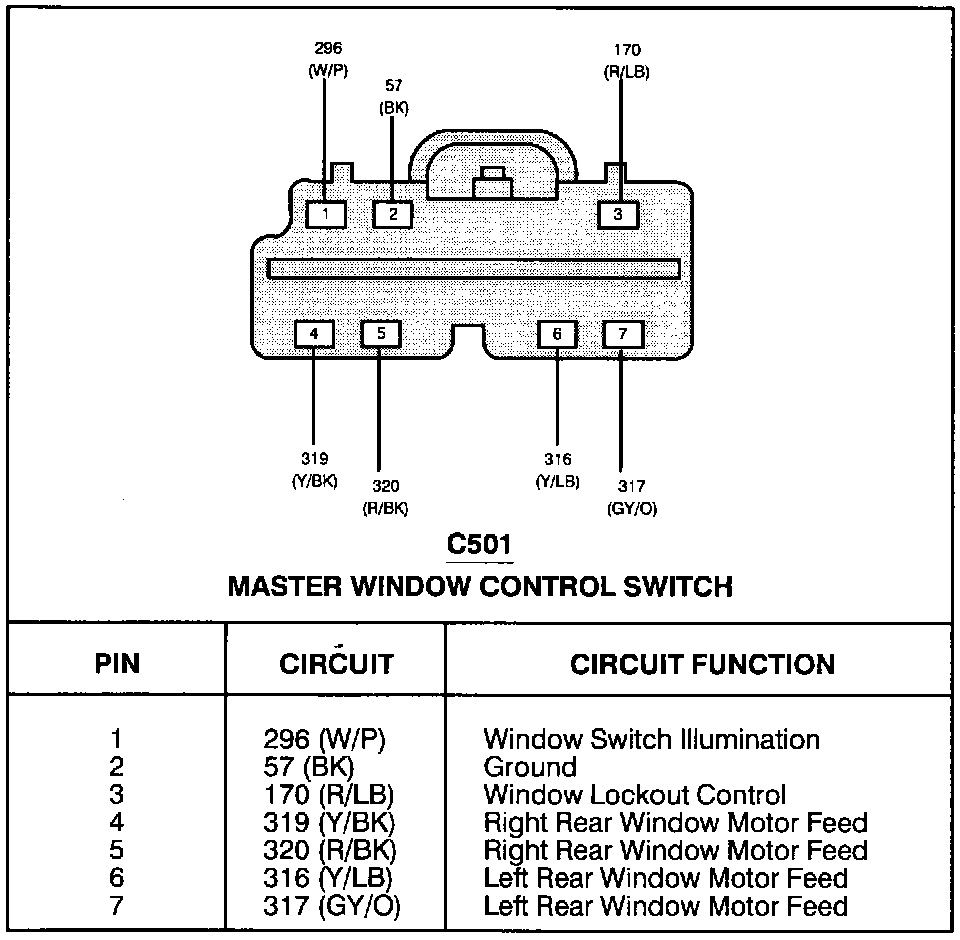

Master Window Control Switch (C501):

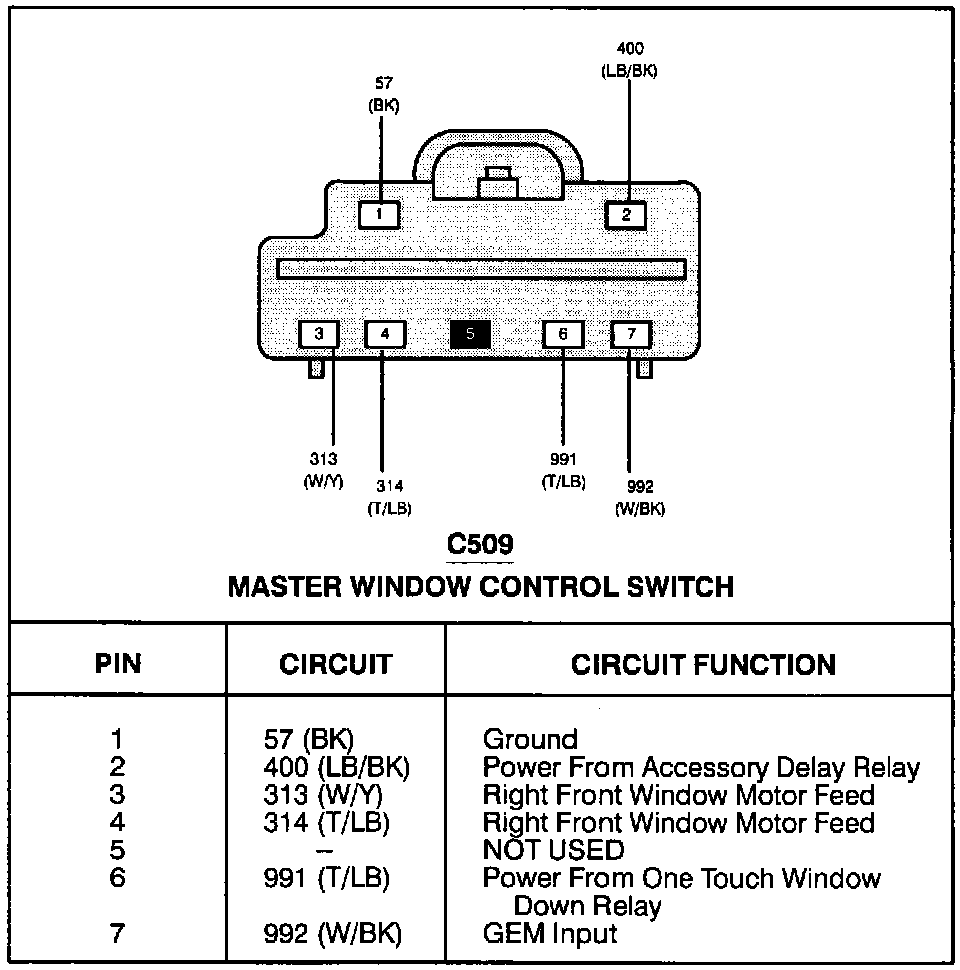

Master Window Control Switch (C509):
