Engine Control Module
Engine Control Module

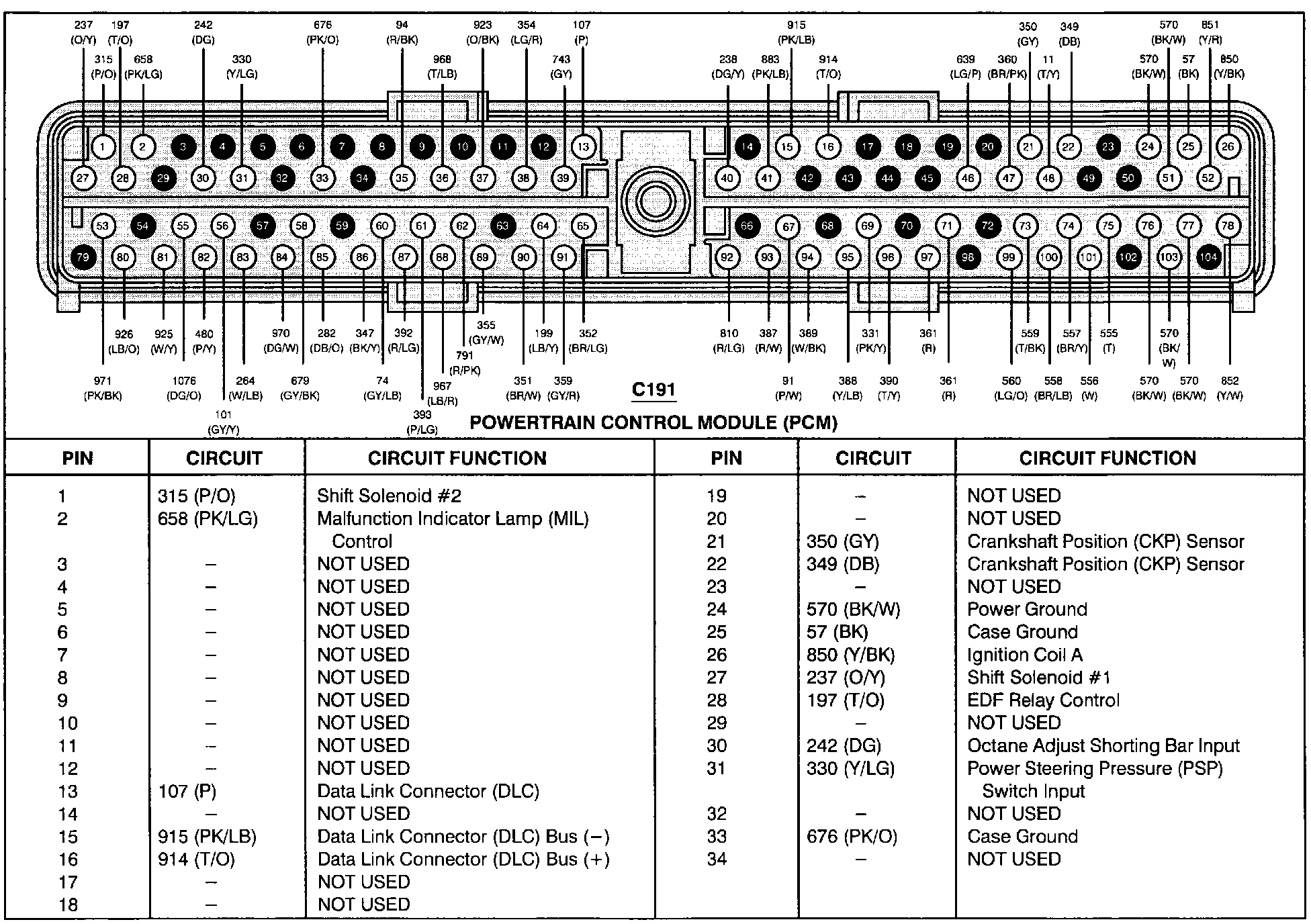

Powertrain Control Module (Part 1 Of 3):

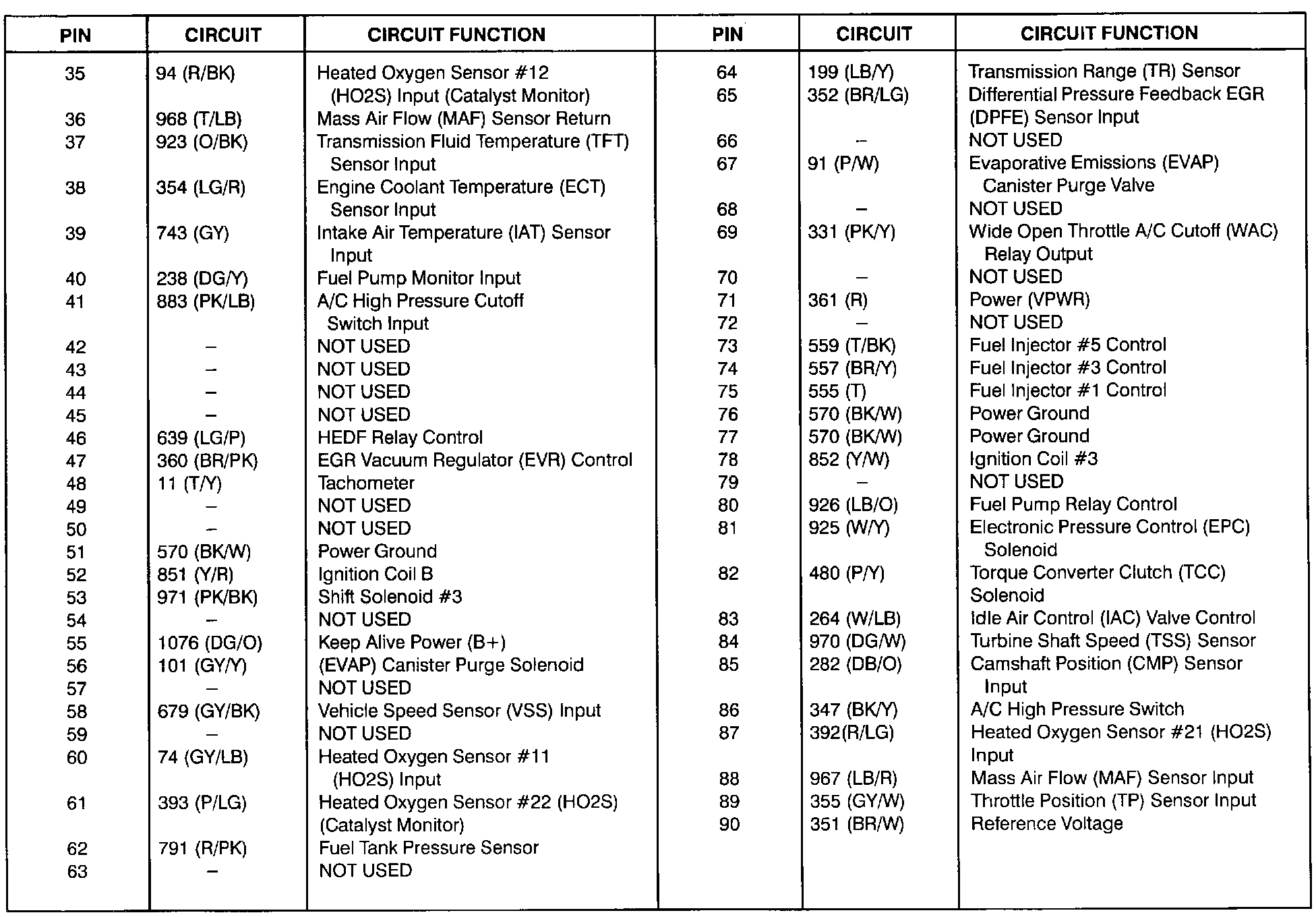

powertrain Control Module (Part 2 Of 3):

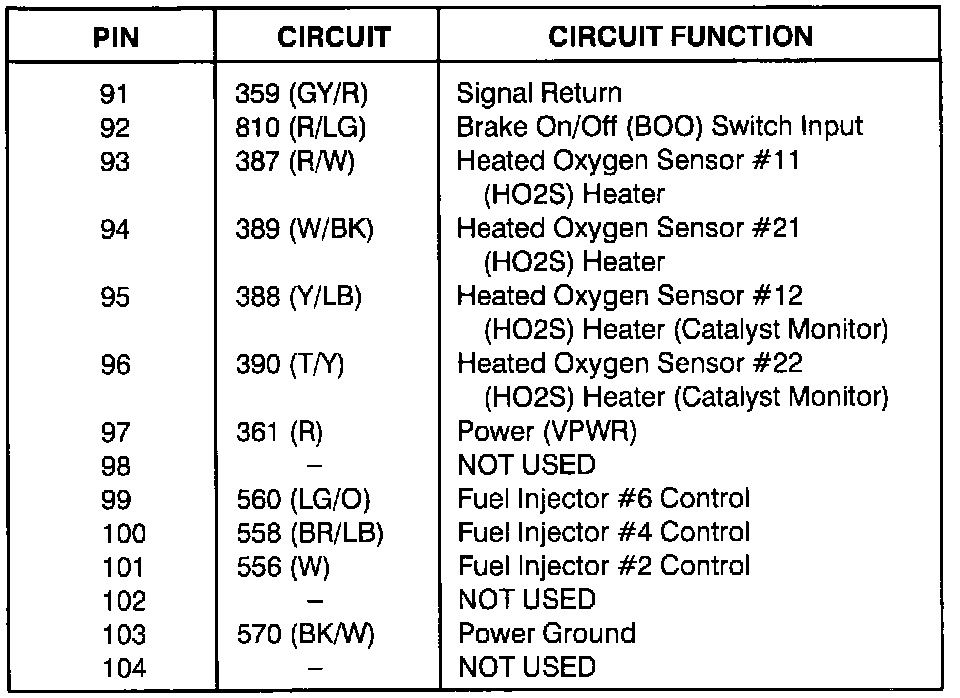

Powertrain Control Module (Part 3 Of 3):
