Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
Electronic Climate Control Module
Electronic Climate Control Module

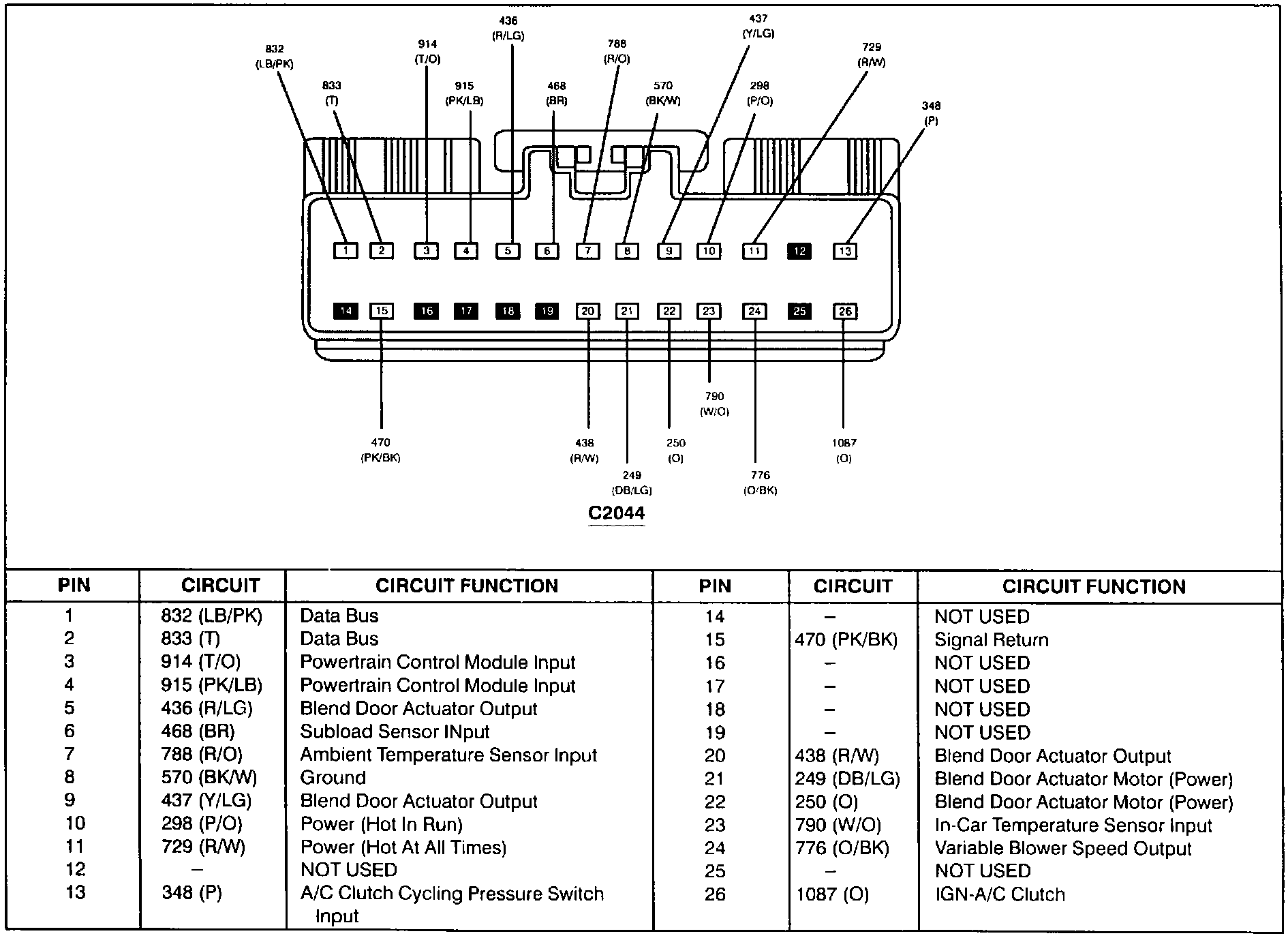

Remote Climate Control (RCC) Module Connector:
