Ford
>>
1996
>>
Taurus V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
Remote Anti-Theft Personality Module
Remote Anti-Theft Personality Module

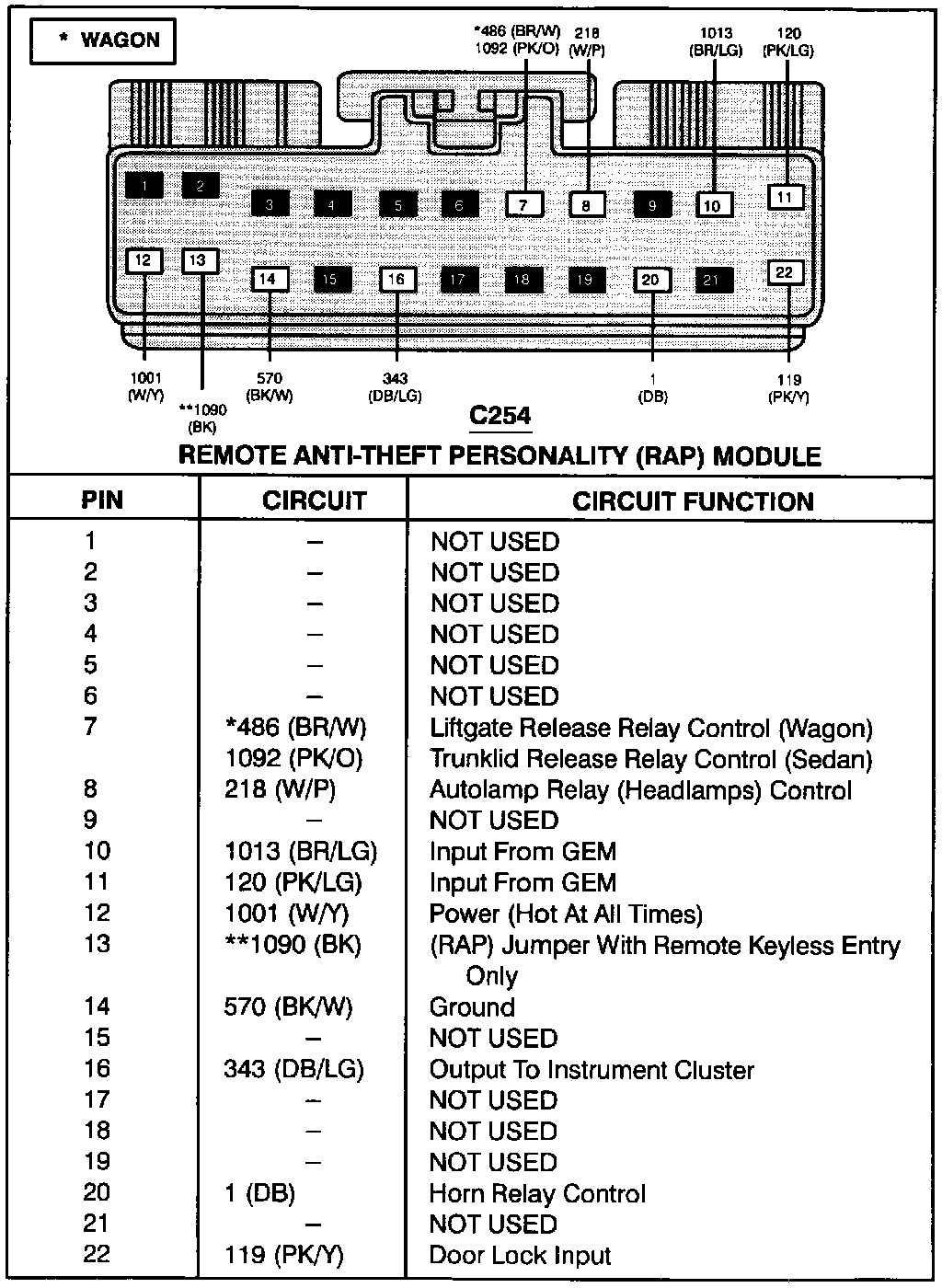

Remote Anti-Theft Personality Module (C254):

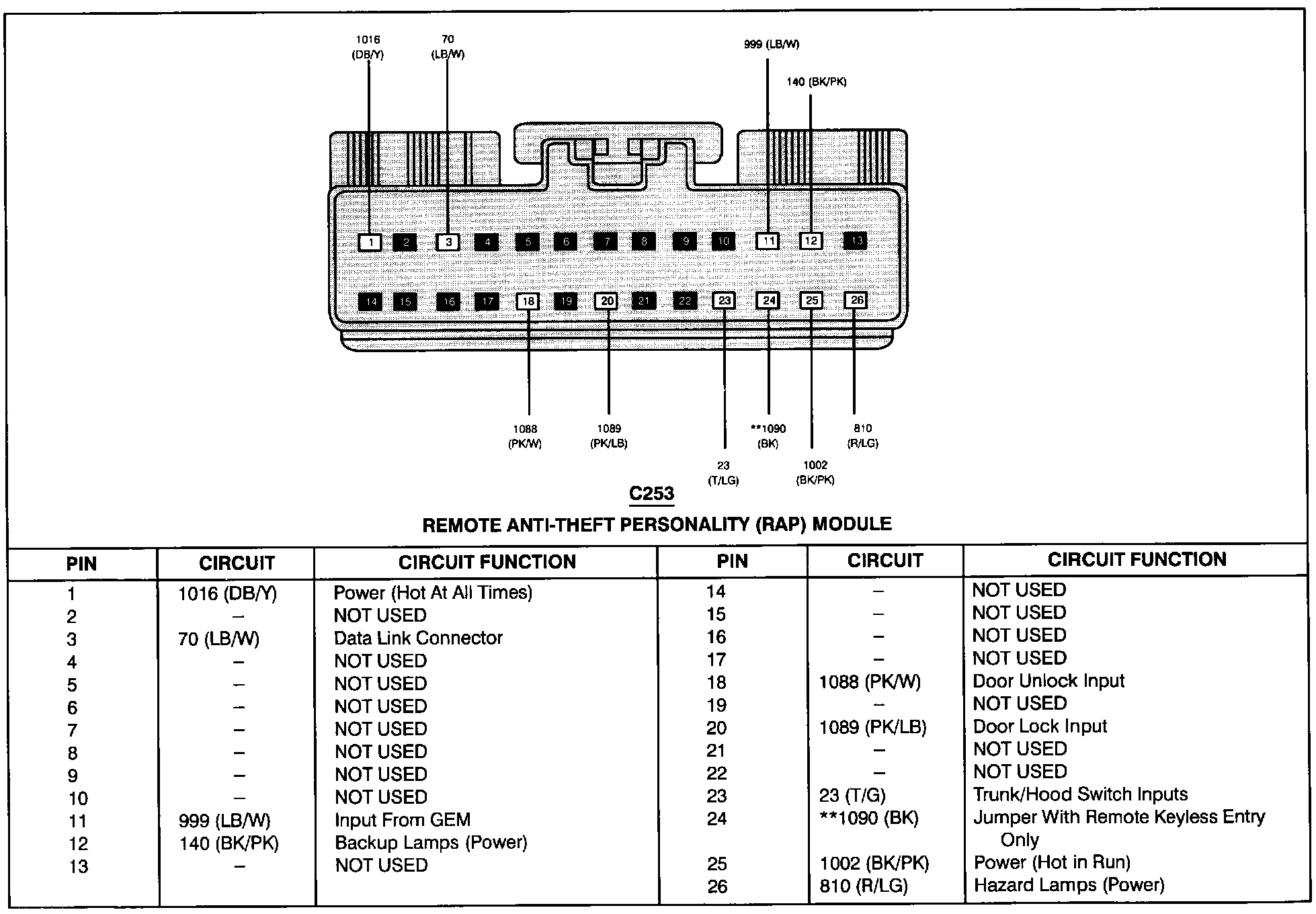

Remote Anti-Theft Personality Module (C253):
