Air Bag Control Module
Air Bag Control Module

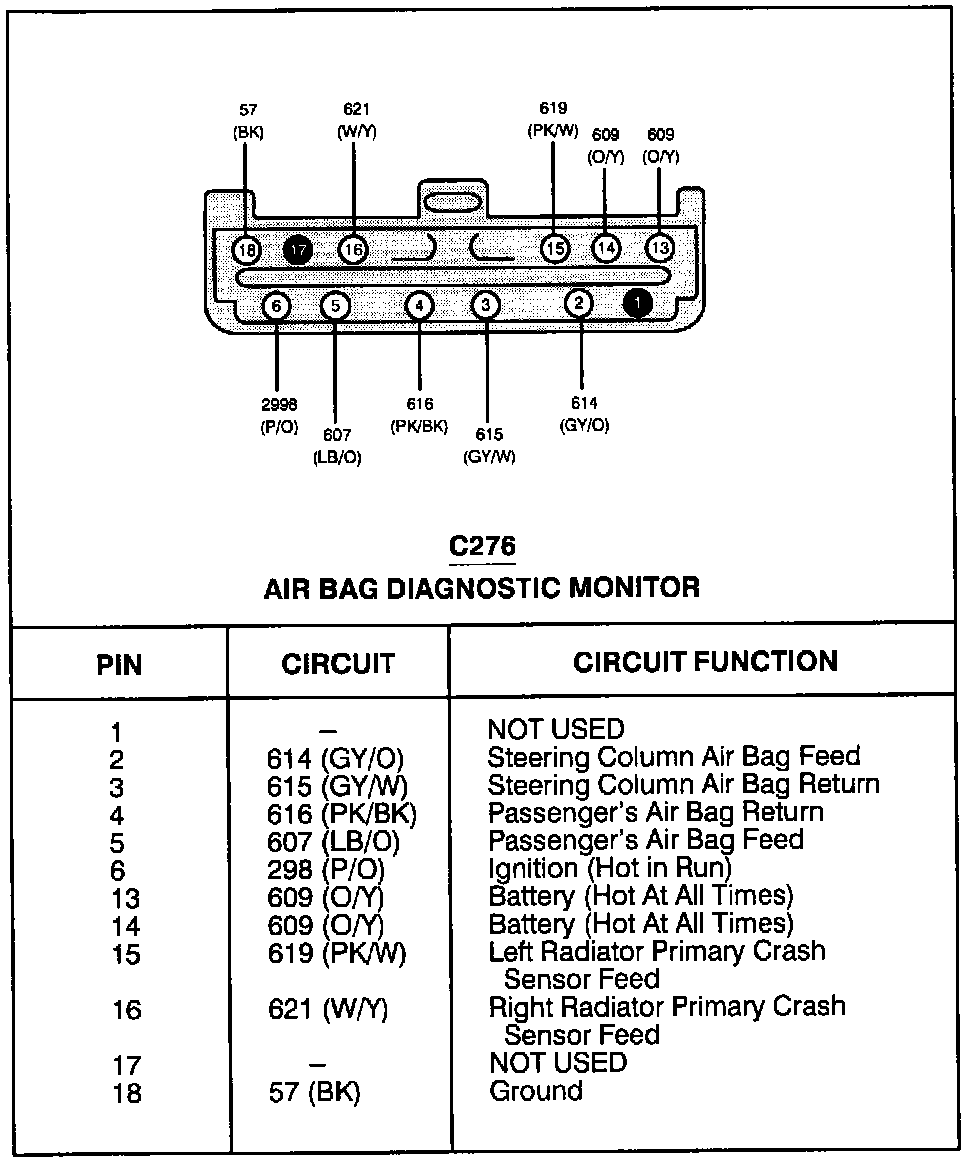

Air Bag Diagnostic Monitor - C276:

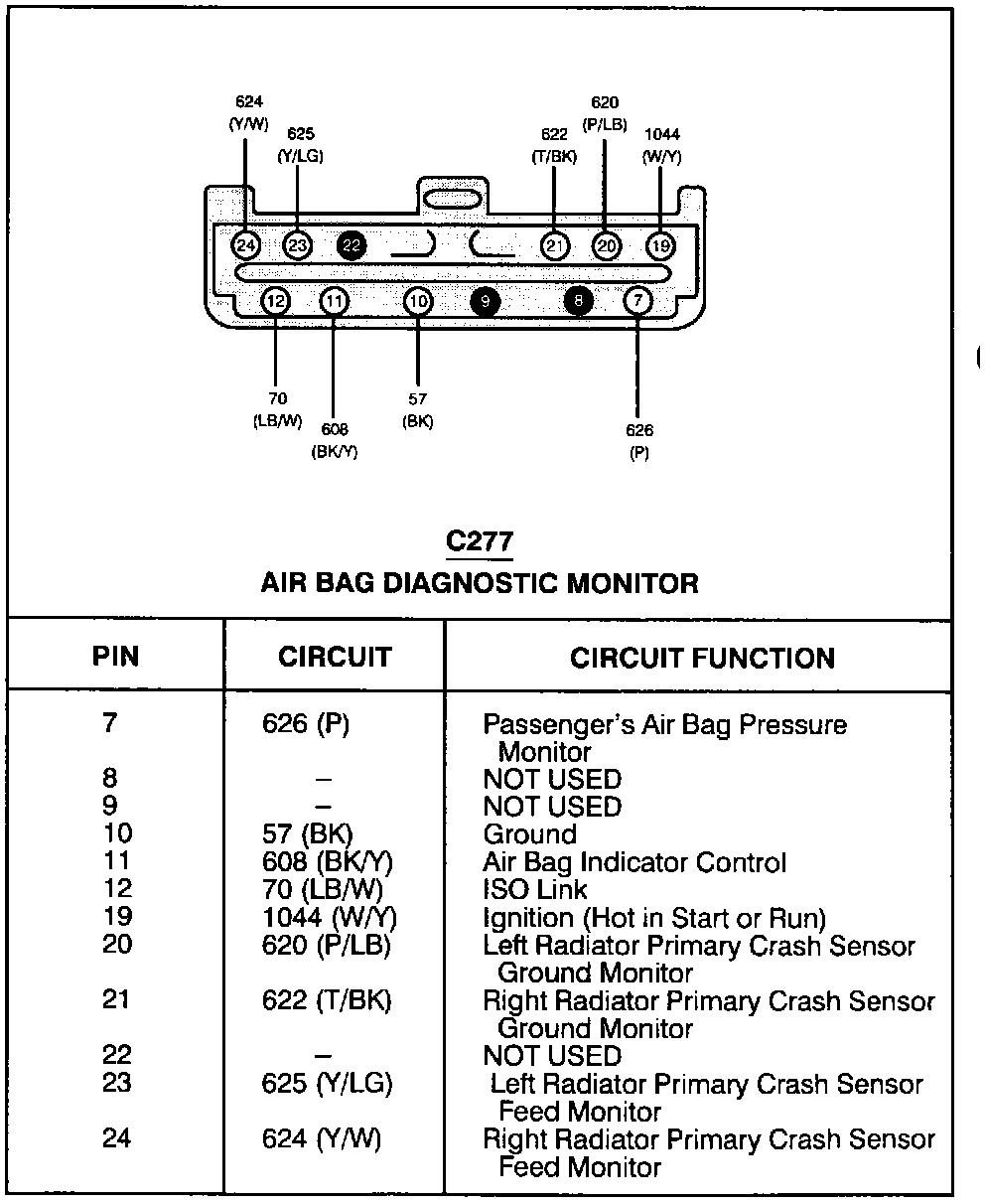

Air Bag Diagnostic Monitor - C277:
