Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values (Includes PIDs) >> Temperature Sensor Values

Temperature Sensor Values

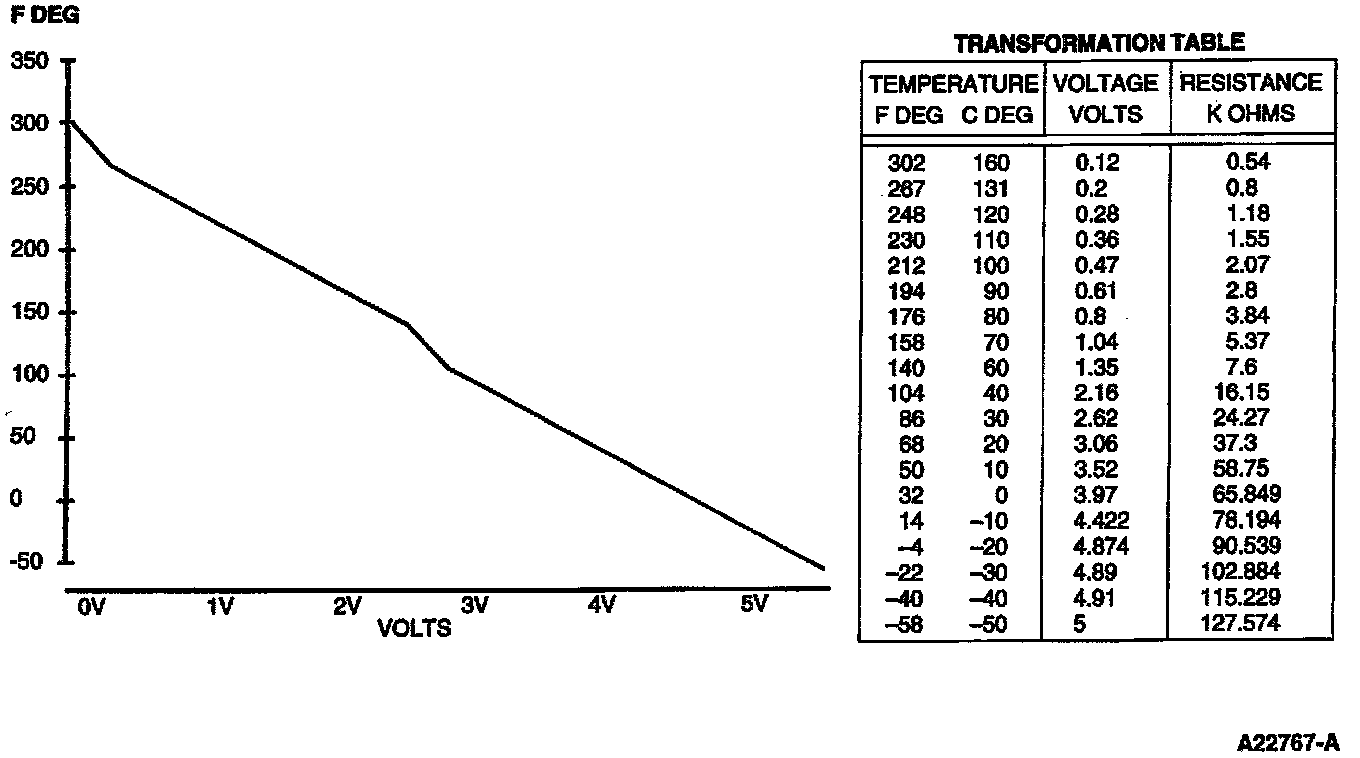

Temperature Sensor Graph. (ECT, IAT, And TFT Sensors):
