Home >> Ford >> 1996 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Connector Views

Connector Views

Powertrain Control Module (C245):

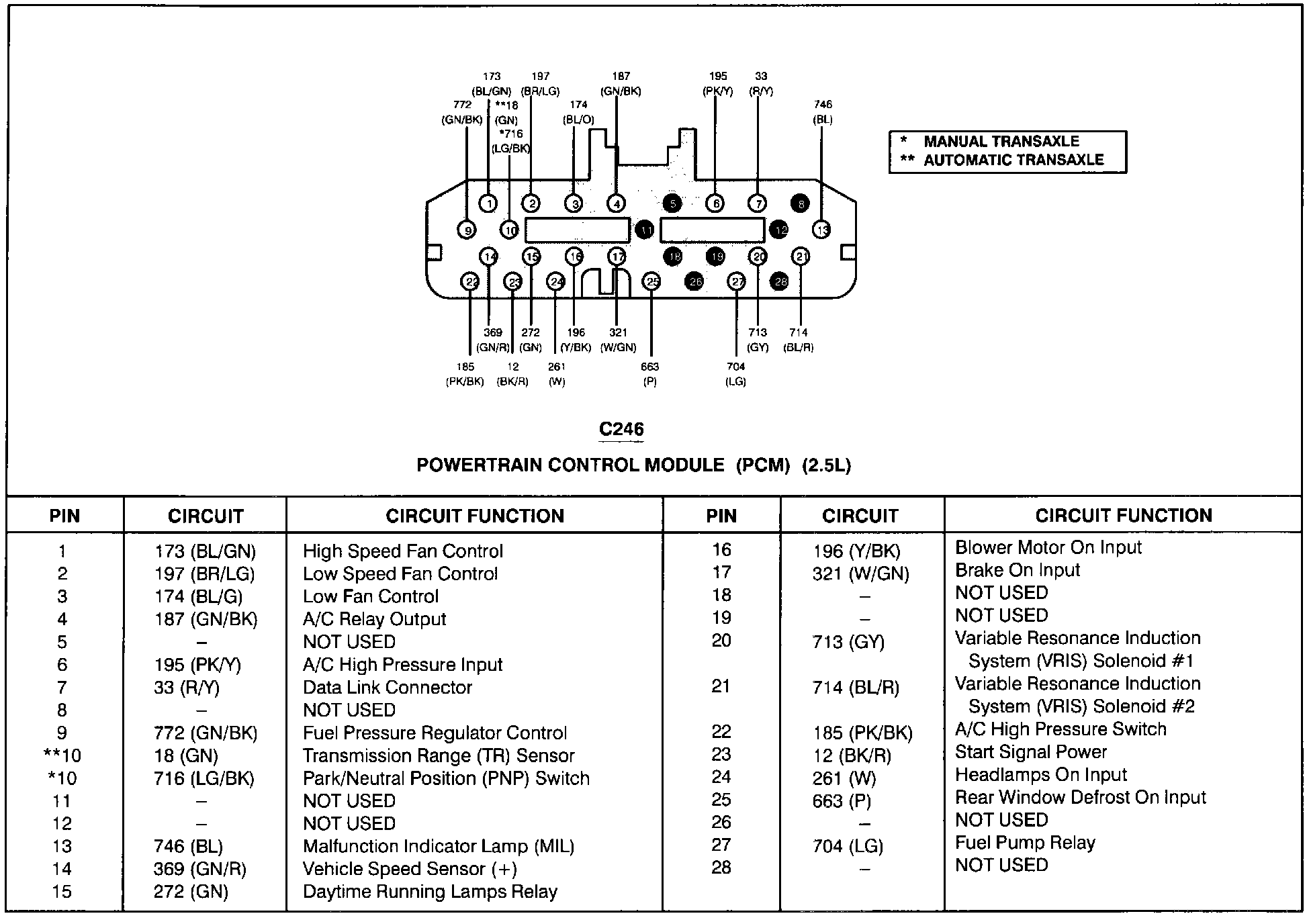

Powertrain Control Module (C246):

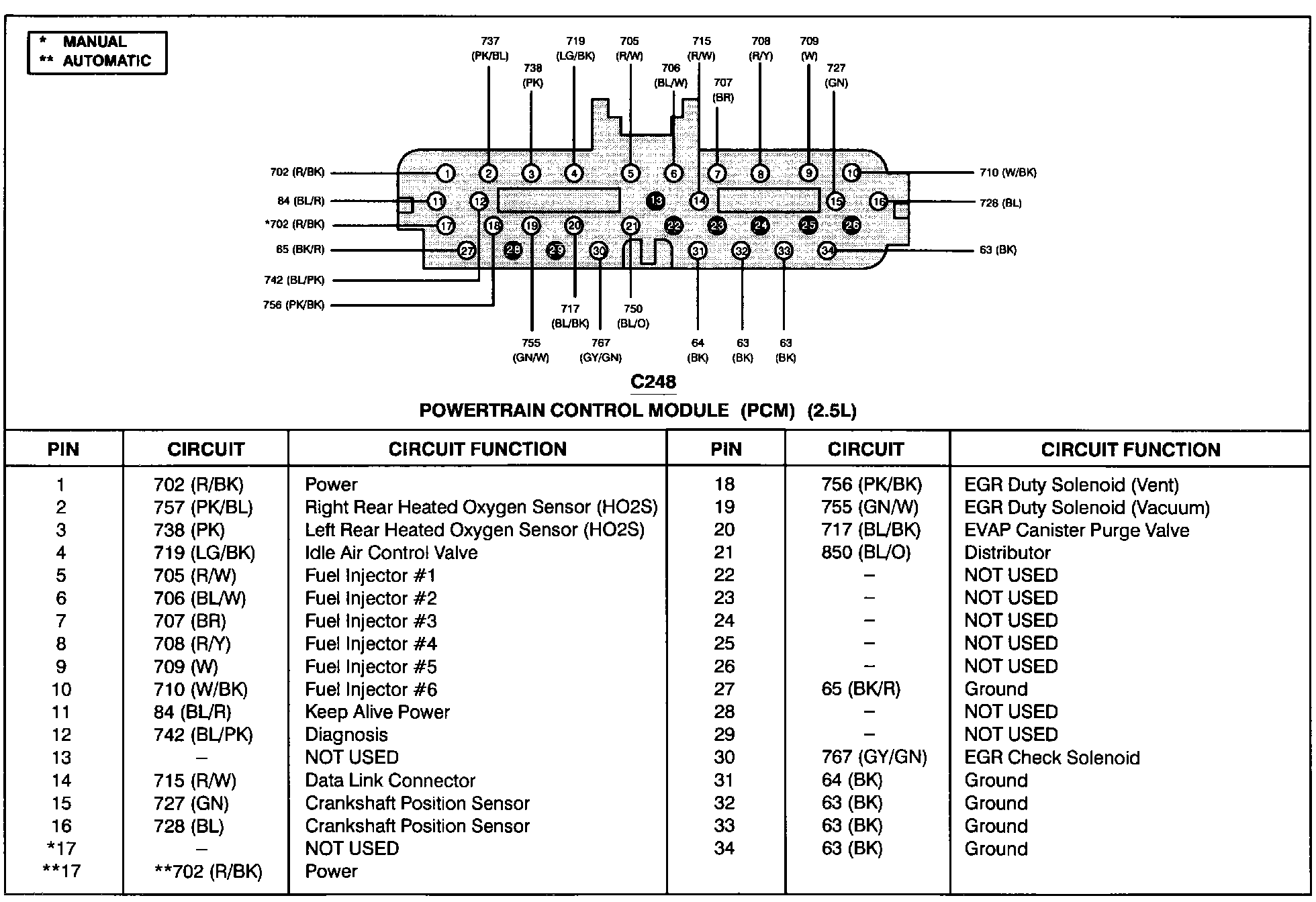

Powertrain Control Module (C248):

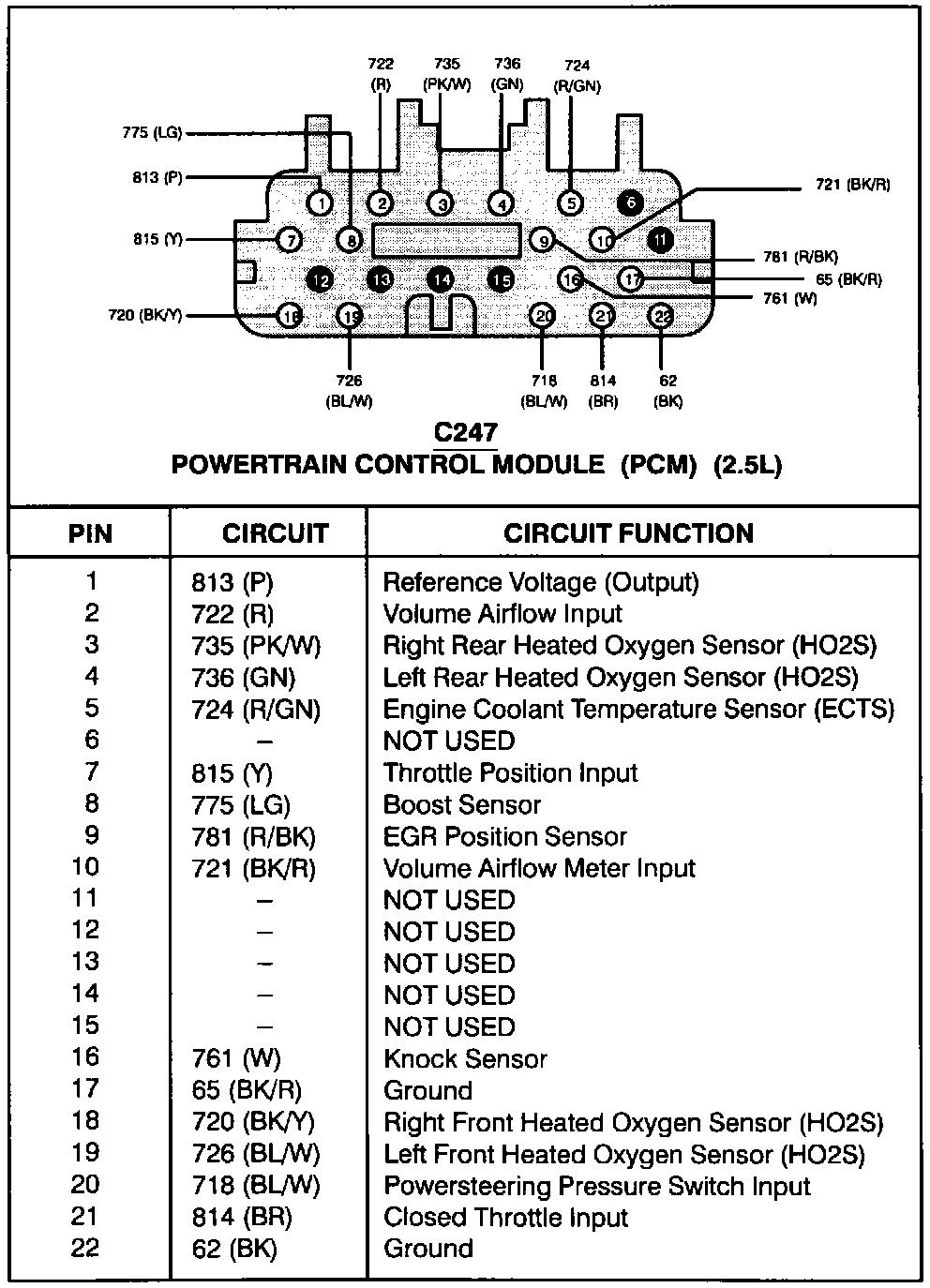

Powertrain Control Module (C247):
