Electronic Brake Control Module
Electronic Brake Control Module

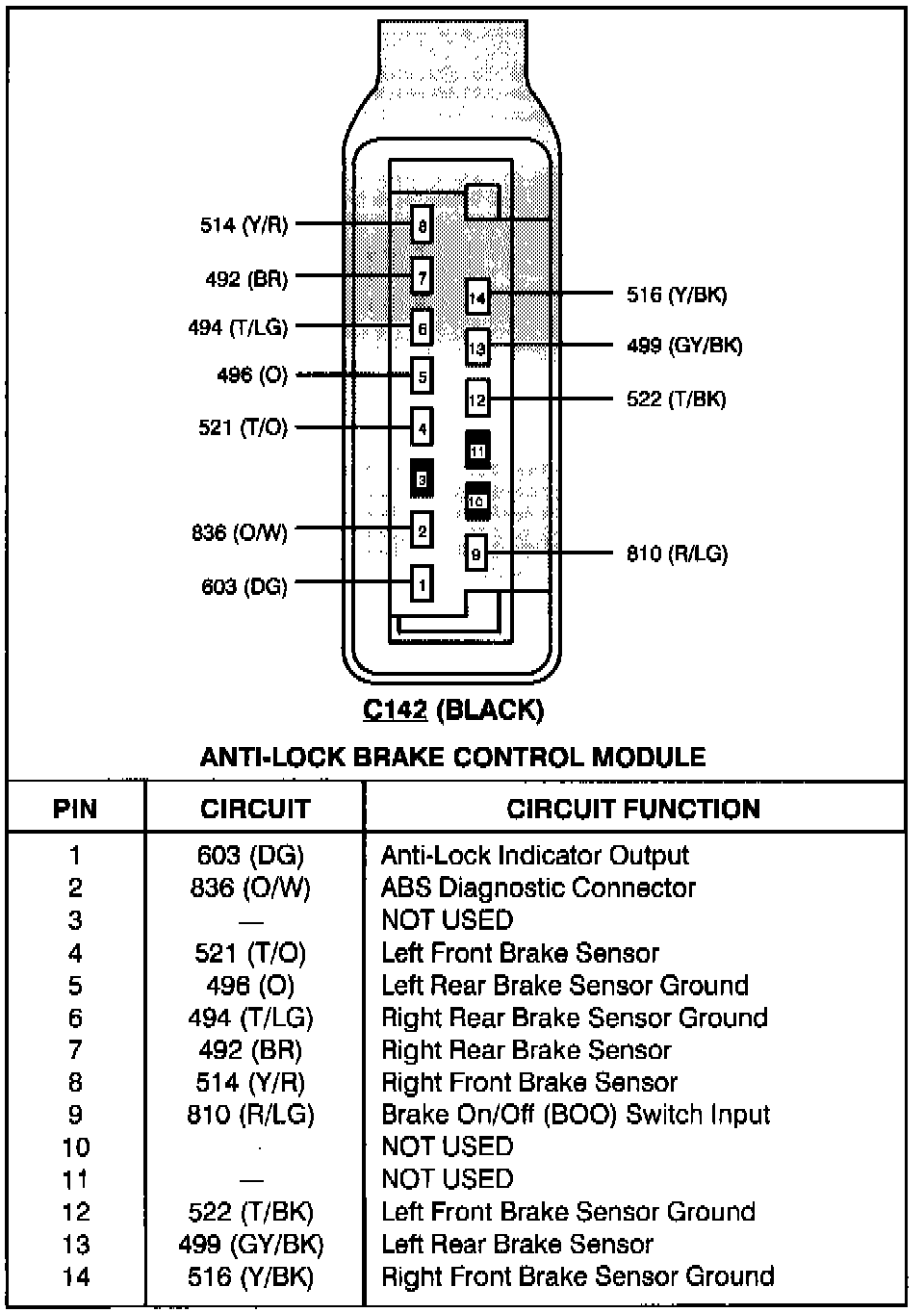

Anti-Lock Brake Control Module C142:

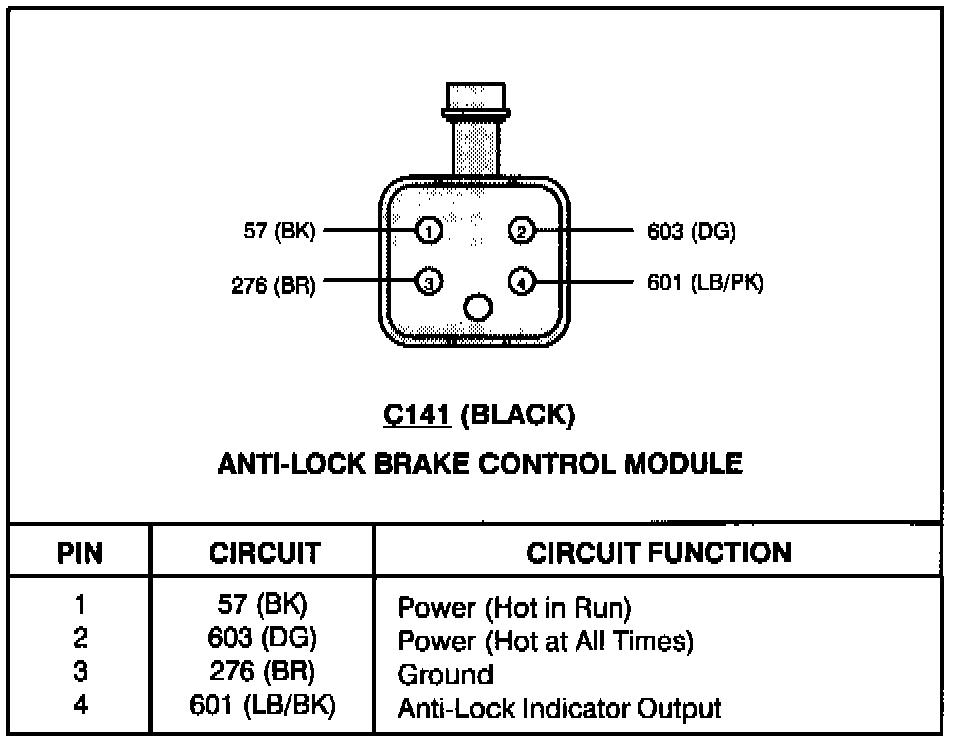

Anti-Lock Brake Control Module C141:
