Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

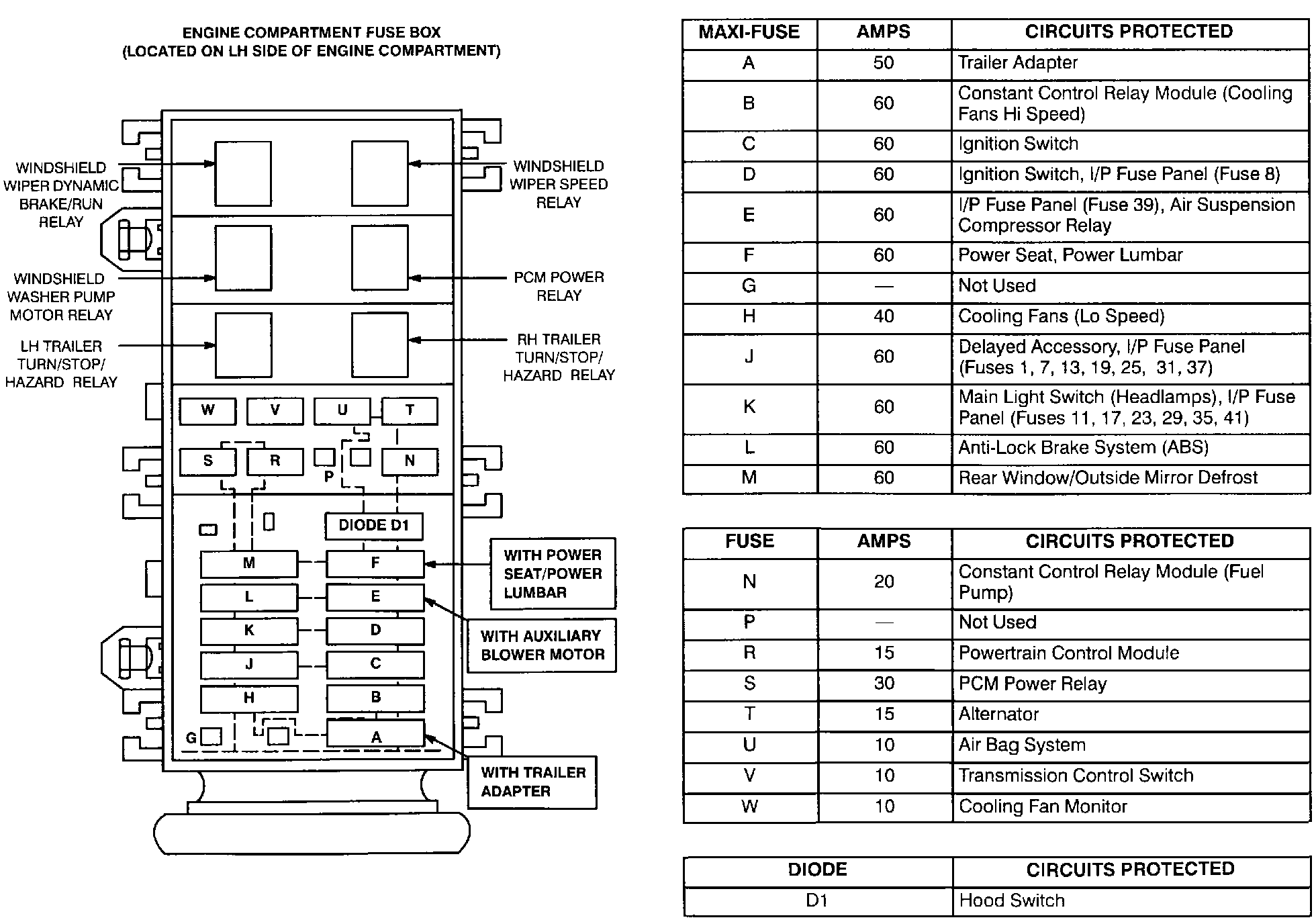

Engine Compartment Fuse Box:
Engine View:
The PCM Power Relay is located in engine compartment fuse box.
