Home >> Ford >> 1995 >> Windstar V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

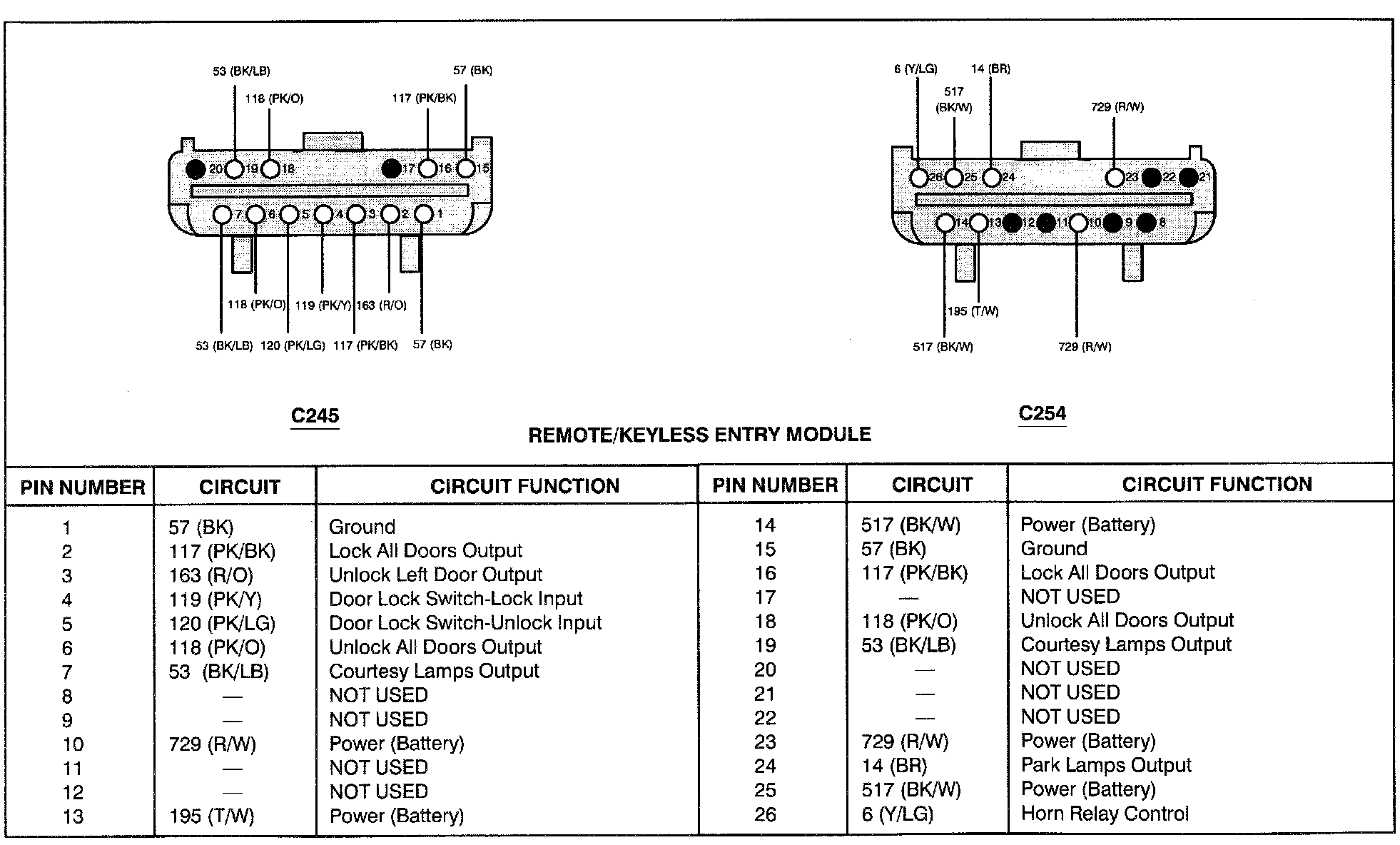

Remote/Keyless Entry Module (C245 & C254):

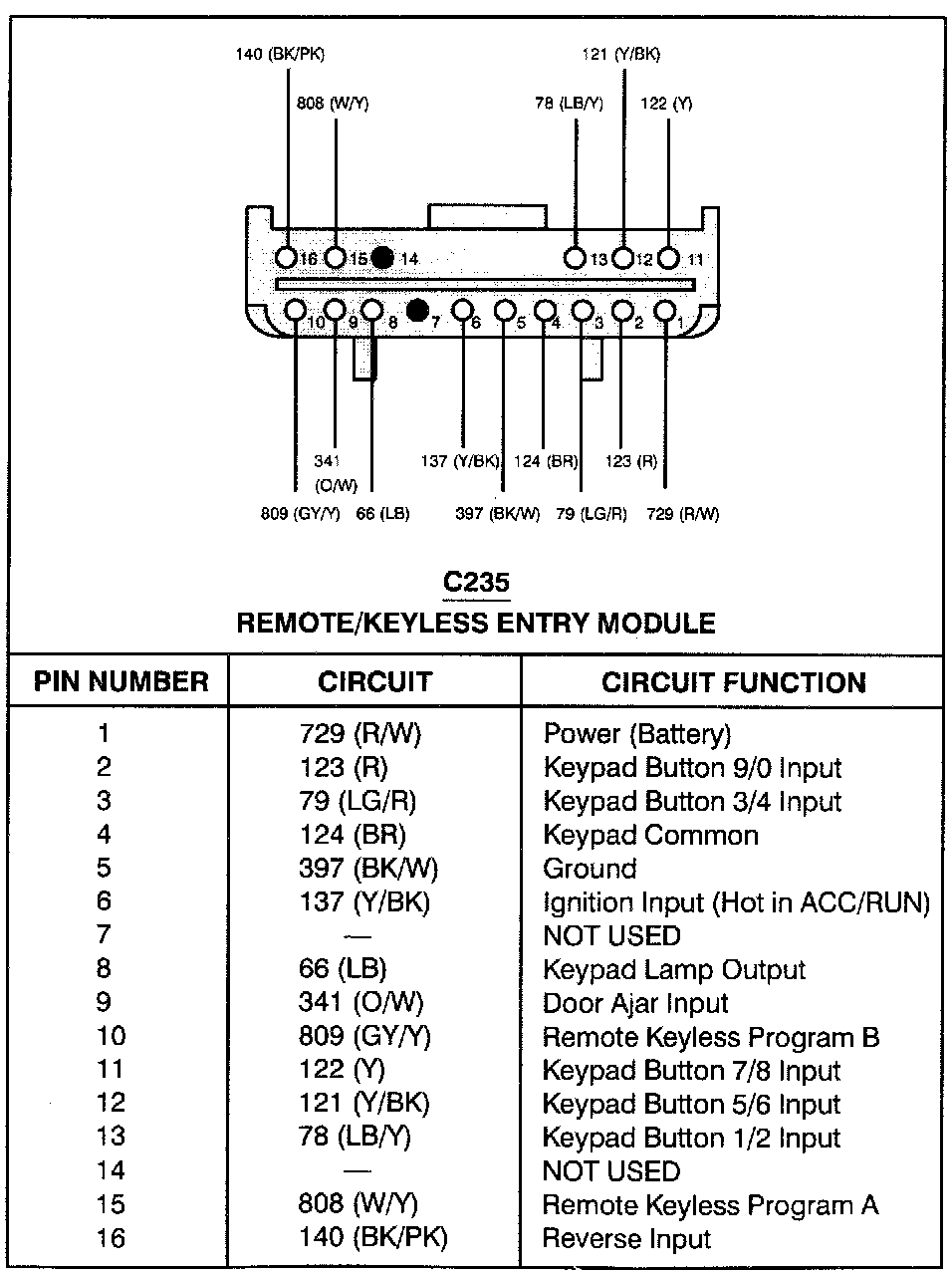

Remote/Keyless Entry Module (C235):
