Home >> Ford >> 1995 >> Windstar V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

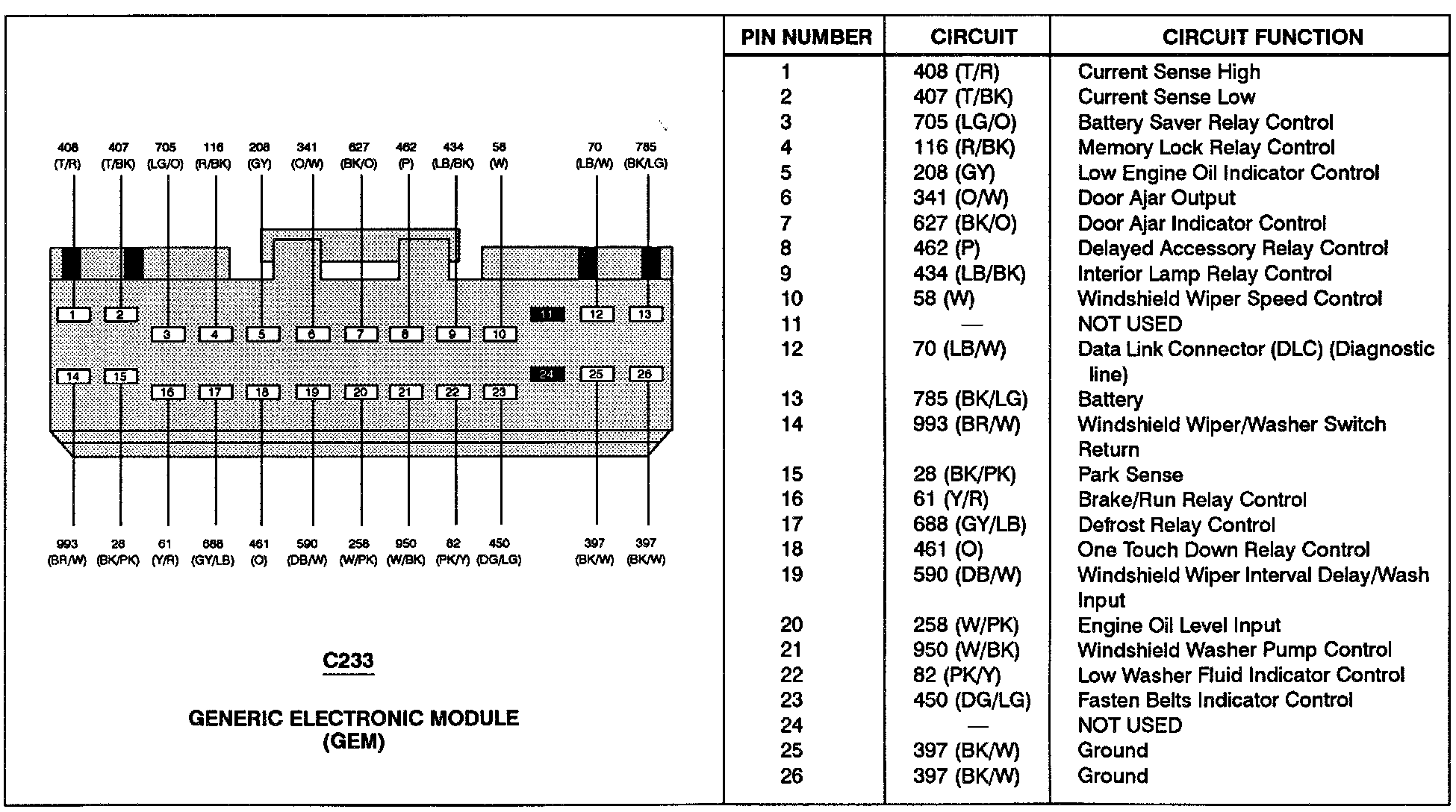

Generic Electronic Module (C233):

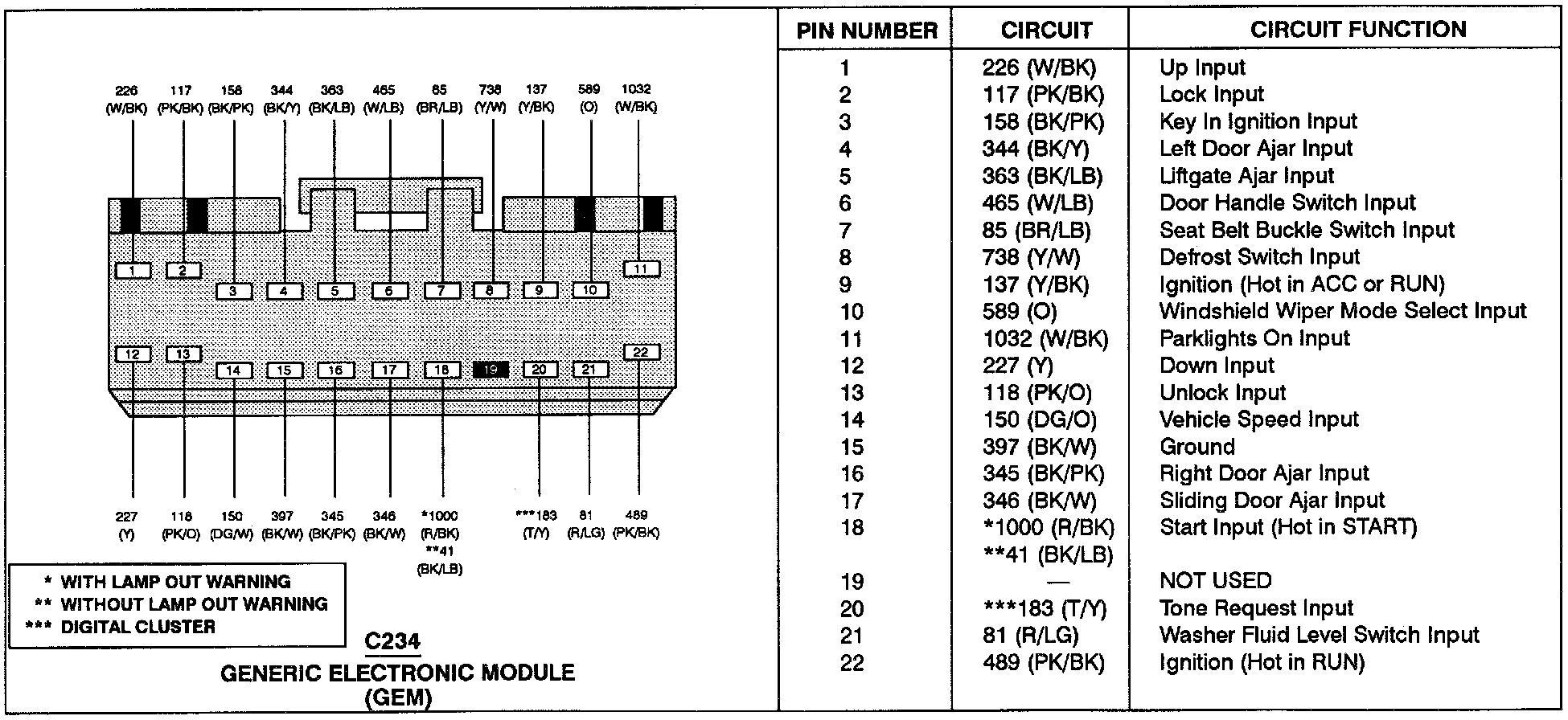

Generic Electronic Module (C234):

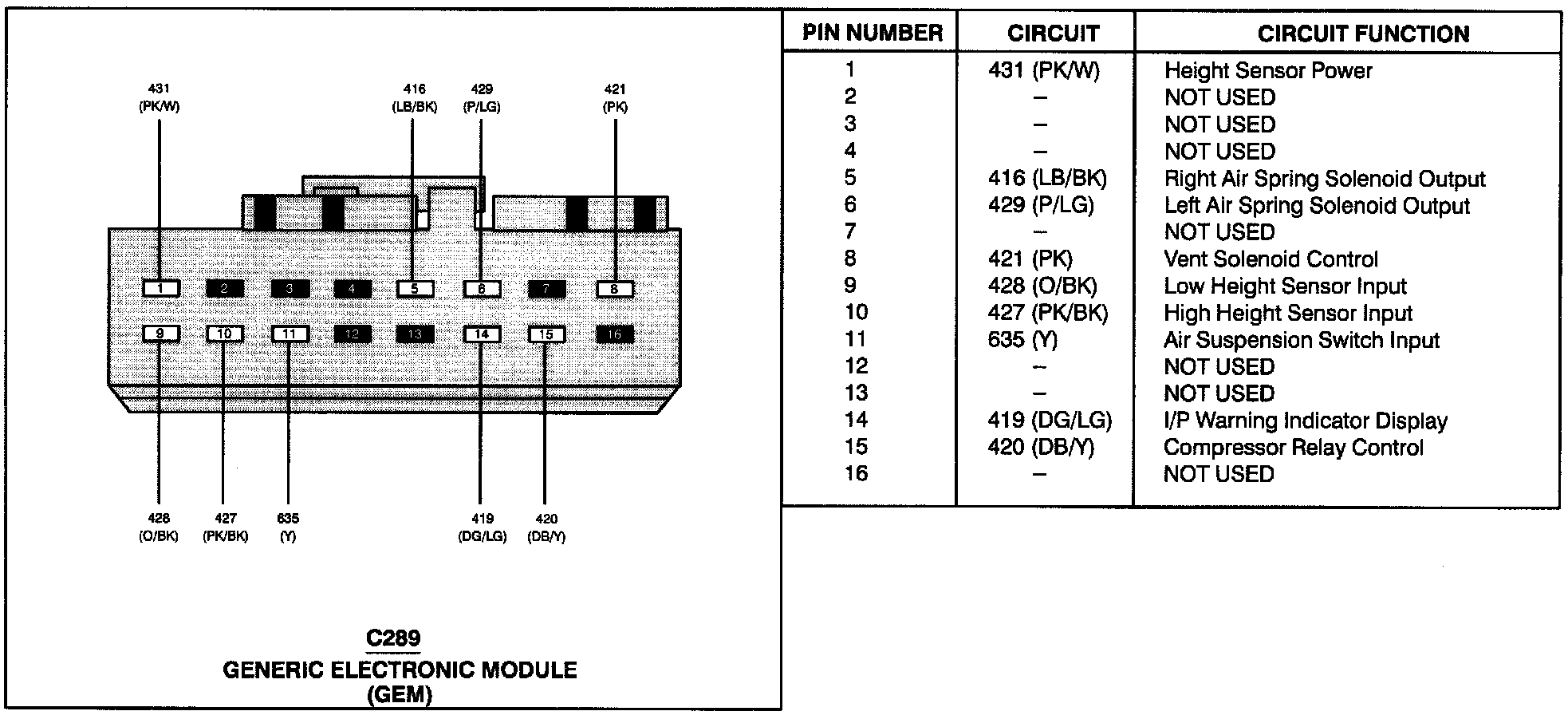

Generic Electronic Module (C289):
