Connector Pin Usage

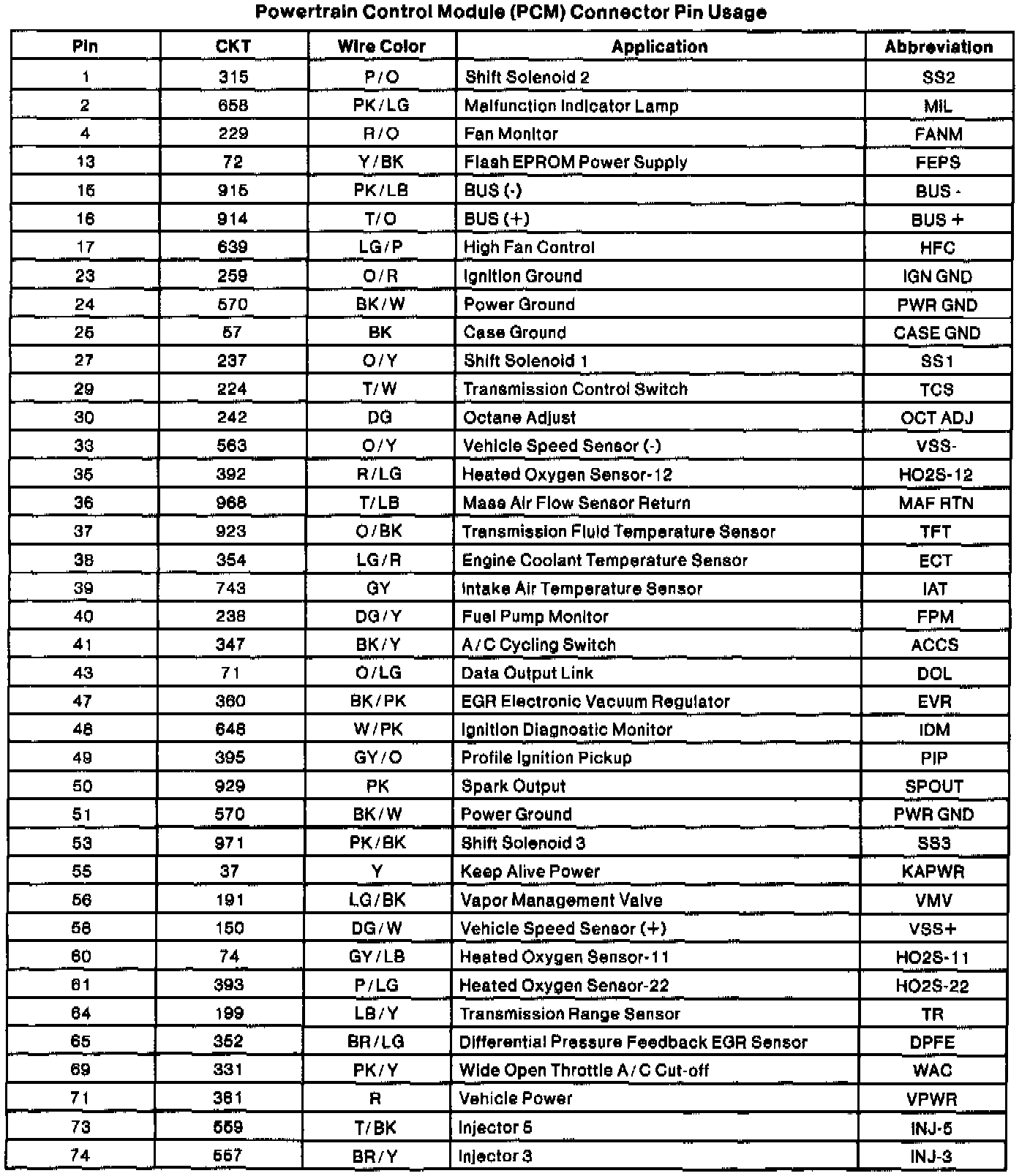

Powertrain Control Module (PCM) Connector Pin Usage (Part 1 Of 2):

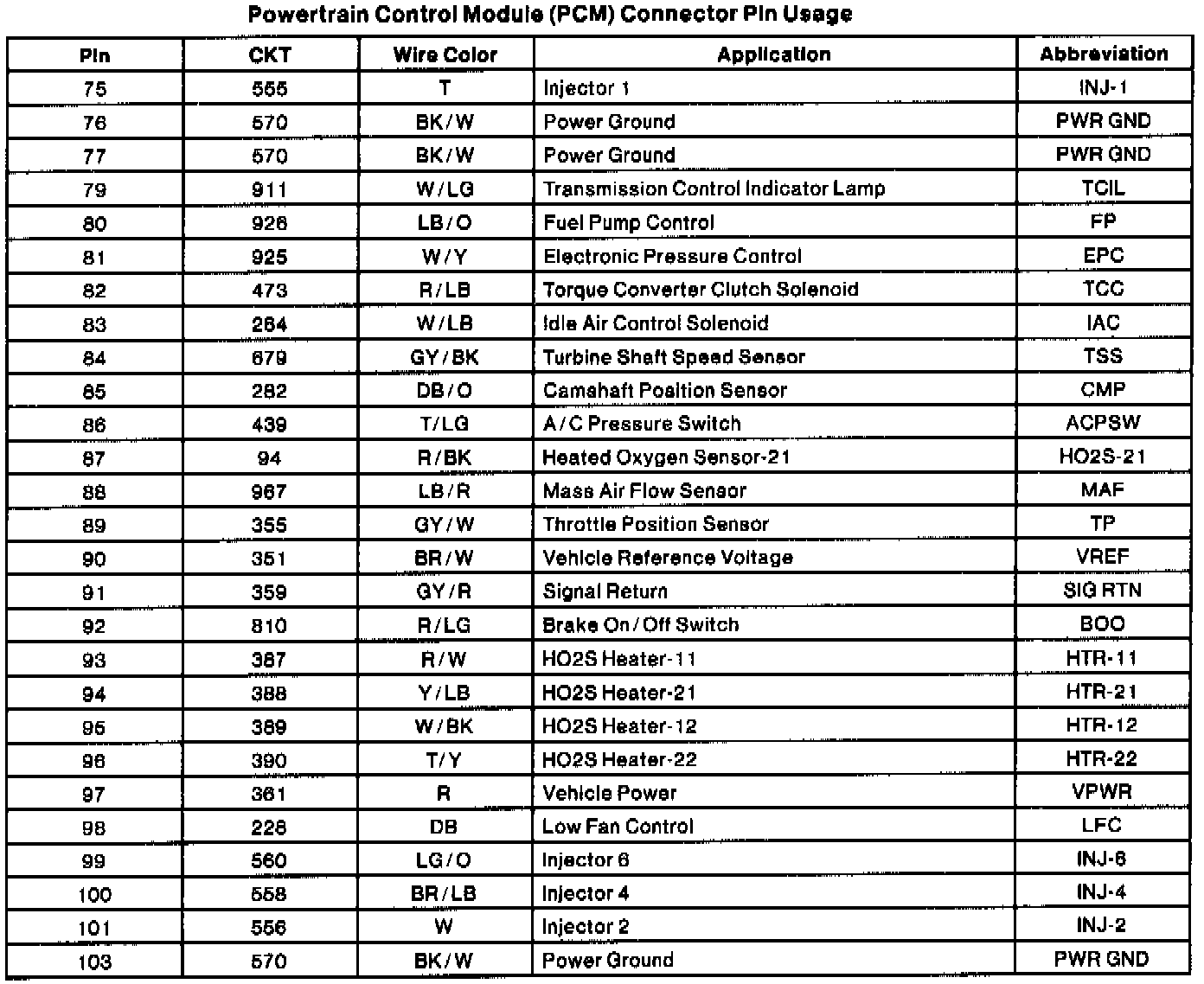

Powertrain Control Module (PCM) Connector Pin Usage (Part 2 Of 2):
