Ignition Control Module
>>
With Electronic Ignition
With Electronic Ignition

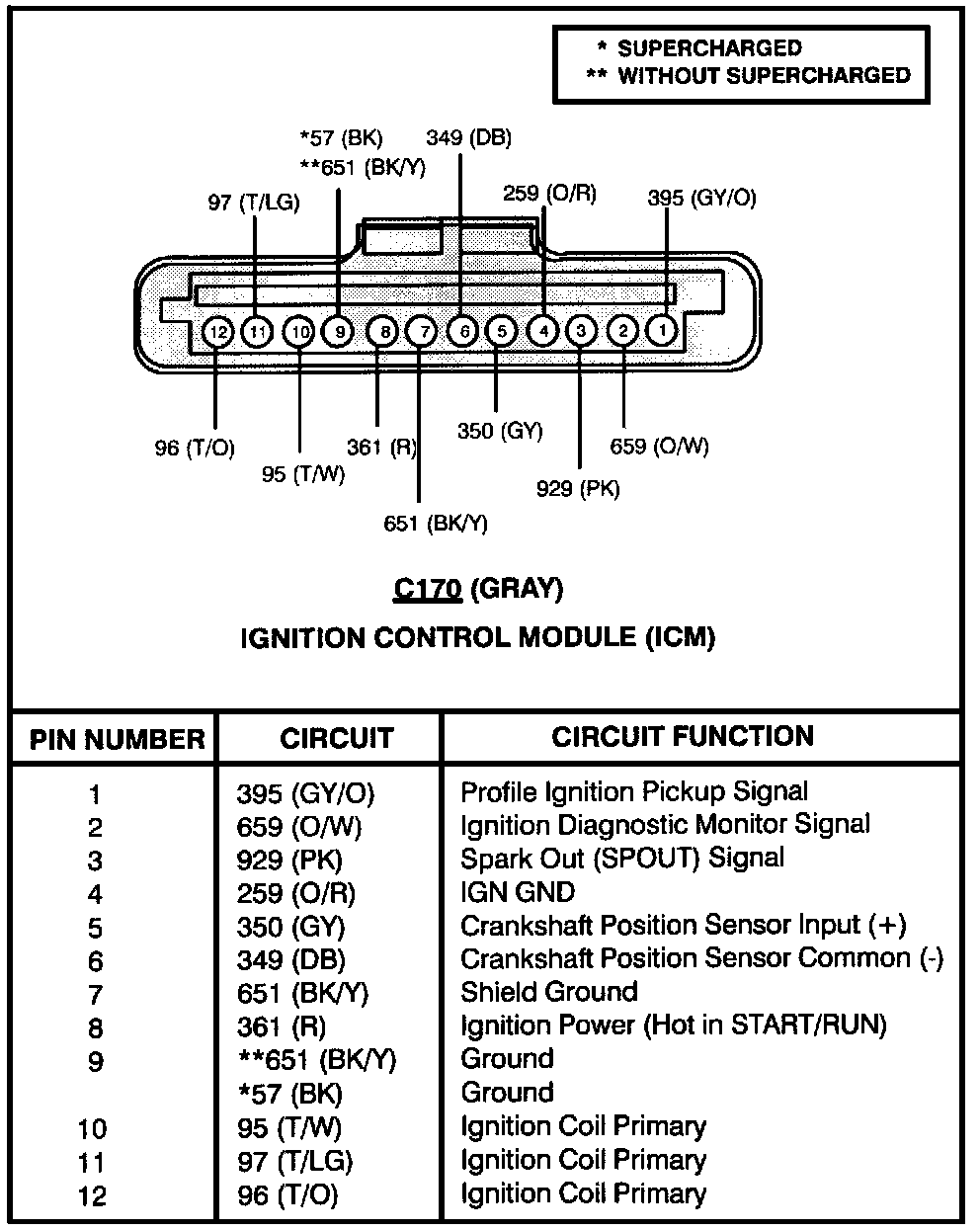

Ignition Control Module:
Connector View

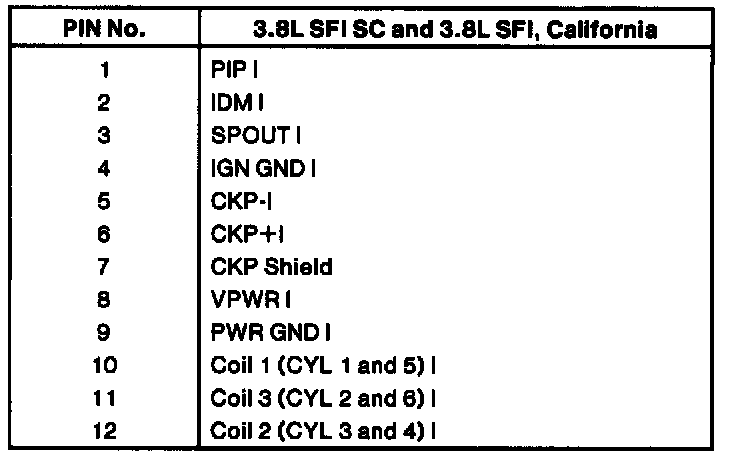

Electronic Distributorless Ignition System (EDIS) Module:
Ignition Control Module
(ICM)
Pin-Out
