Ford
>>
1995
>>
Thunderbird V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
>>
With Distributor Ignition
With Distributor Ignition

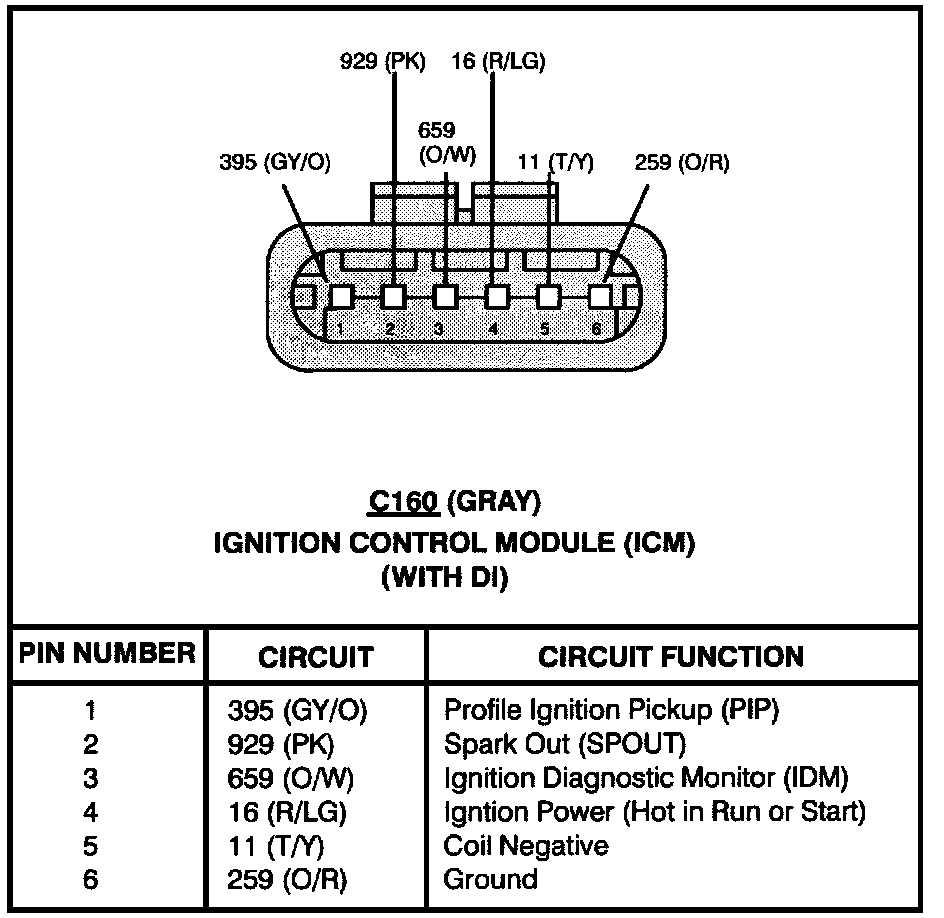

Ignition Control Module (With Distributor Ignition):
