Electronic Climate Control Module
Electronic Climate Control Module

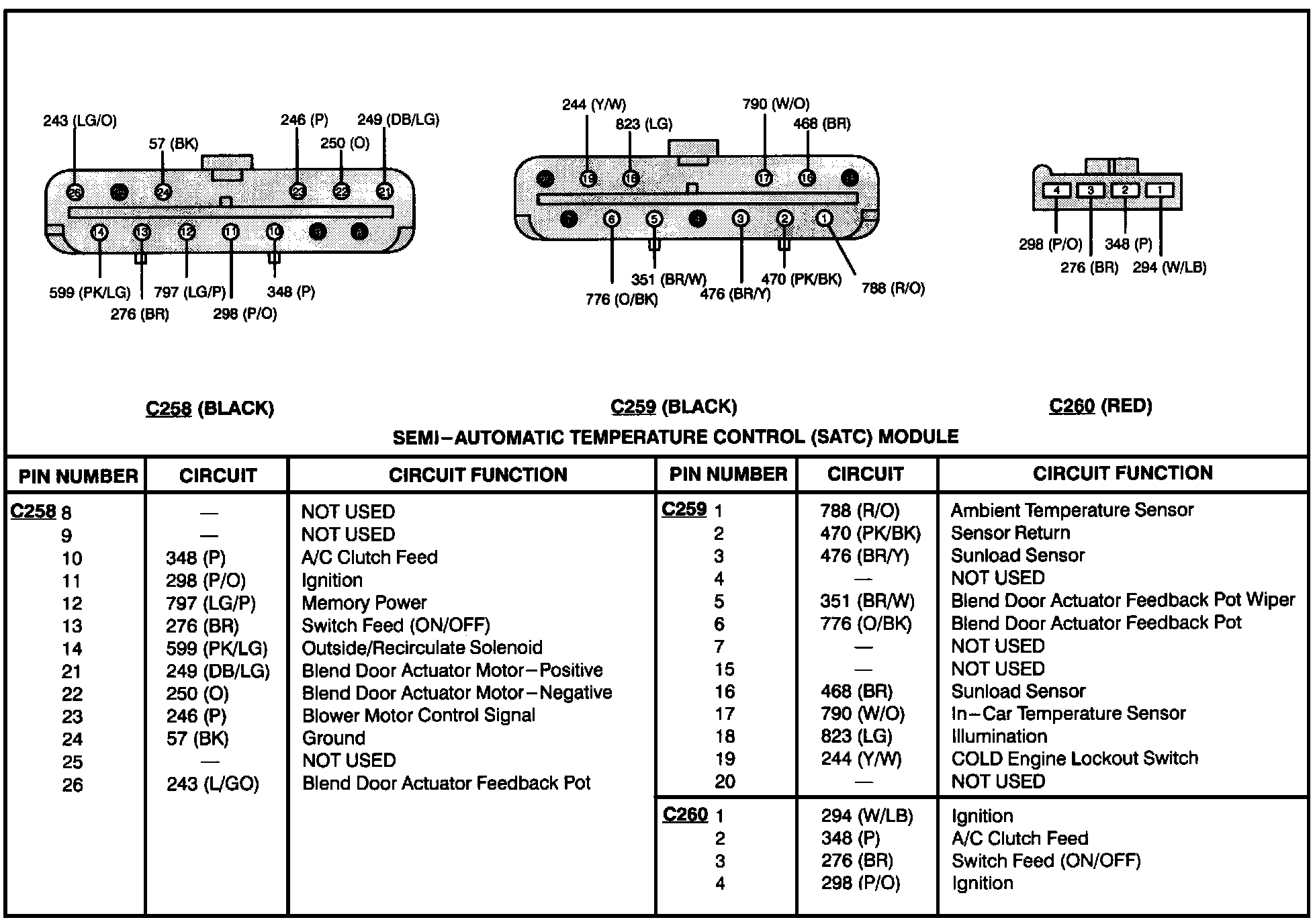

Semi-Automatic Temperature Control Module:
