Transmission Temperature Sensor/Switch, A/T
Transmission Temperature Sensor/Switch, A/T
Sensor Output Graph:
TRANSMISSION FLUID TEMPERATURE SENSOR GRAPH
Sensor Output Graph:

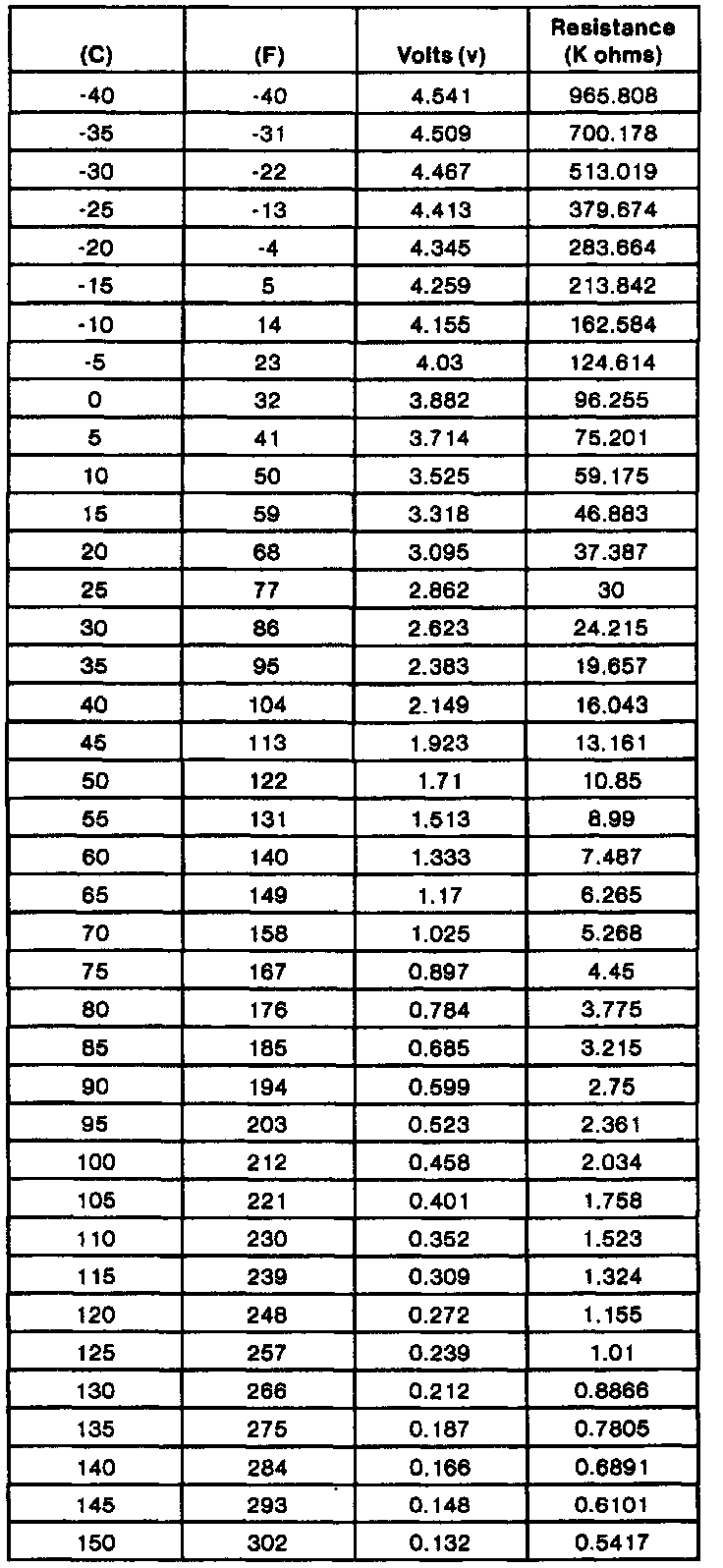

TEMPERATURE/VOLTAGE/RESISTANCE TABLE
