Oscilloscope Patterns and Waveforms
Oscilloscope Patterns and Waveforms

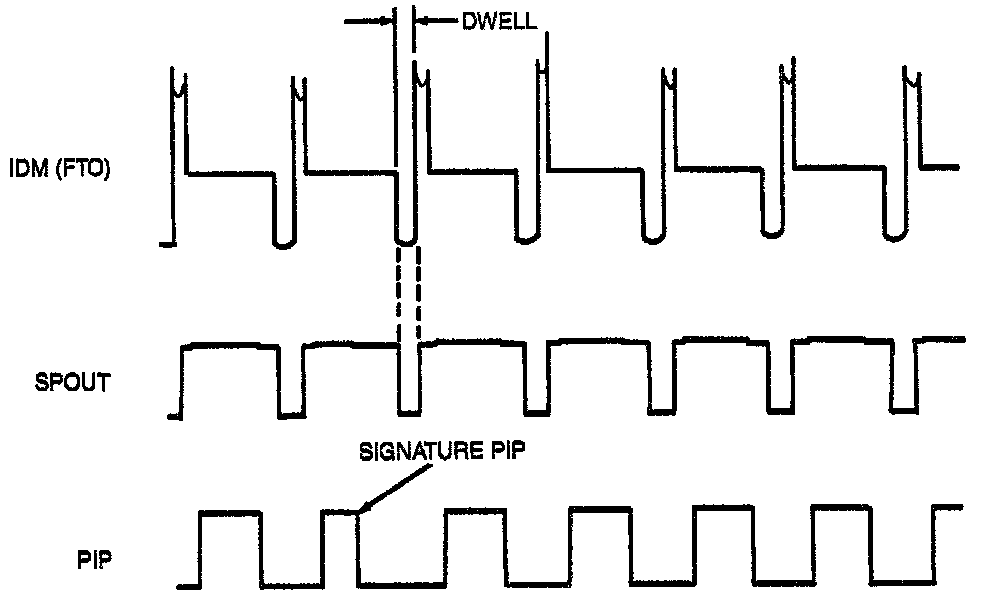

Push Start ICM Waveforms:
Push Start ICM Waveforms

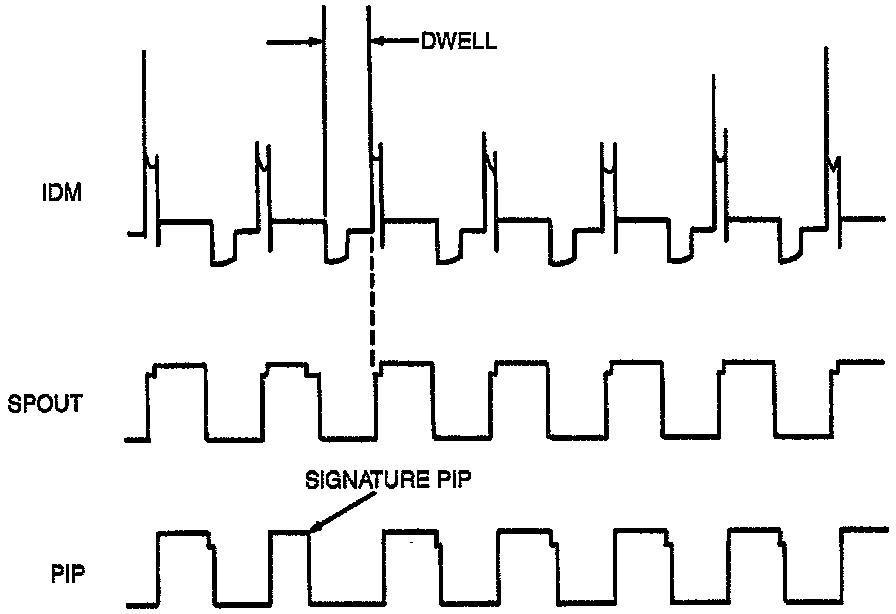

Computer Controlled Dwell ICM Waveforms:
Computer Controlled Dwell (CCD) ICM Waveforms
