Vehicle Speed Sensor: Locations

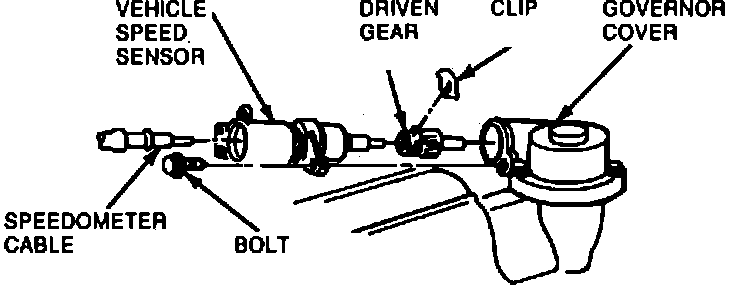

Fig. 24 Speed Sensor Replacement w/AXOD Transaxle:

Engine View:

The Vehicle Speed Sensor (VSS), (C1043), is located at the lower LH rear of engine, on the transaxle.
