Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams >> Connector Views

Connector Views

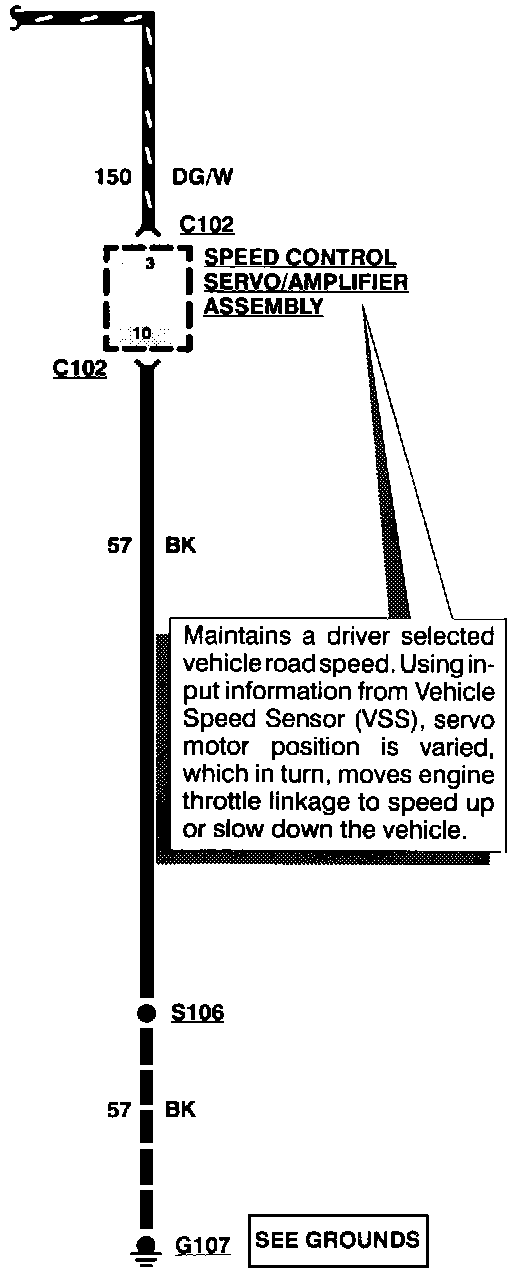

Vehicle Speed Sensor (Part 1 0f 2):

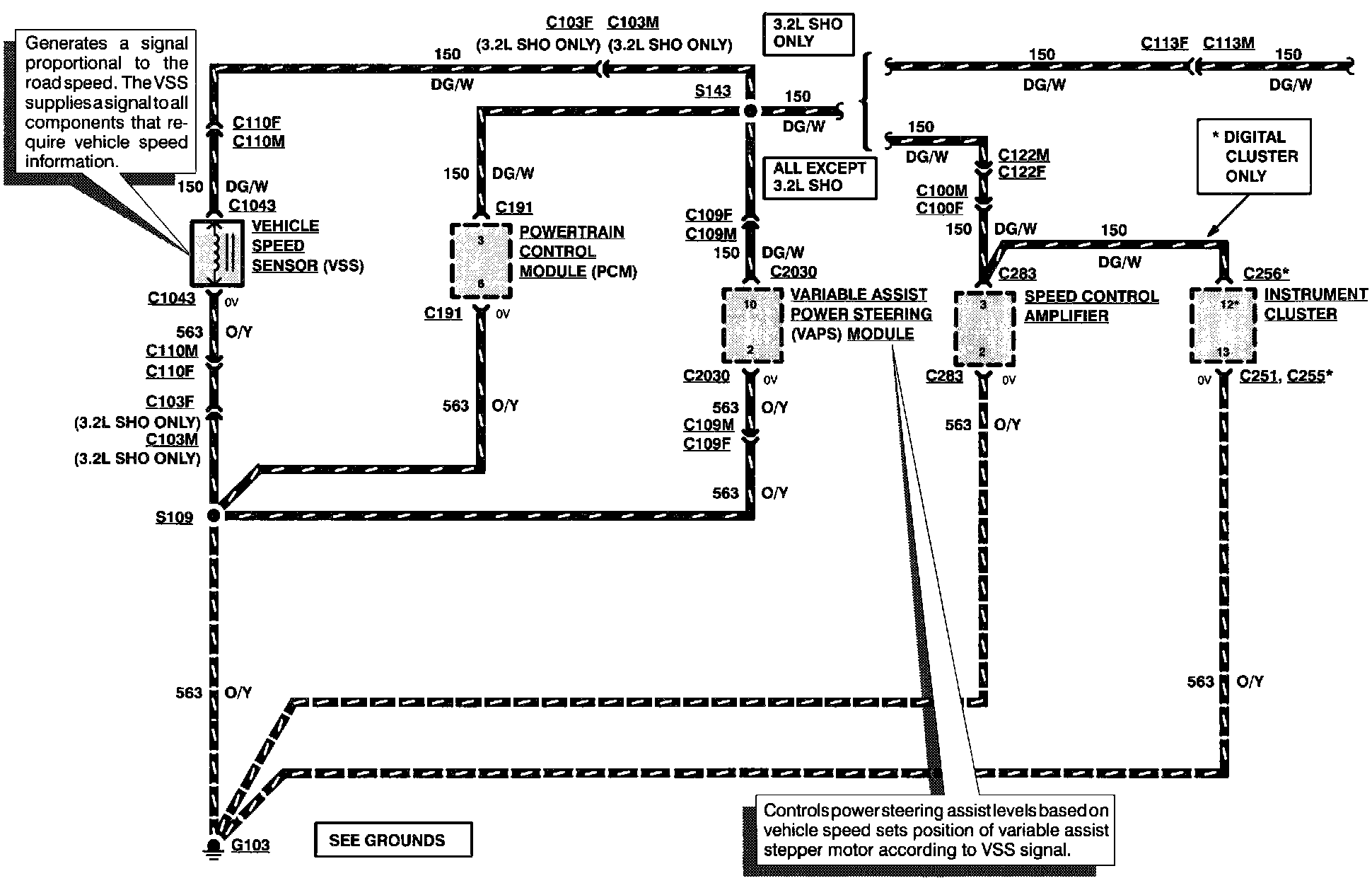

Vehicle Speed Sensor (Part 2 Of 2):

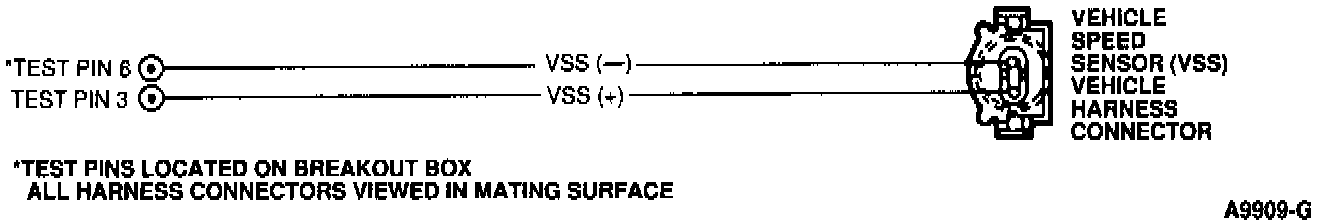

Vehicle Speed Sensor:
