Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

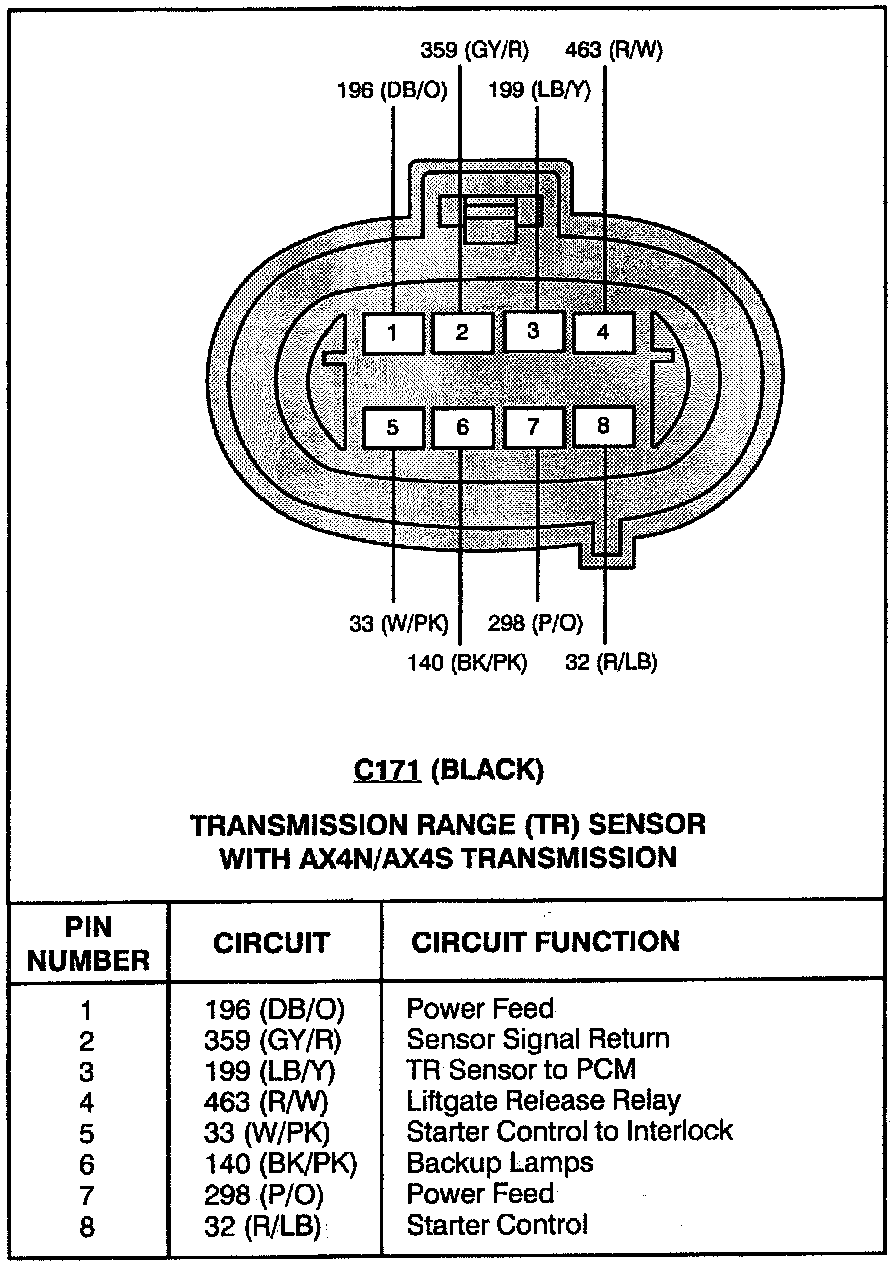

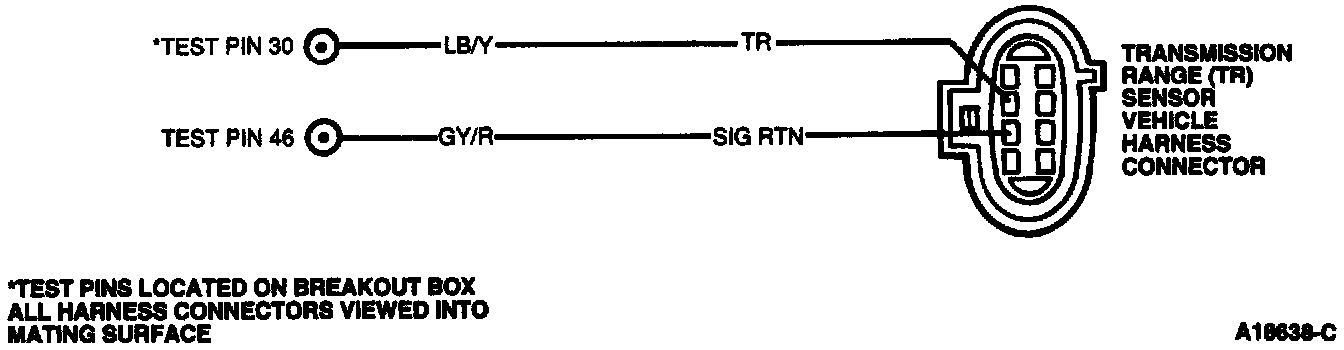

Transmission Range Sensor (With AX4N/AX4S Transmission):



Transmission Range Sensor (With AX4N/AX4S Transmission):

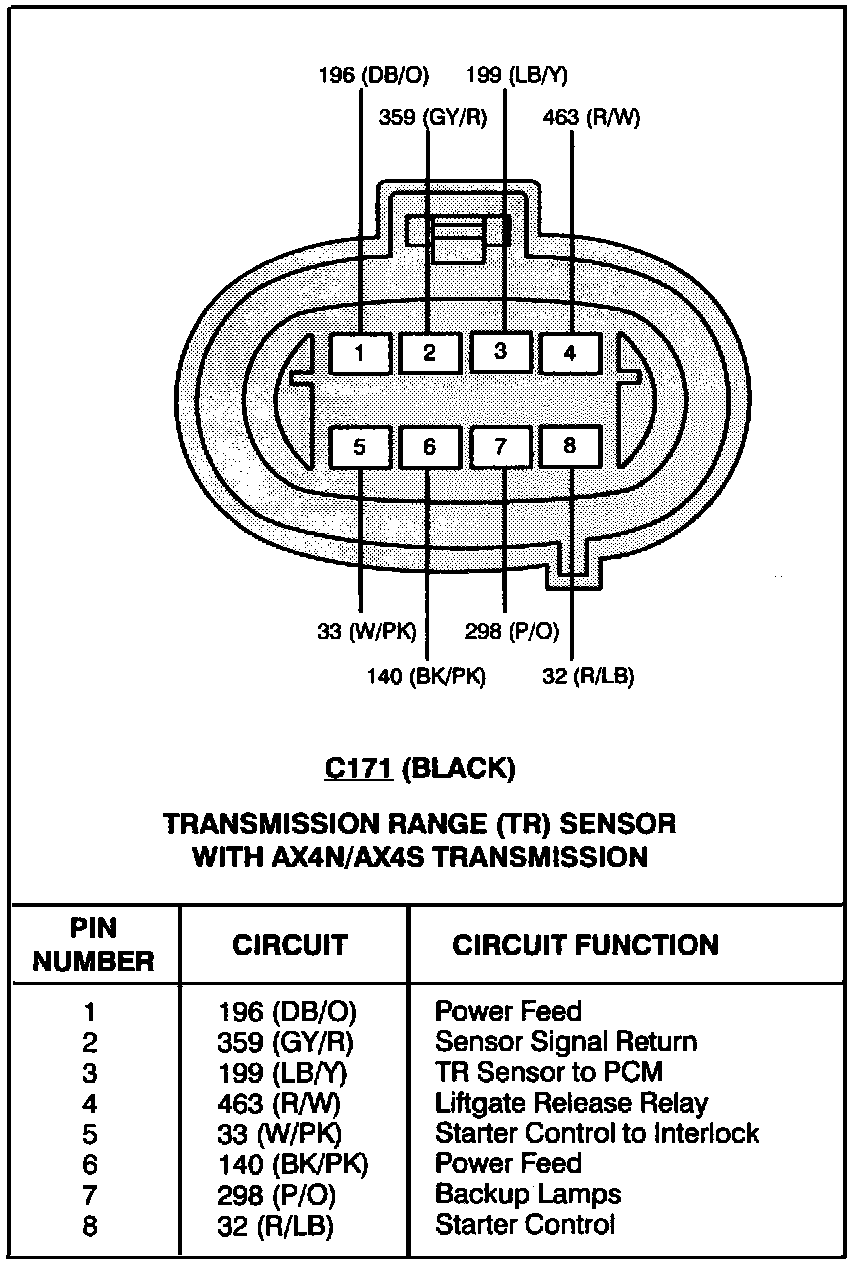

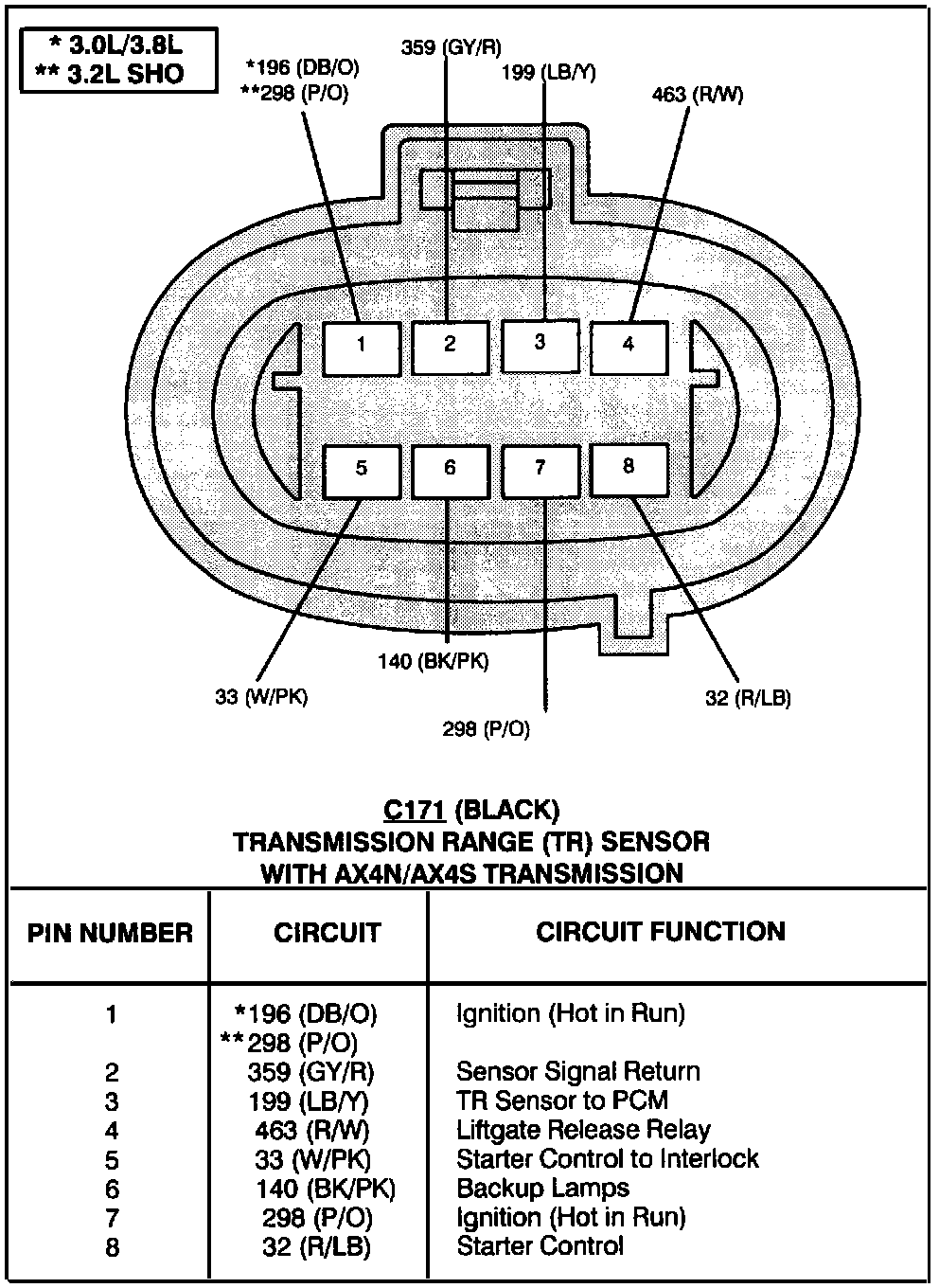

Connector View:



Connector View:
