Air Flow Meter/Sensor: Diagrams

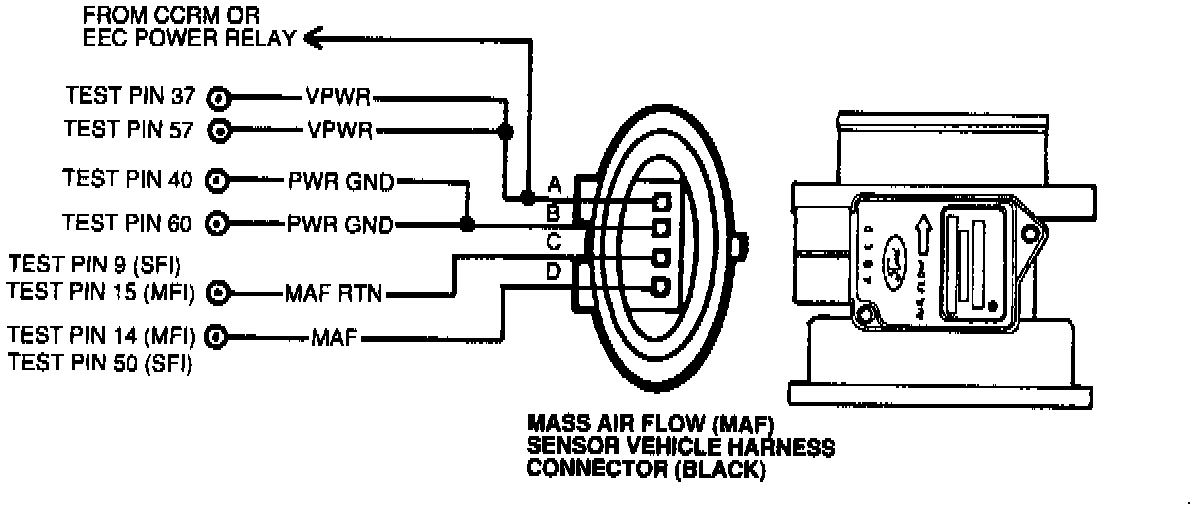

Black Connector Testing Schematic:
BLACK CONNECTOR

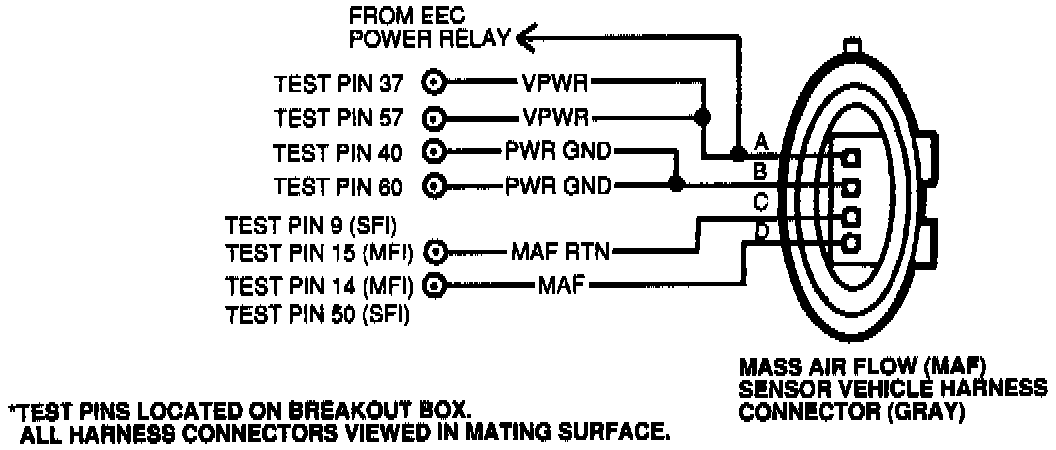

Gray Connector Testing Schematic:
GRAY CONNECTOR
