Ford
>>
1995
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Master Window Control Switch

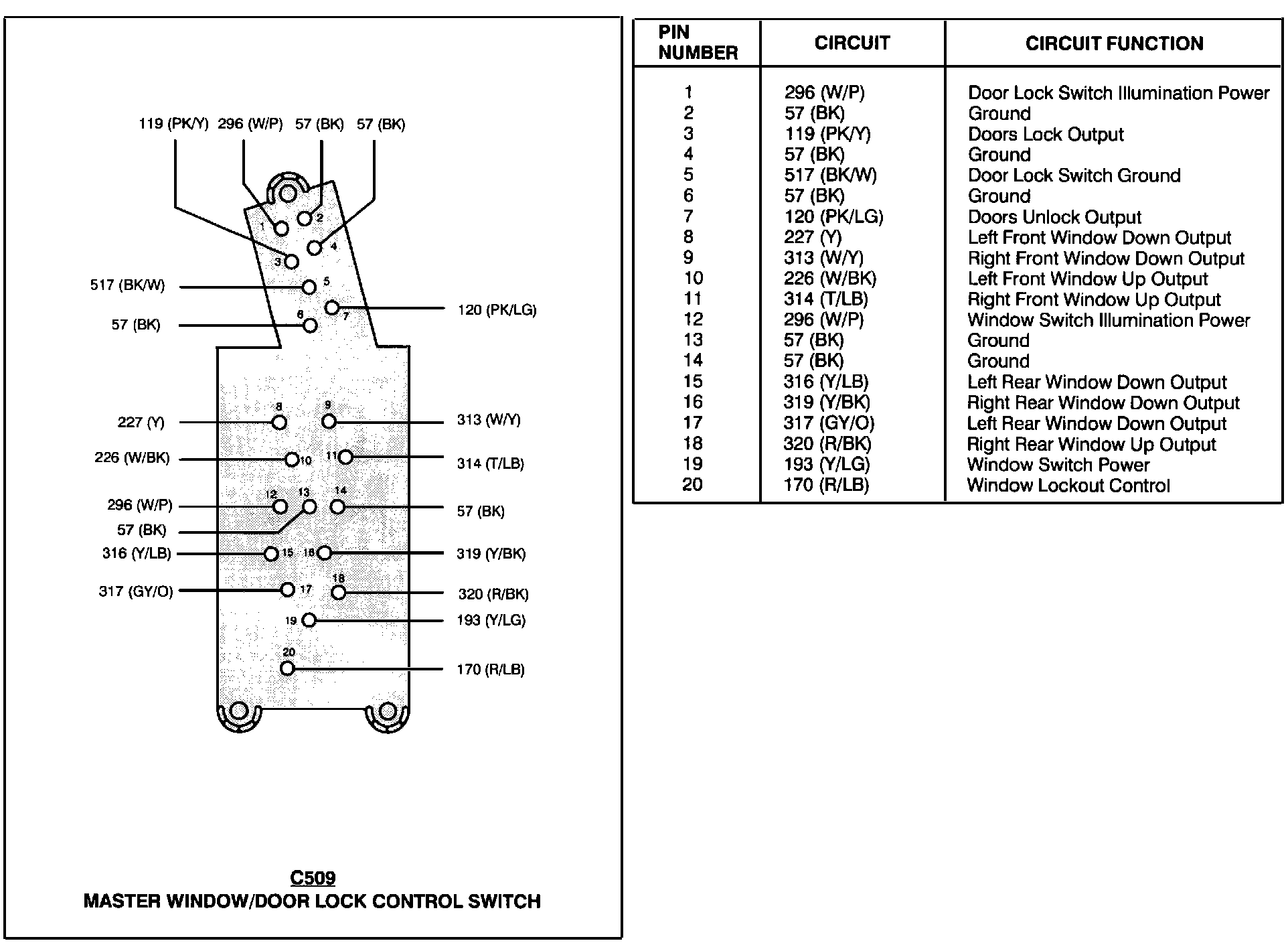

Master Window Control Switch

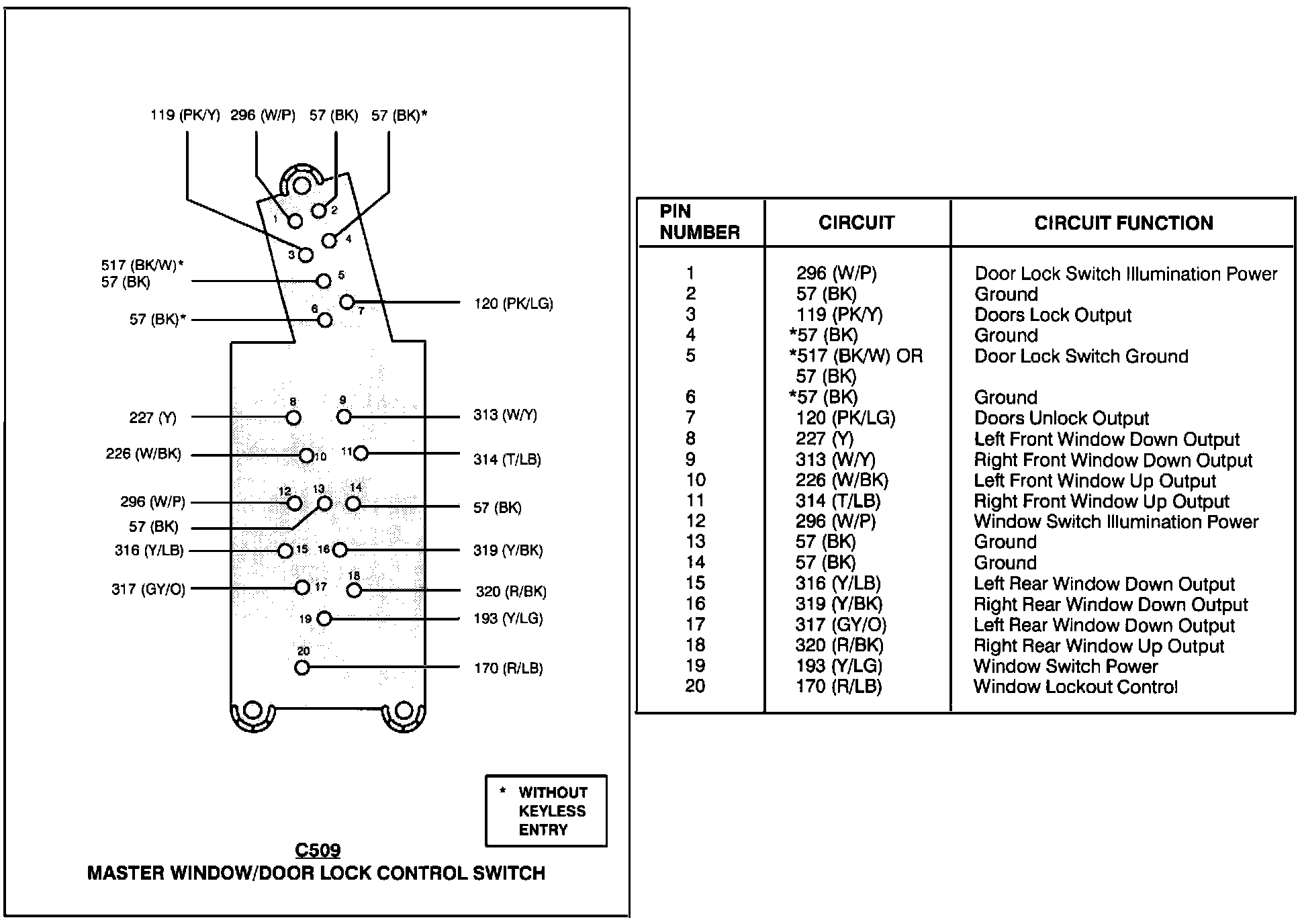

Master Window/Door Lock Control Switch:

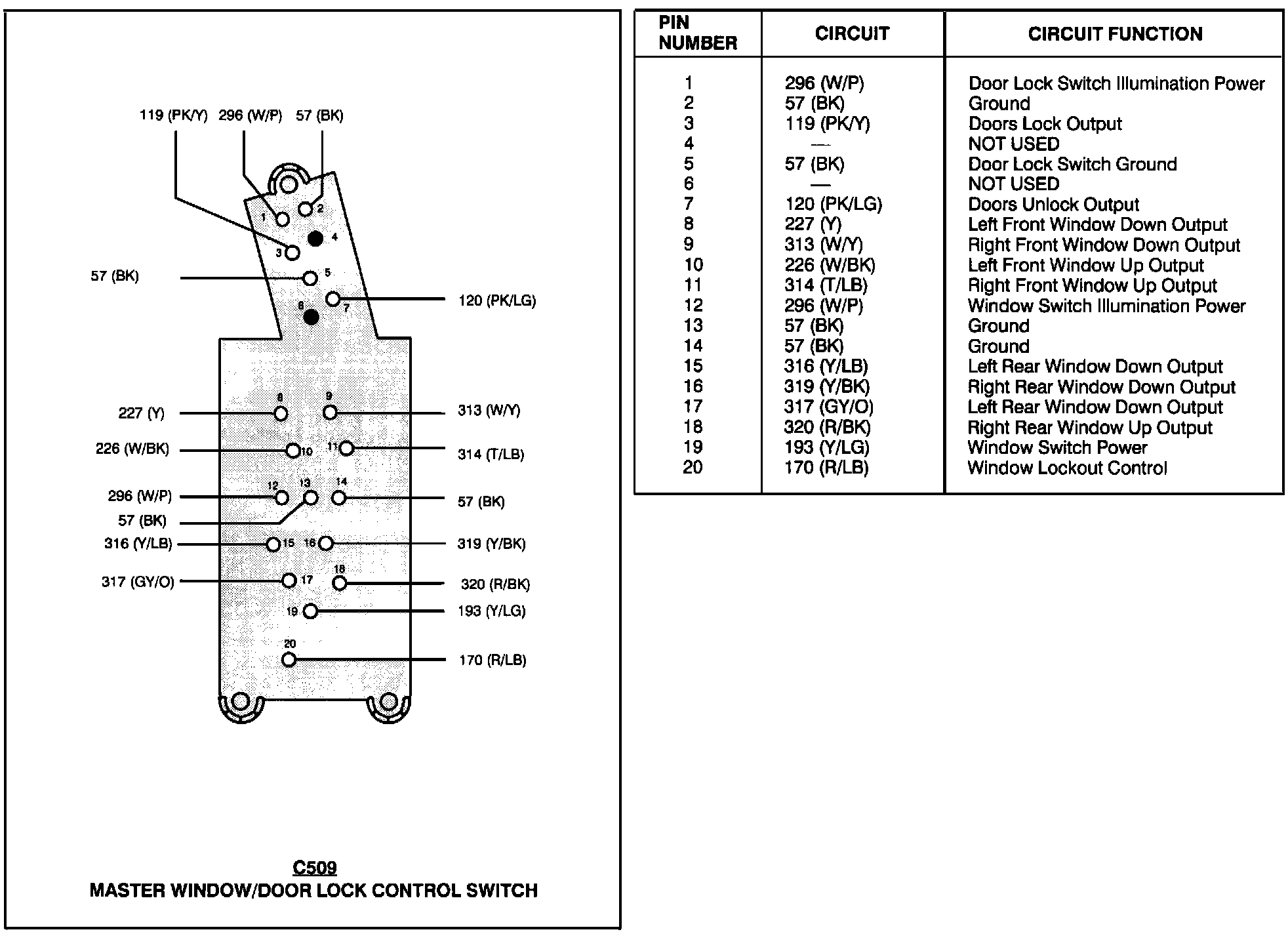

Master Window/Door Lock Control Switch:
Master Window/Door Lock Control Switch:
