Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

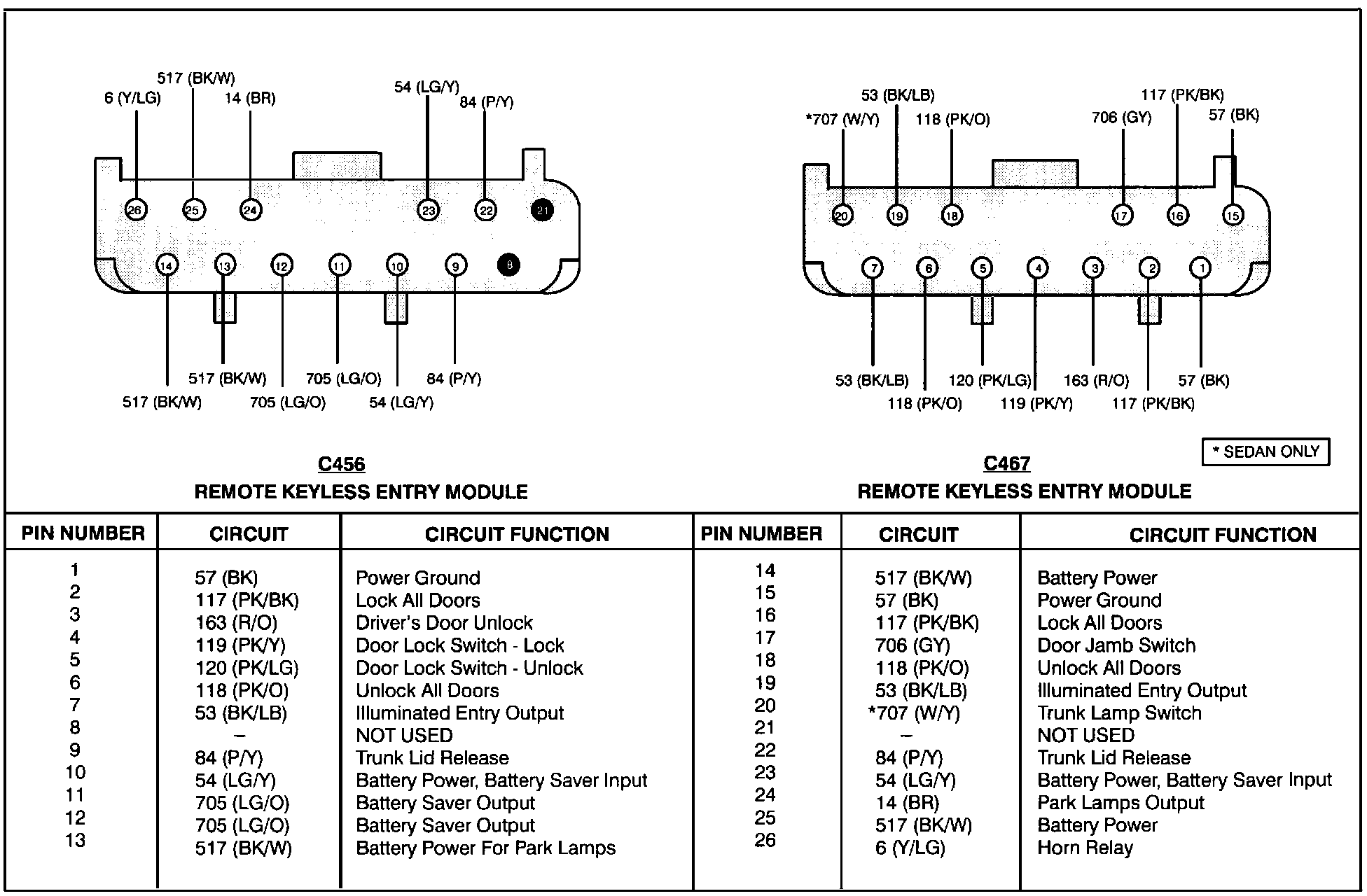

Remote Keyless Entry Module (C456 & C467):

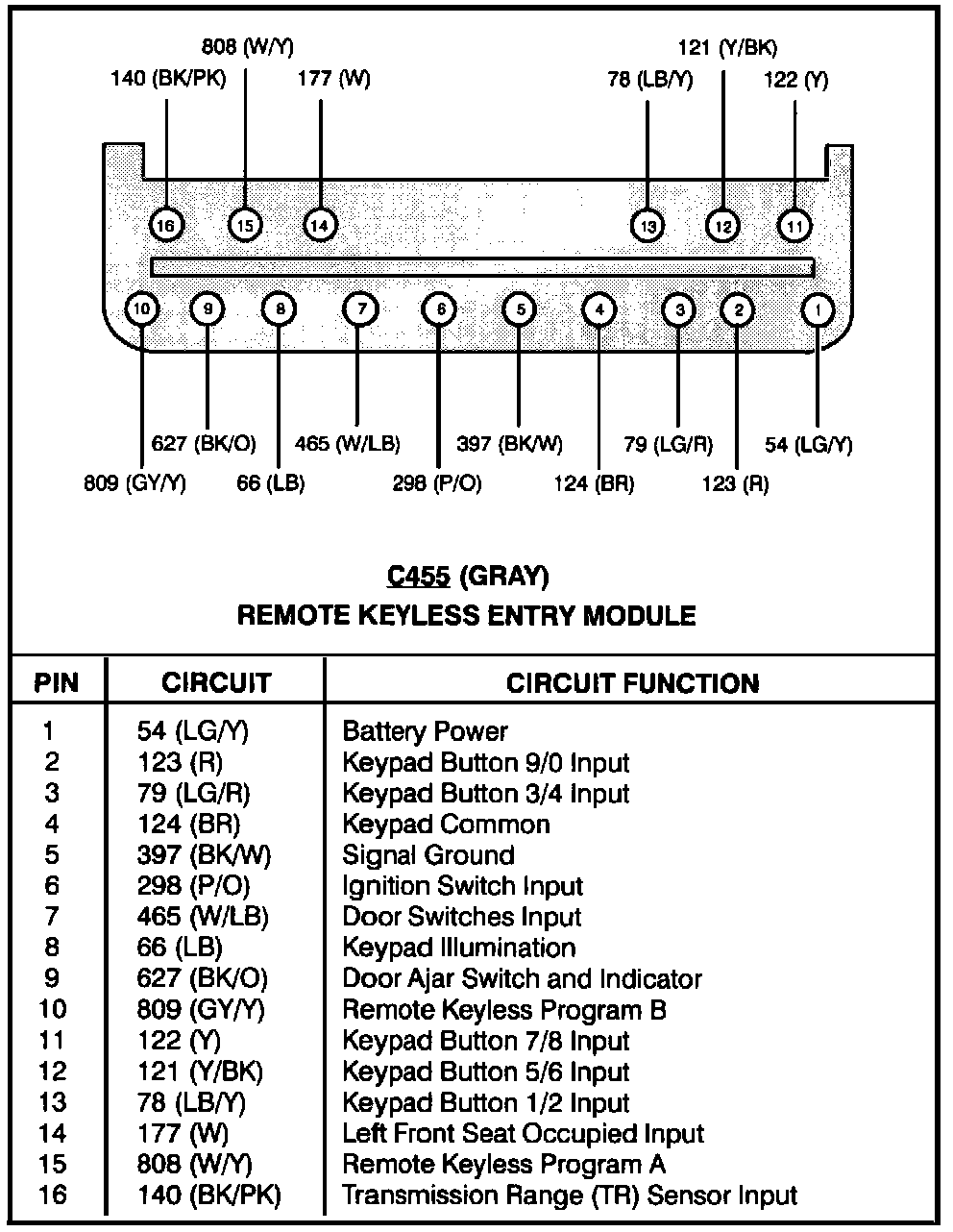

Remote Keyless Entry Module (C455):
