Ford
>>
1995
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

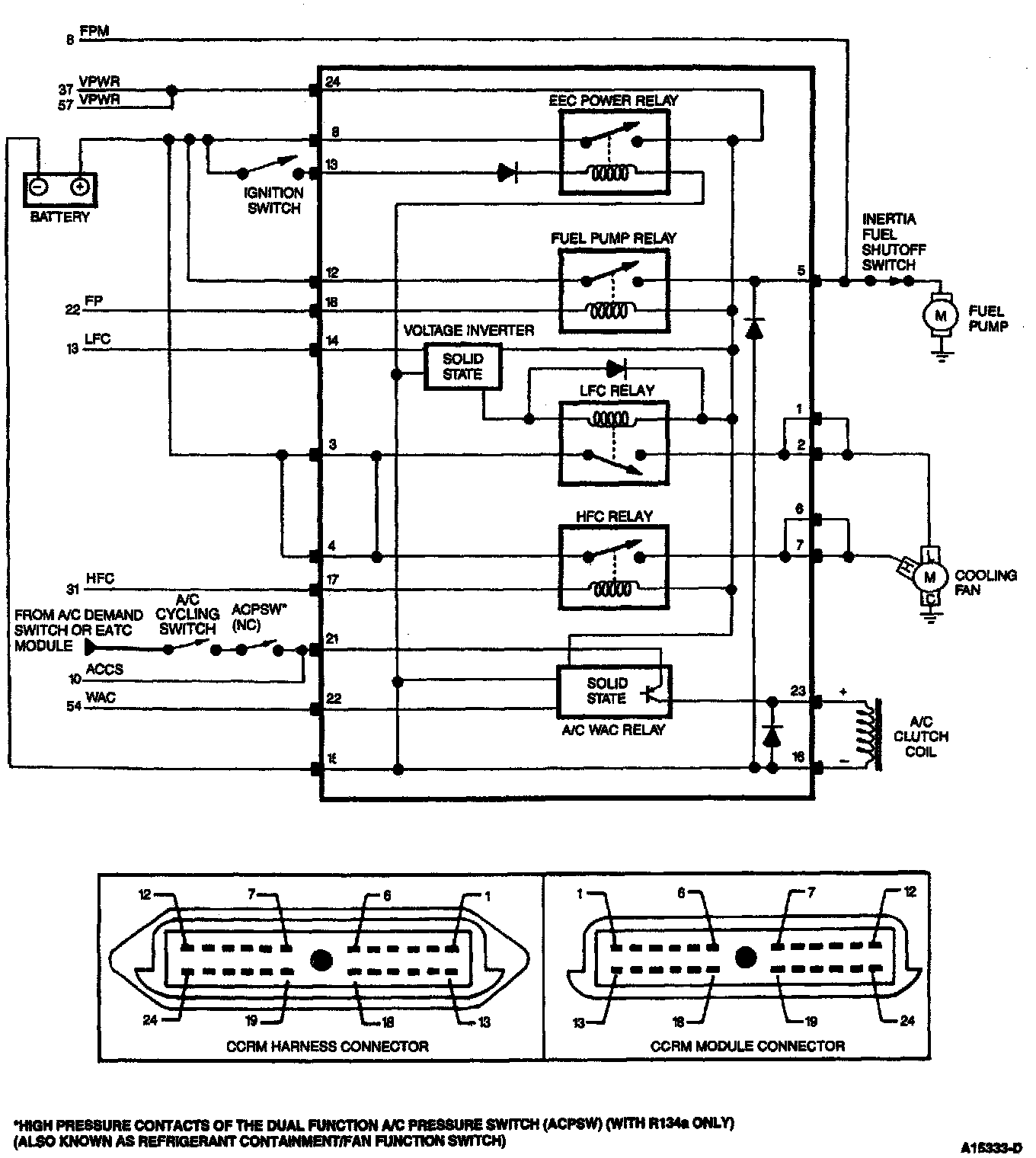

Integrated Control Relay Module
Integrated Control Relay Module

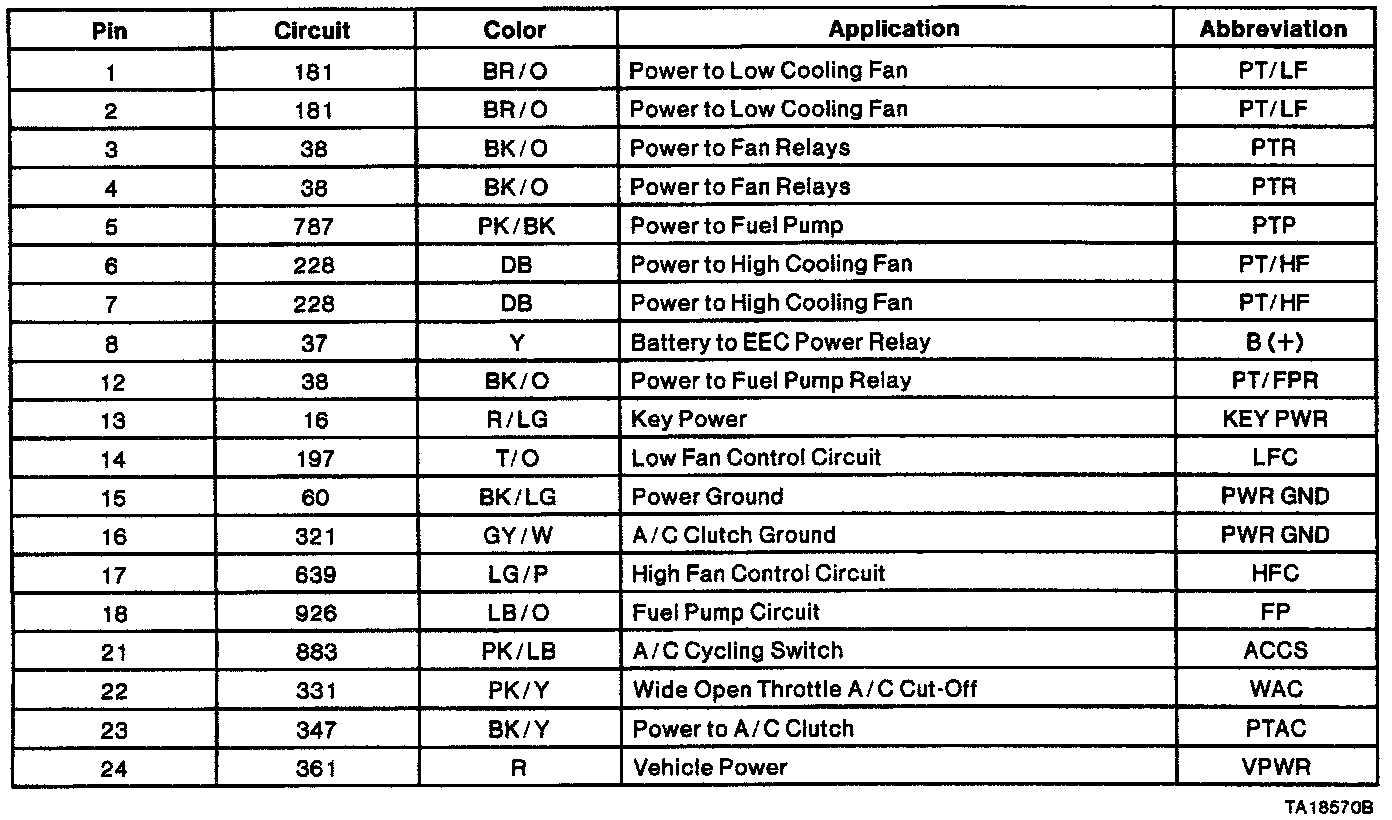

Constant Control Relay Module:
Constant Control Relay Module:
