Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

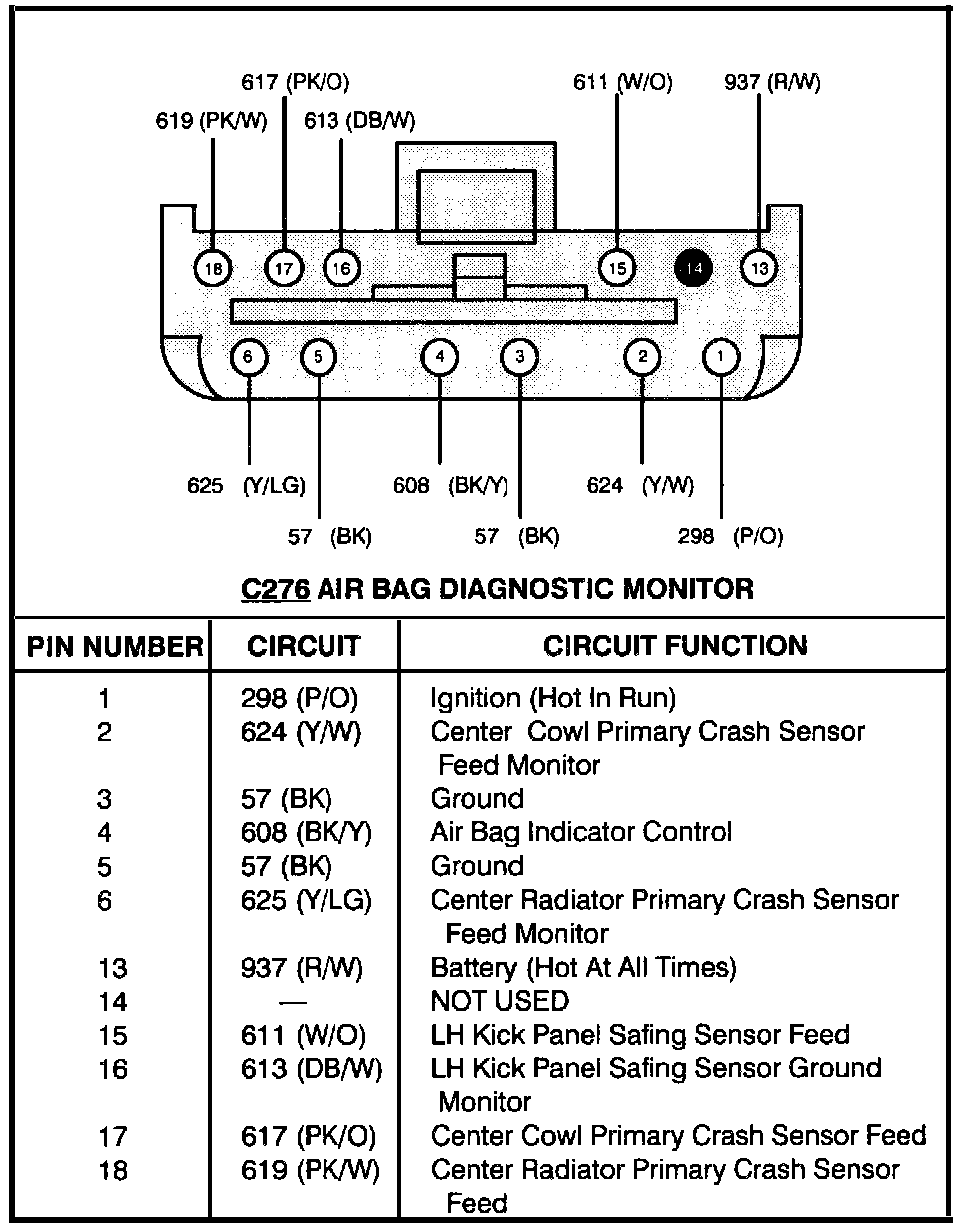

Air Bag Diagnostic Monitor (C276):

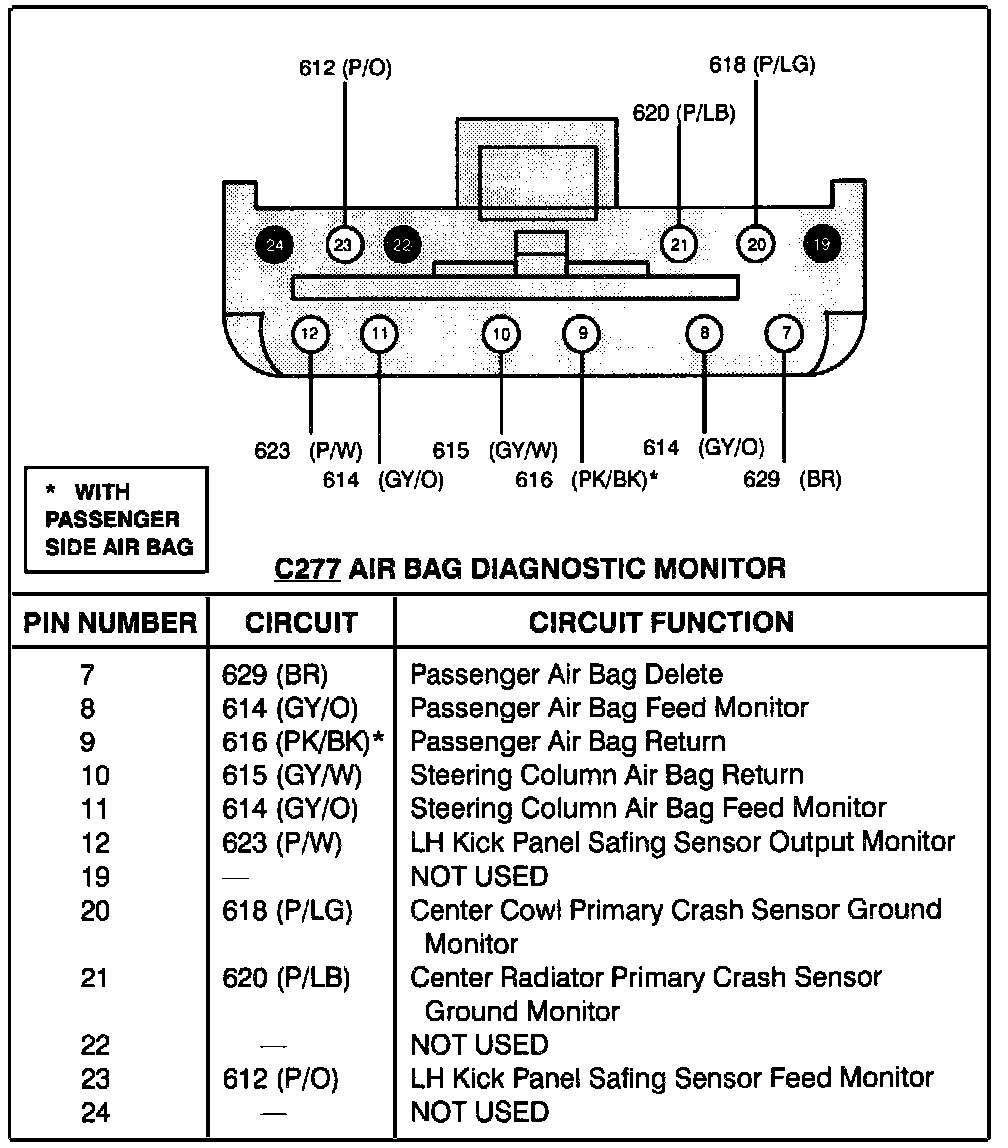

Air Bag Diagnostic Monitor (C277):
