Home >> Ford >> 1995 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams

Cruise Control Module: Diagrams

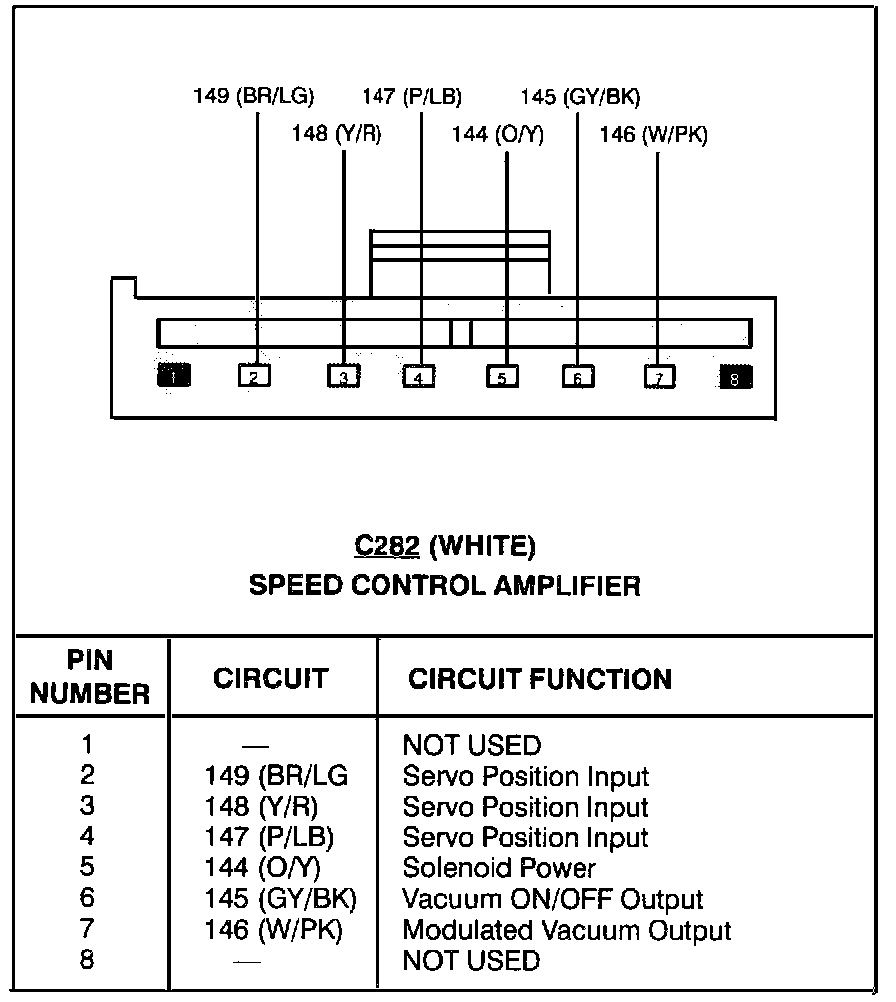

Speed Control Amplifier (C282):

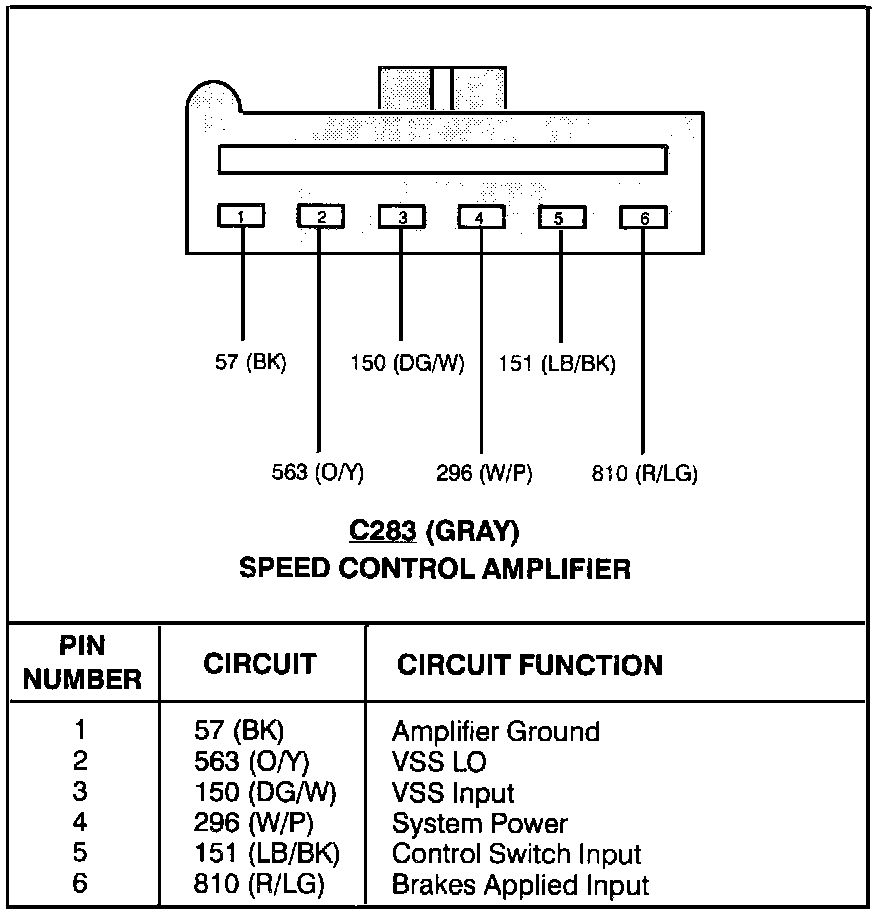

Speed Control Amplifier (C283):
