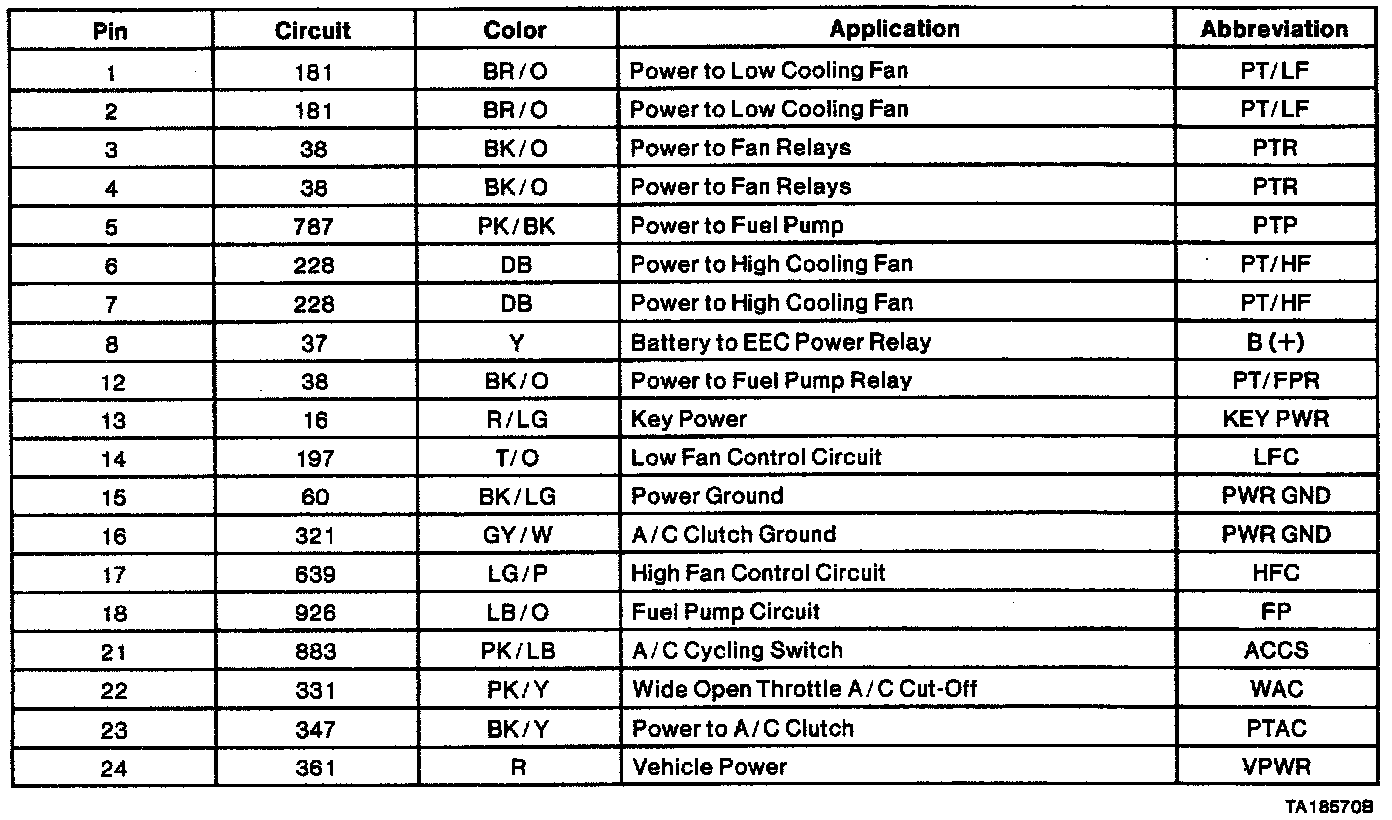

Integrated Control Relay Module
Integrated Control Relay Module

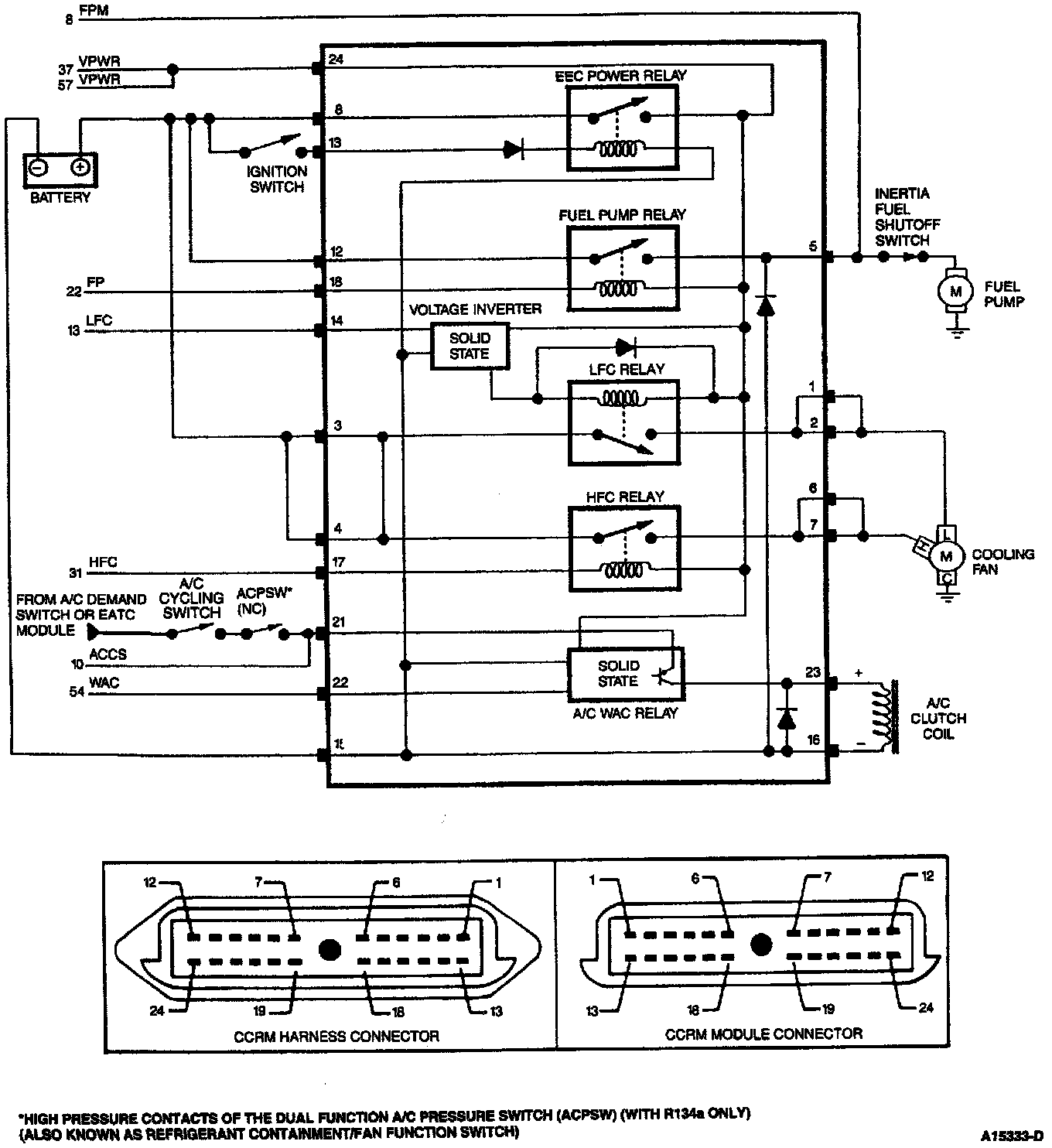

Constant Control Relay Module:
Constant Control Relay Module:
