Oscilloscope Patterns and Waveforms

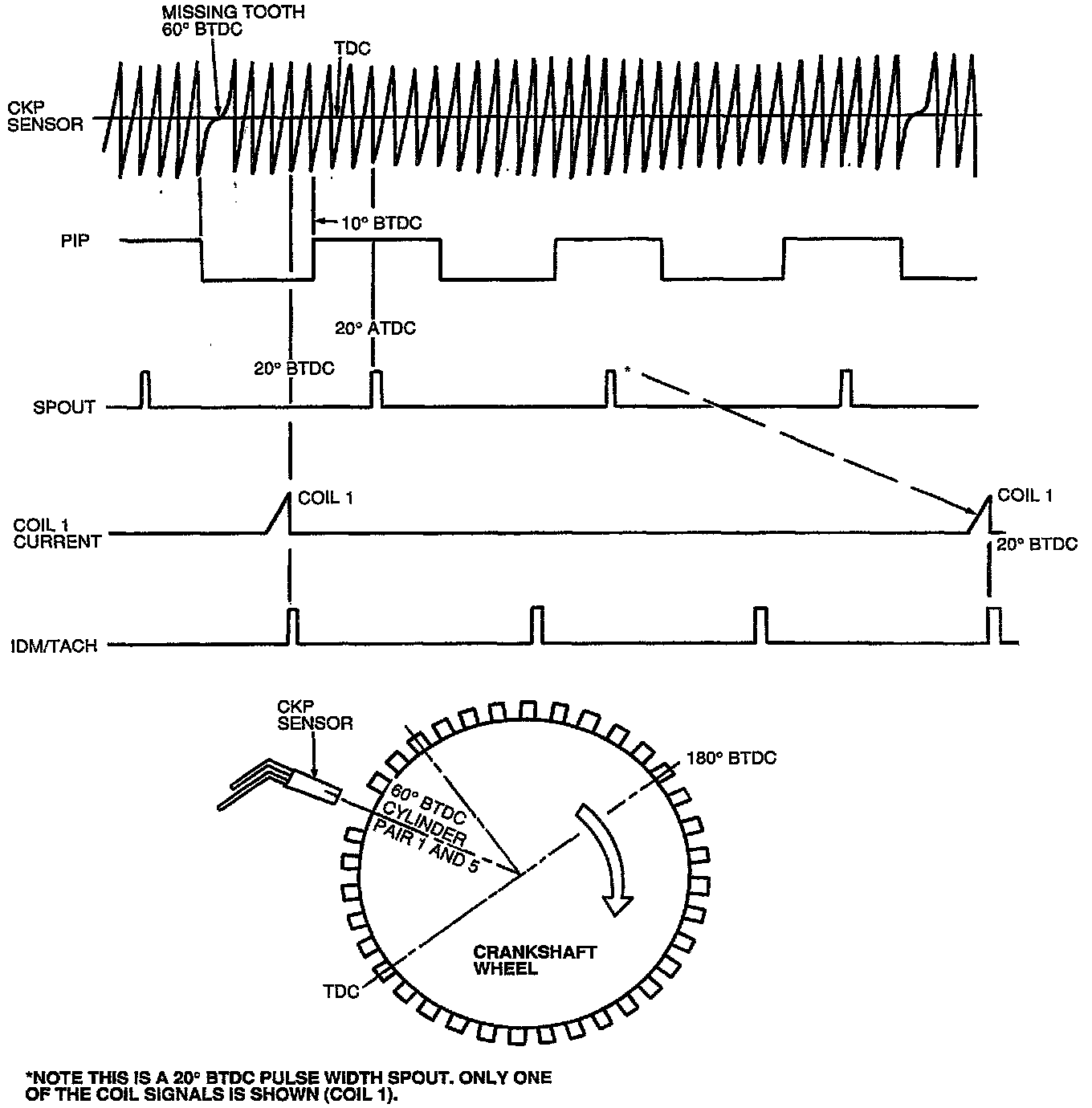

3.0L Flexible Fuel EI Waveforms:
With only one coil signal shown.
Timing Diagram With Three Coil Signals:
With three coil signals shown.
