Home >> Ford >> 1995 >> Taurus V6-182 3.0L FF >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

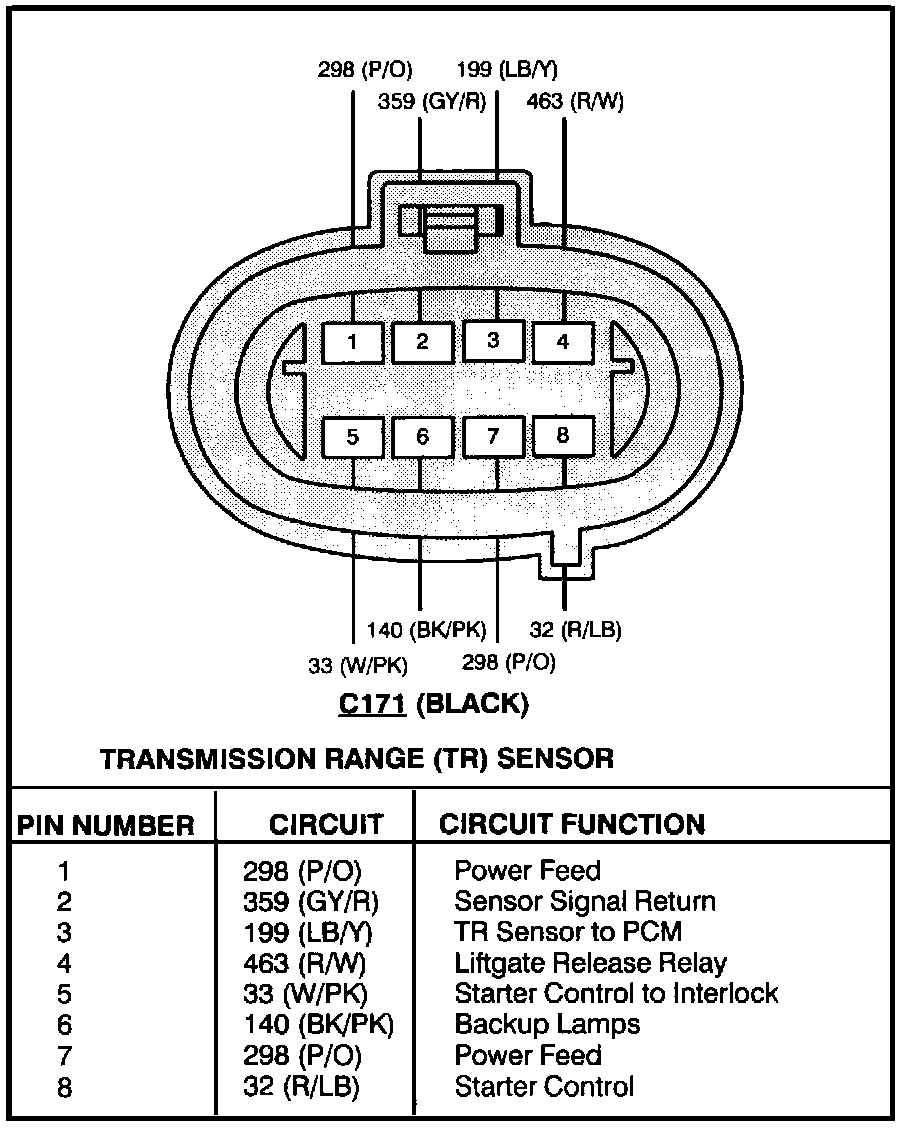

Transmission Range Sensor:



Transmission Range Sensor (With AX4N/AX4S Transmission):

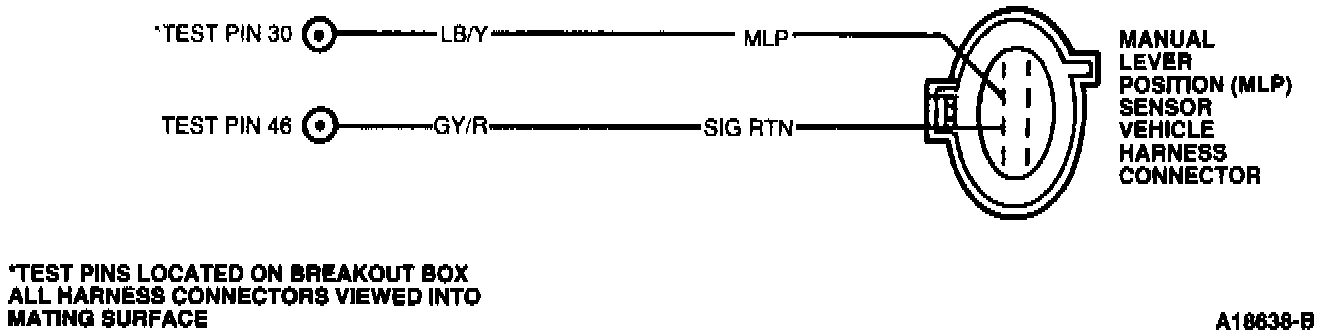

Testing Schematic:
