Cylinder Identification Sensor: Locations

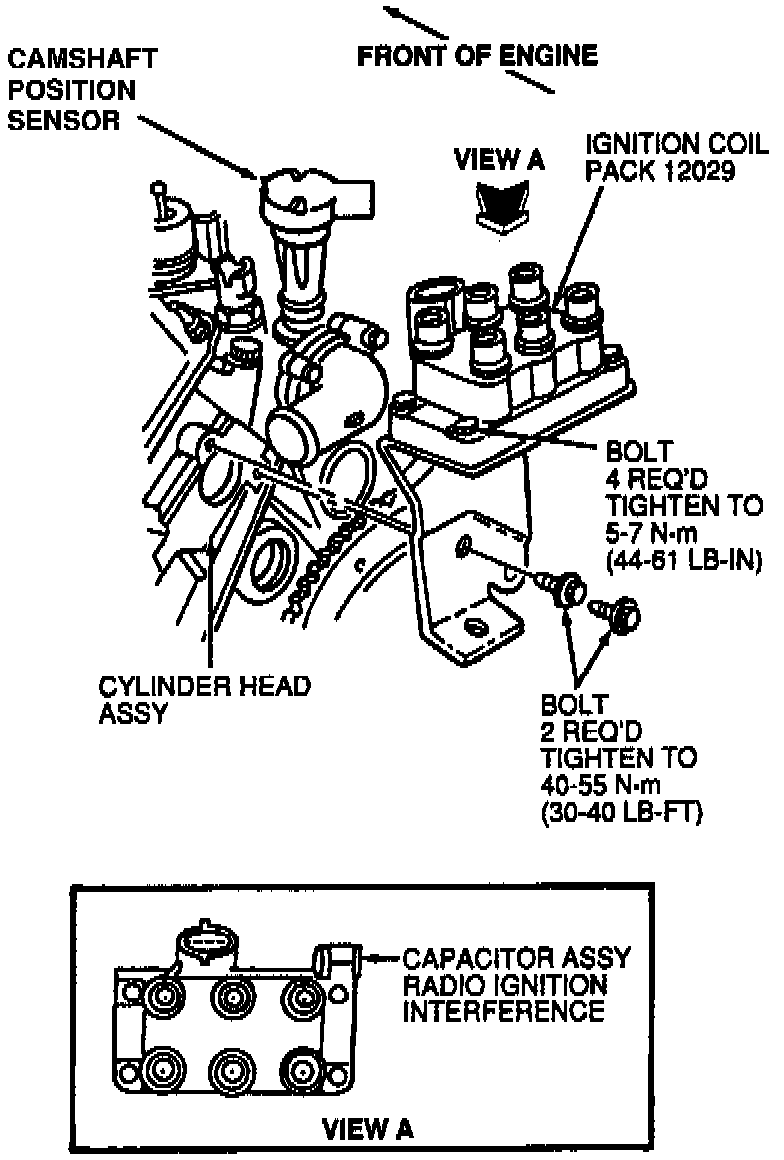

Ignition Coil And Camshaft Position Sensor:

Engine View:

The Cylinder Identification (CID) Sensor/Camshaft Position (CMP) Sensor, (C178), is located on the right hand rear of the engine.
