Ford
>>
1995
>>
Ranger 4WD V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Control Module, Transfer Case
Control Module, Transfer Case

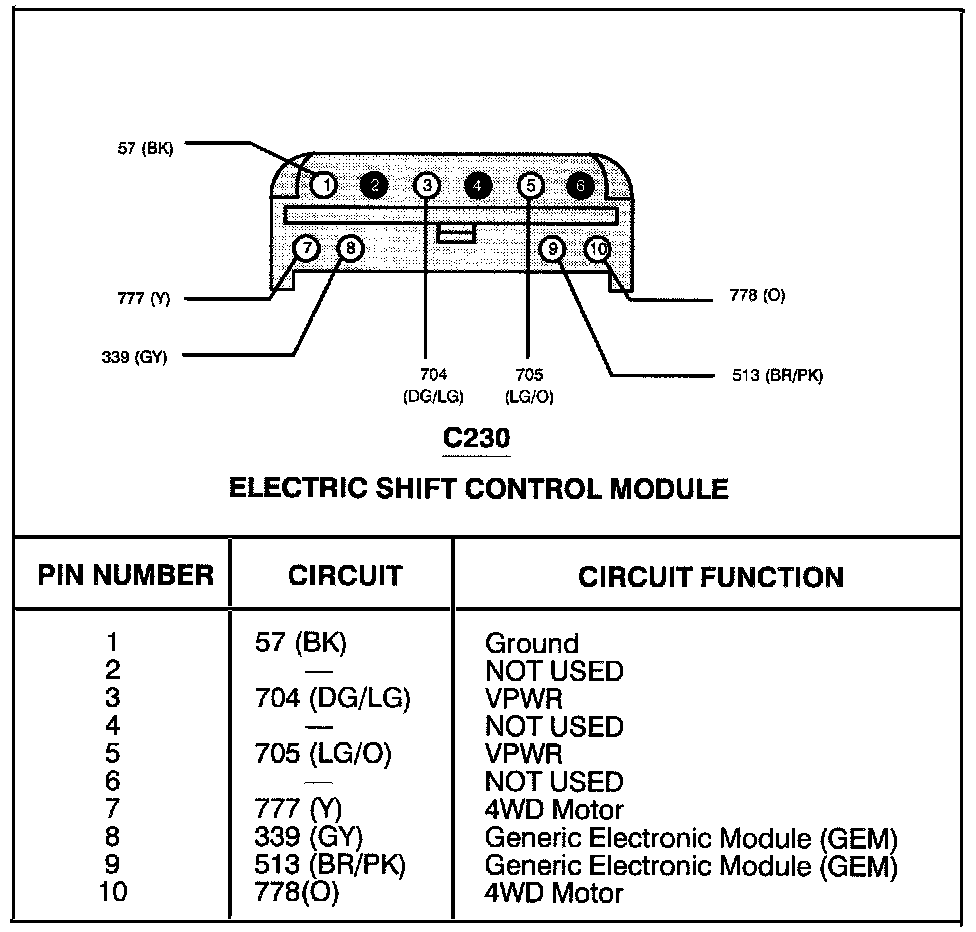

Electric Shift Control Module C230:
