Home >> Ford >> 1995 >> Ranger 4WD V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Generic Electronic Module

Generic Electronic Module

Generic Electronic Module (C221):




Generic Electronic Module (C222):

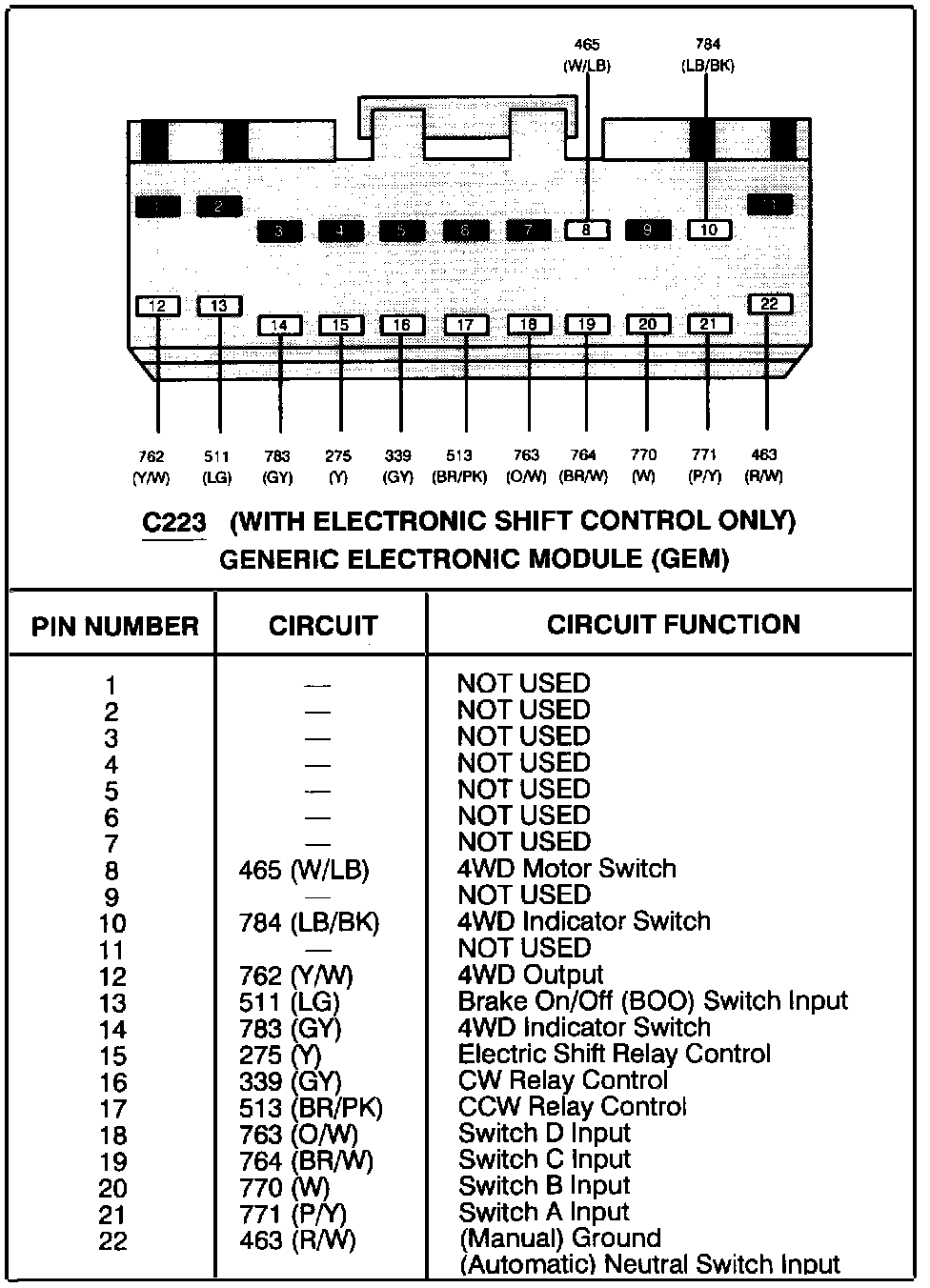

Generic Electronic Module (With Electronic Shift Control Only) (C223):




Generic Electronic Module (C224):
