Main Relay (Computer/Fuel System): Locations

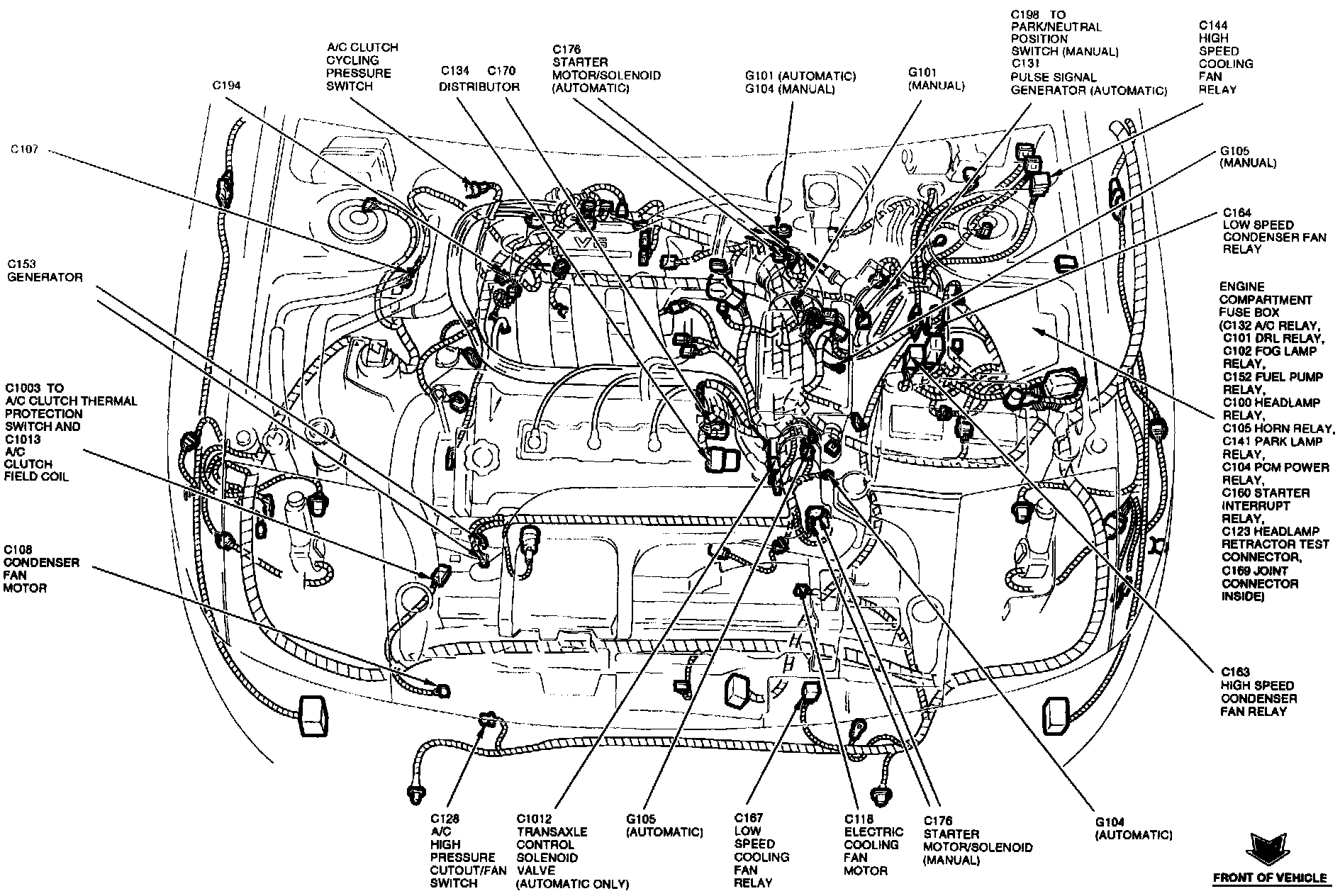

Engine View:

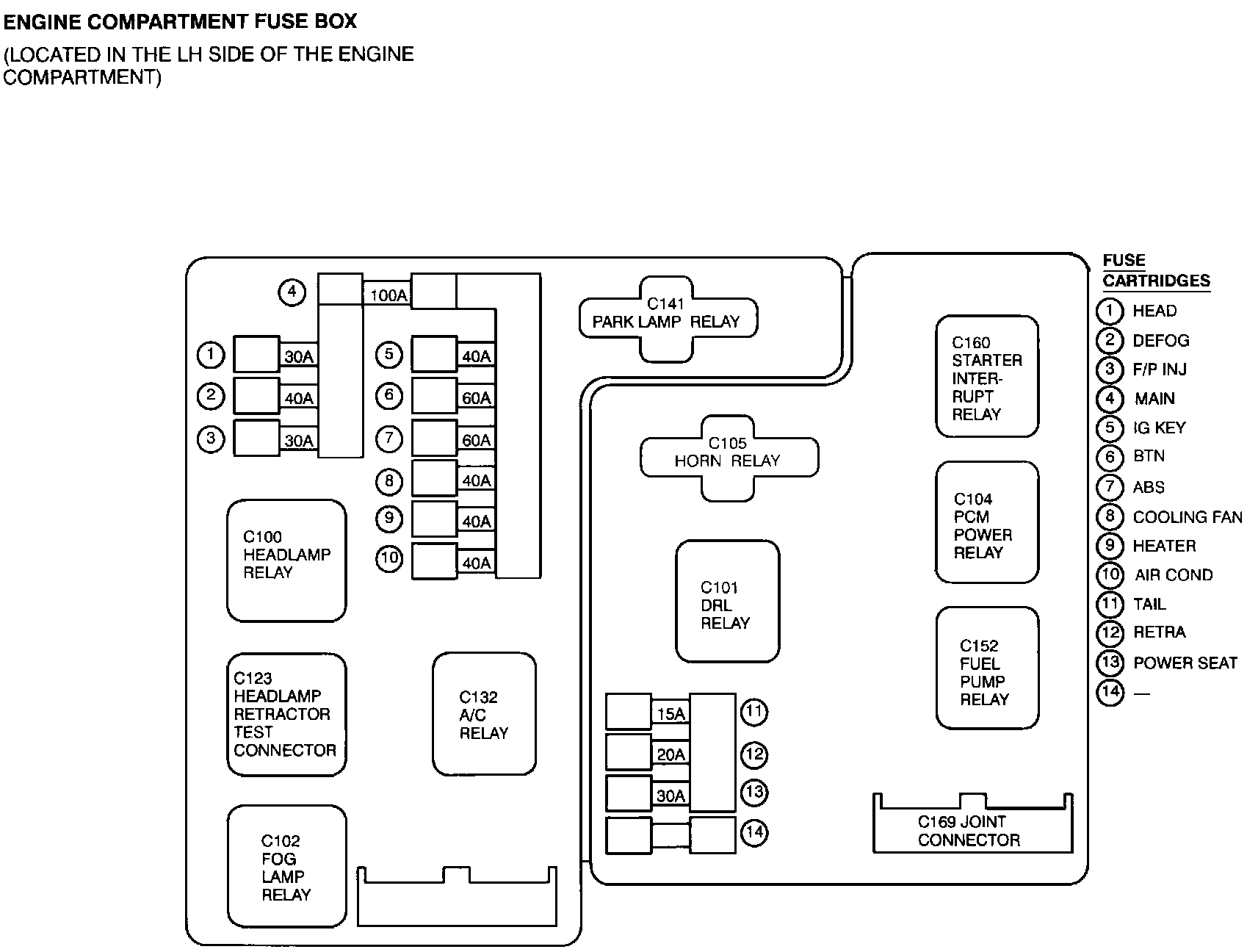

Engine Compartment Fuse Box (Part 1 Of 2):

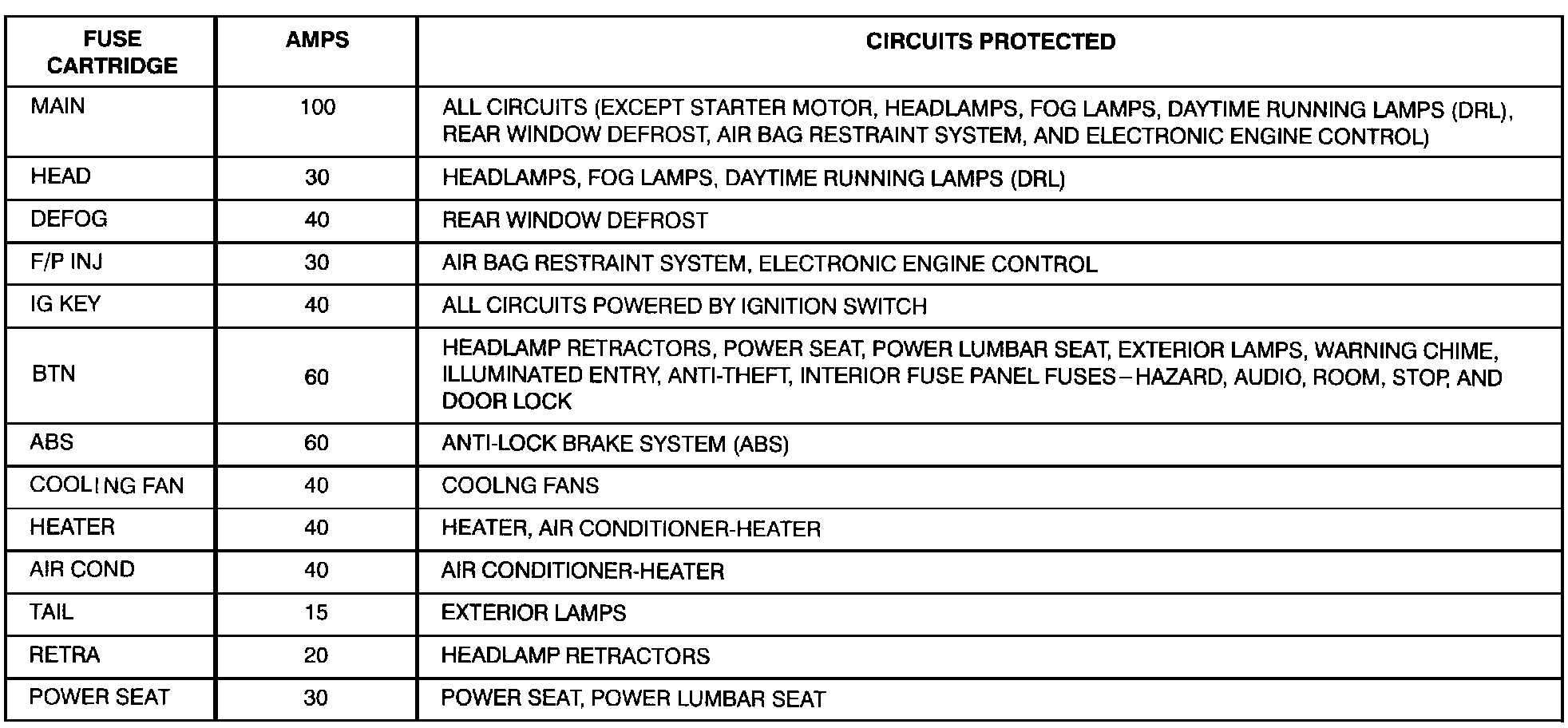

Engine Compartment Fuse Box (Part 2 Of 2):

The PCM Power Relay is located at the LH side of the engine compartment, in engine compartment fuse box.
