Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Automatic Transmission
With Automatic Transmission

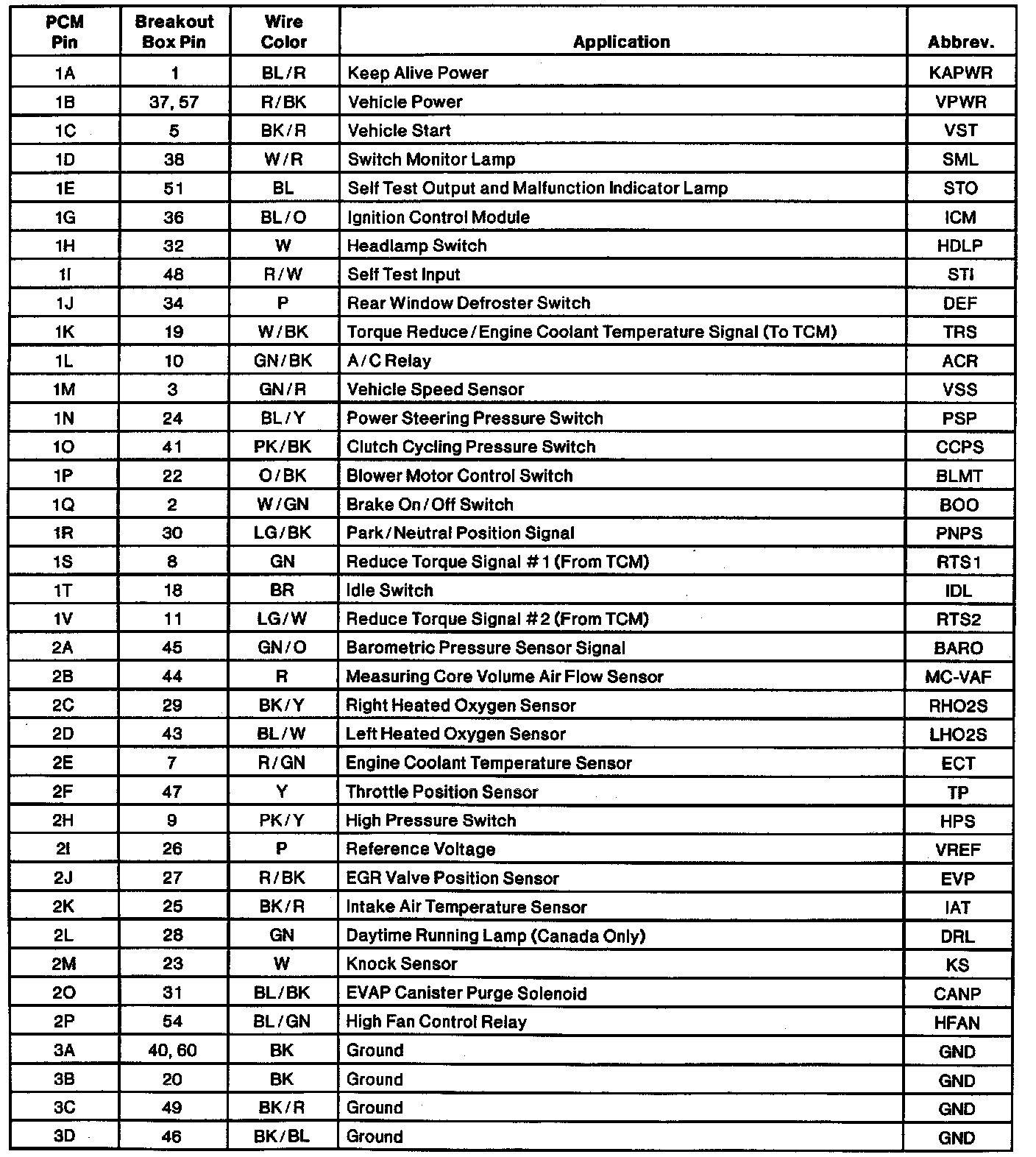

Engine Electrical Connector Pin Usage:

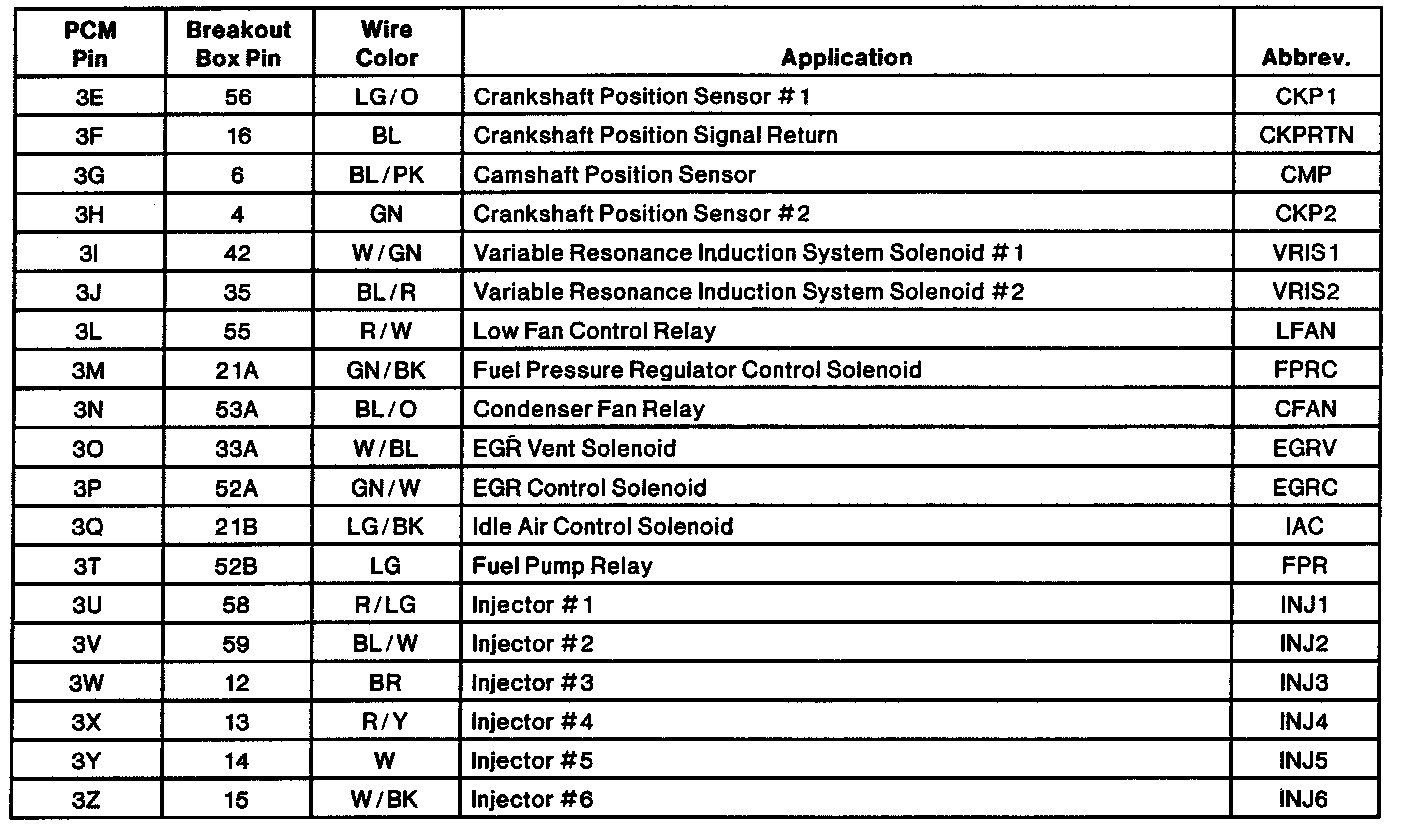

Engine Electrical Connector Pin Usage:
