Home >> Ford >> 1995 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

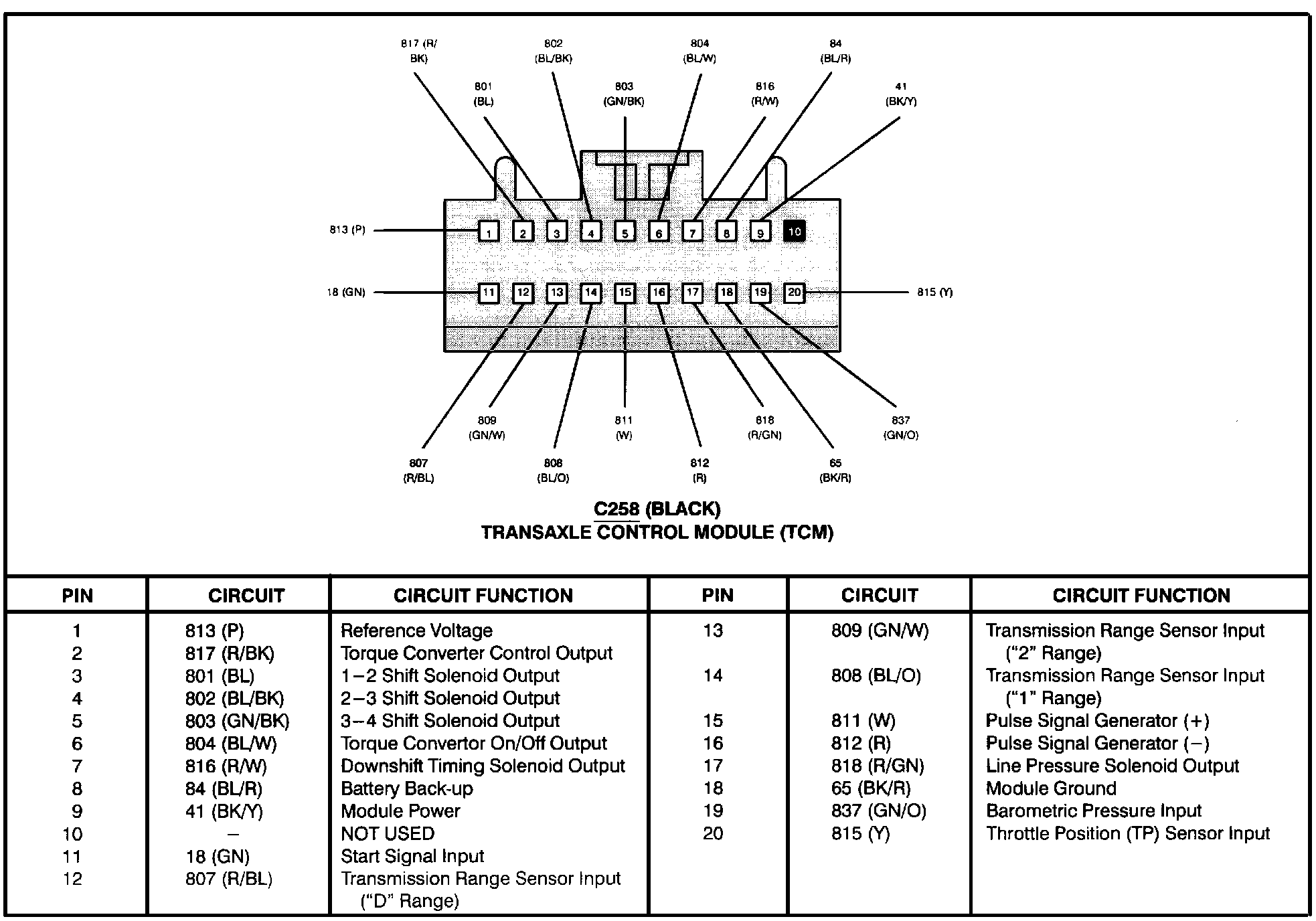

Transaxle Control Module (C258):

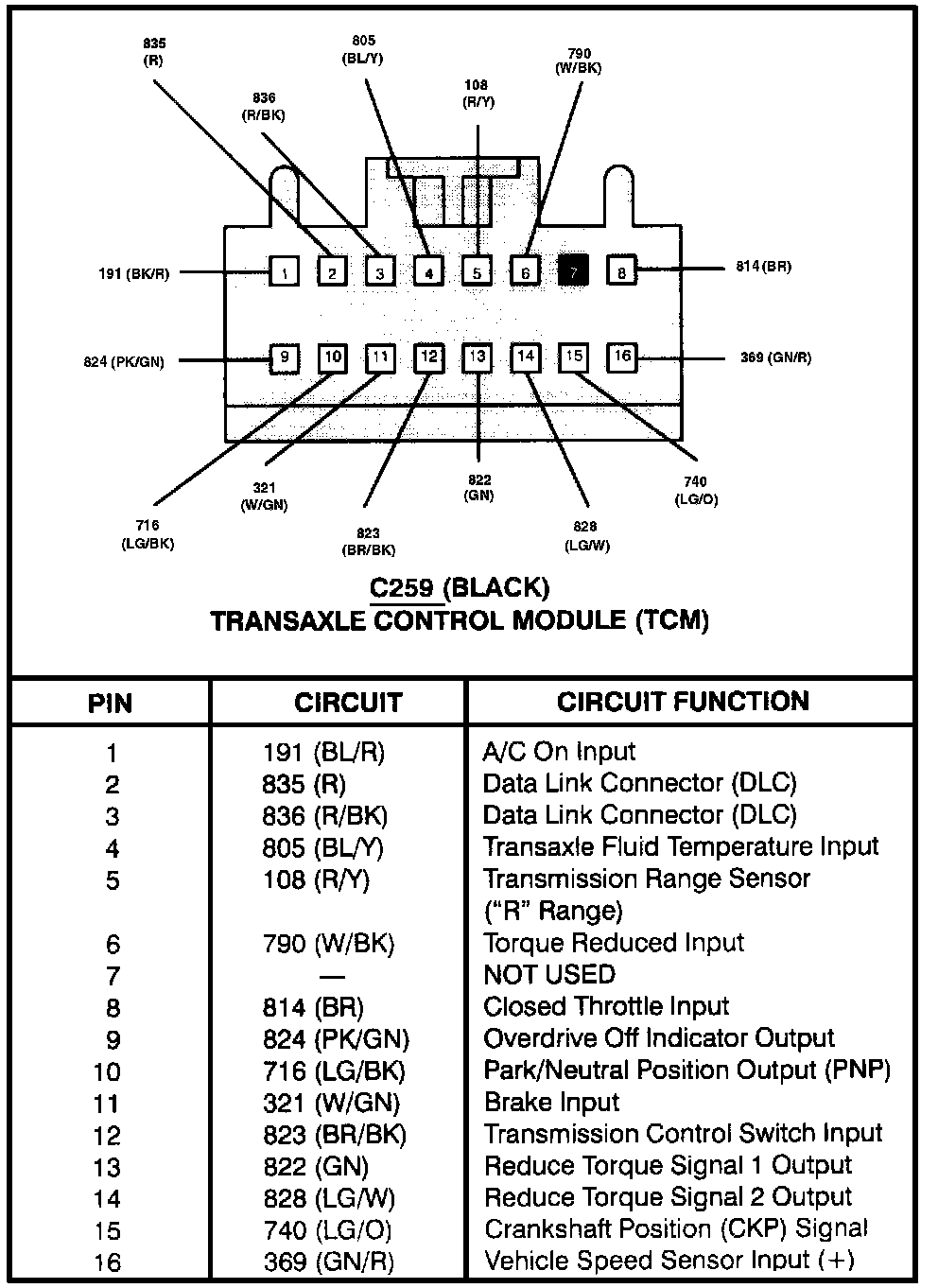

Transaxle Control Module (C259):
