Intake Manifold

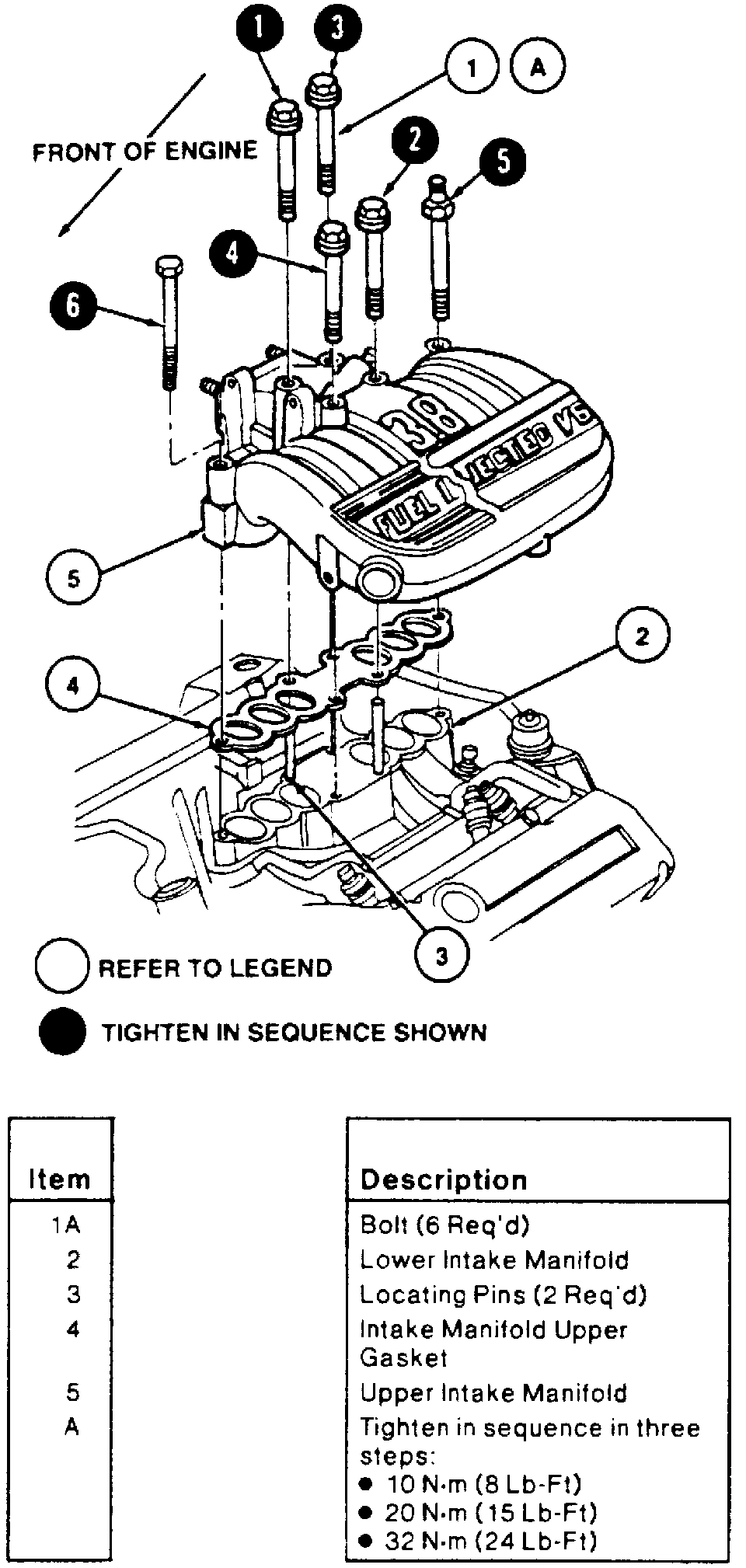

Upper Intake Manifold Bolt Tightening Sequence:

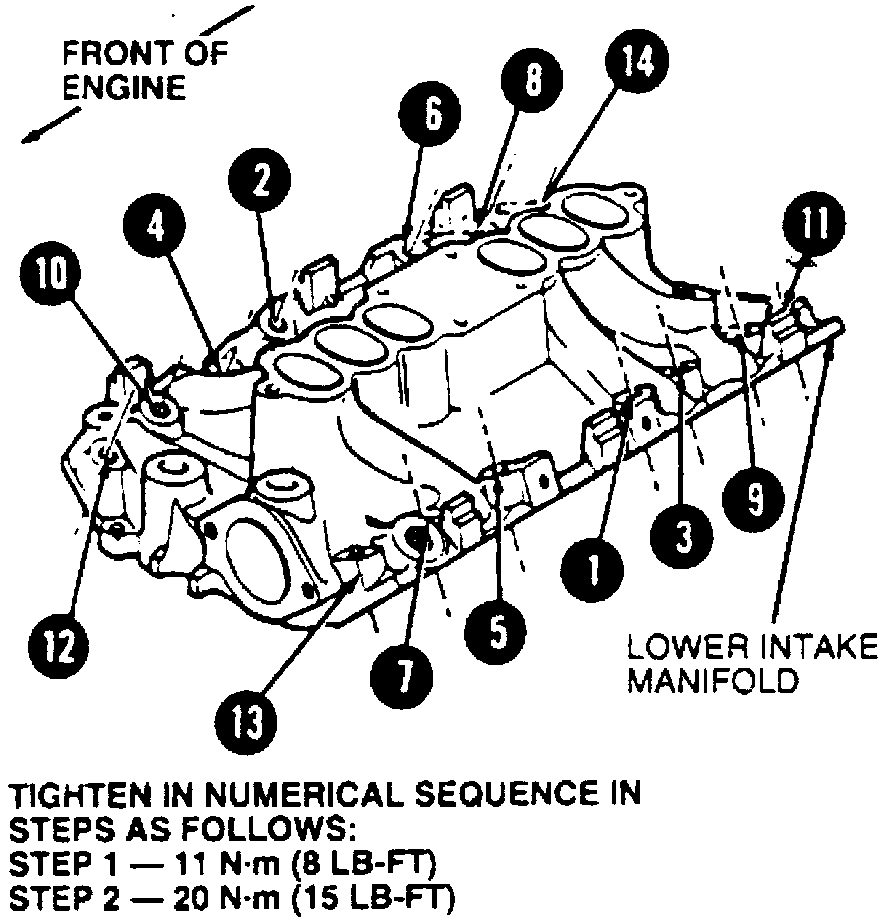

Lower Intake Manifold Bolt Tightening Sequence:
